TW Series
Astrowave Pool
Durable Swimming Pool Jet Pump
The TW Series Pool Centrifugal Pump is engineered for high-speed operation and high-head performance in demanding aquatic environments. Utilizing advanced engineering materials and fine workmanship, this pool jet pump provides a robust solution for maintaining clear water and smooth flow across various water areas. Designed with a focus on operational economy, the system features a high-quality motor that delivers more power while maintaining less power use. This energy efficient pool pump is built with a high reinforced plastic body to ensure a longer service life and resistance to typical wear in industrial settings. Reliability is central to the design, which incorporates an integral structure handle for convenient installation and an IP55 protection rating. As a primary water circulation pump, it features a self-priming function with a maximum suction of 1.5m, facilitating consistent performance in filtration systems.

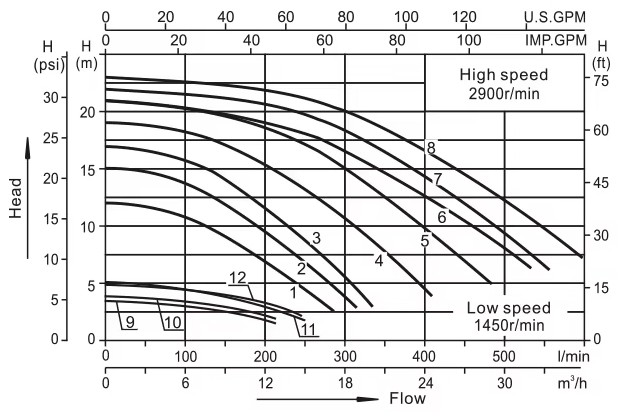

| Model | Qmax (L/min) | Hmax (m) | Power(P1) kW / HP | Voltage (V) | Frequency (Hz) | Electric Current (A) | Fitting Size (mm) | Curves | G.W (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| TW075 | 285 | 12 | 0.55 / 0.75 | 220-240 | 50 | 3.2 | 60.3 / 63 | 1 | 14.6 |
| TW100 | 315 | 15 | 0.75 / 1.0 | 220-240 | 50 | 3.8 | 60.3 / 63 | 2 | 15.5 |
| TW120 | 335 | 17 | 0.9 / 1.2 | 220-240 | 50 | 4.6 | 60.3 / 63 | 3 | 16.3 |
| TW150 | 400 | 19 | 1.1 / 1.5 | 220-240 | 50 | 5.2 | 60.3 / 63 | 4 | 17.3 |
| TW200 | 480 | 21 | 1.5 / 2.0 | 220-240 | 50 | 7 | 60.3 / 63 | 5 | 18.3 |
| TW300 | 550 | 22 | 2.2 / 3.0 | 220-240 | 50 | 10 | 60.3 / 63 | 7 | 21.6 |
The motor is built with IP55 protection and Class F insulation, ensuring high-standard product design and durability in humid or wet environments.
By utilizing a high-efficiency pool pump design, the TW series achieves less power use without compromising on the high-speed flow required for maintaining clear water.
The integrated self-priming function allows for a maximum suction of 1.5m, ensuring the high-performance swimming pool pump can be installed effectively above the water level.
Yes, both the inlet and outlet ports are reinforced with a stainless steel ring to prevent stress cracking and ensure a secure, leak-proof fit during long-term operation.
The unit features an integral structure handle designed for convenient manual handling and simplified installation into existing water circulation systems.
