ATP Series
Astrowave Pool
Robust Pumps for Pools
The ATP Series water pump is designed for residential and commercial swimming pool circulation systems, combining durable construction with stable hydraulic performance. Its engineered pump housing and integrated debris strainer support continuous filtration cycles, making it a reliable pool filteration pump used in pool water treatment installations. A transparent ring-lock lid allows quick access to the internal strainer basket, simplifying inspection and routine cleaning without complex disassembly. The pump can also be paired with an optional control module that enables automated scheduling, allowing the system to operate as a pool pump with timer for programmed filtration cycles. Designed for stable hydraulic operation and efficient water transfer, the pump supports consistent circulation across filtration equipment and piping networks. Its structural configuration and motor design allow it to function effectively as a hydraulic pool pump within swimming pool filtration and water circulation systems.

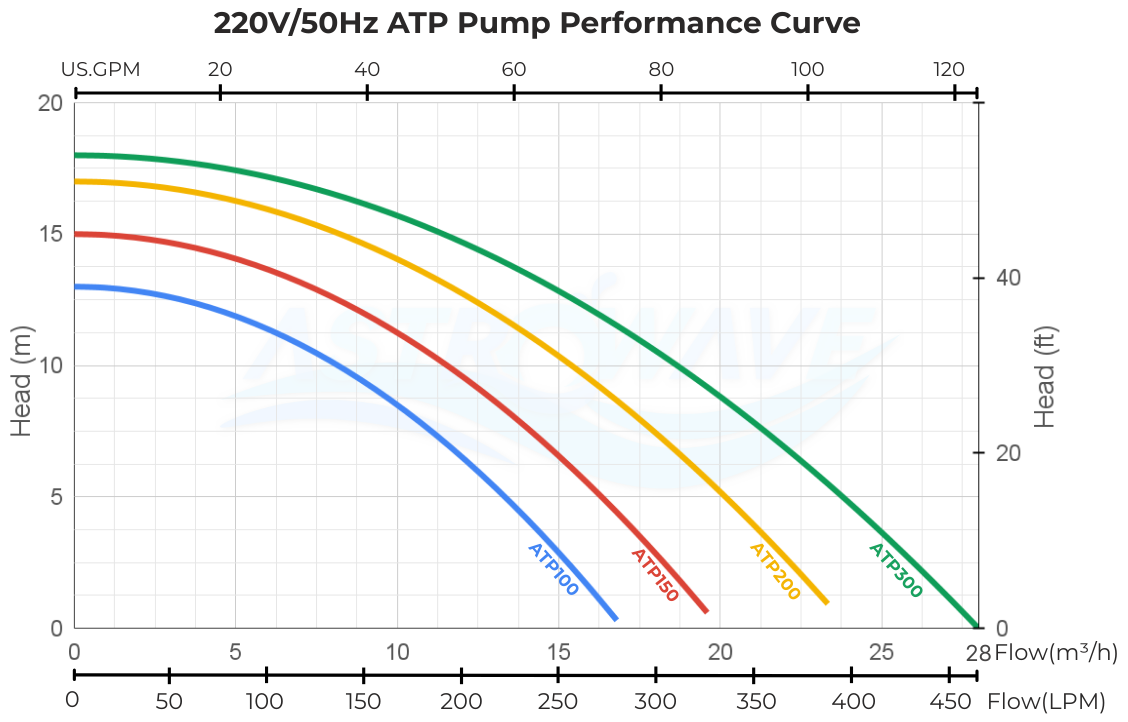

| Model | Power (KW/HP) | Voltage | Max.Flow Rate | Max. Head | |||
|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m | ft | |||
| ATP100 | 0.75 / 1.0 | 110V/220V | 17 | 283 | 75 | 13 | 43 |
| ATP150 | 1.1 / 1.5 | 110V/220V | 20 | 333 | 88 | 15 | 49 |
| ATP200 | 1.5 / 2.0 | 110V/220V/380V | 24 | 400 | 106 | 17 | 56 |
| ATP300 | 2.2 / 3.0 | 110V/220V/380V | 28 | 467 | 123 | 18 | 59 |
Yes. The ATP Series is designed for both residential and commercial pool circulation systems, supporting stable water movement through filtration equipment.

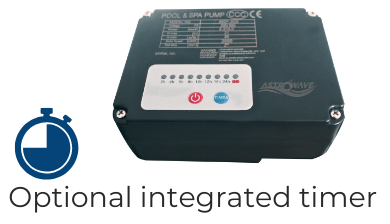

The pump can be paired with an optional controller, allowing it to operate as a pool pump with timer and automatically stop filtration cycles.
Yes. The motor operates at fixed rotational speeds depending on the electrical frequency, which is typical for a single speed pool pump used in standard pool filtration systems.
The pump includes an integrated debris basket with a transparent lid, allowing quick inspection and removal of leaves or particles collected during operation.
Yes. The motor includes built-in thermal protection and an external heat sink to help maintain safe operating temperatures.
The pump is commonly used in residential pools, resort pools, and other filtration systems where stable water circulation is required.
