AWI
Astrowave Pool
For High Performance.

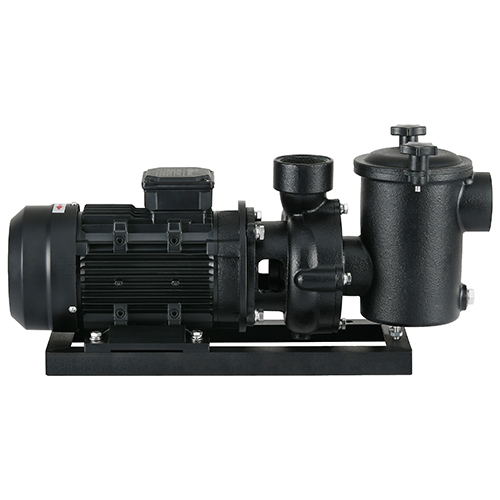

The AWI Series High-Capacity Cast Iron Pump is engineered to deliver robust performance and durability for demanding aquatic environments. Constructed with a solid cast iron body, this industrial-grade commercial pool pump provides exceptional structural integrity and long-term reliability for continuous operation. Designed with optimized internal hydraulics, this pool circulation pump maximizes water injection rates while maintaining stable operation. The integration of an asynchronous two-pole motor ensures consistent mechanical power transfer, effectively managing high-flow fluid handling requirements in large-scale facilities. Maintenance efficiency is prioritized through a large-capacity pre-filter system equipped with a stainless steel filter basket. As a comprehensive pool filtration pump, it significantly reduces cleaning frequency and downtime, featuring a bolt-type lid that allows technicians straightforward access during routine infrastructure servicing.This pool pump is tailored for Pool Equipment B2B dealers seeking heavy-duty Water Treatment solutions.
| Features | |
|---|---|
| Pump Strainer Housing Material: | Cast Iron |
| Speed Control Type: | Single Speed |
| Dual Voltage Supported: | NO |
| Integrated Timer Supported: | NO |
| Motor Casing: | Premium Die-Cast Aluminum Alloy with Enhanced Heat Dissipation |
| Motor Winding: | High-Conductivity Copper Windings |

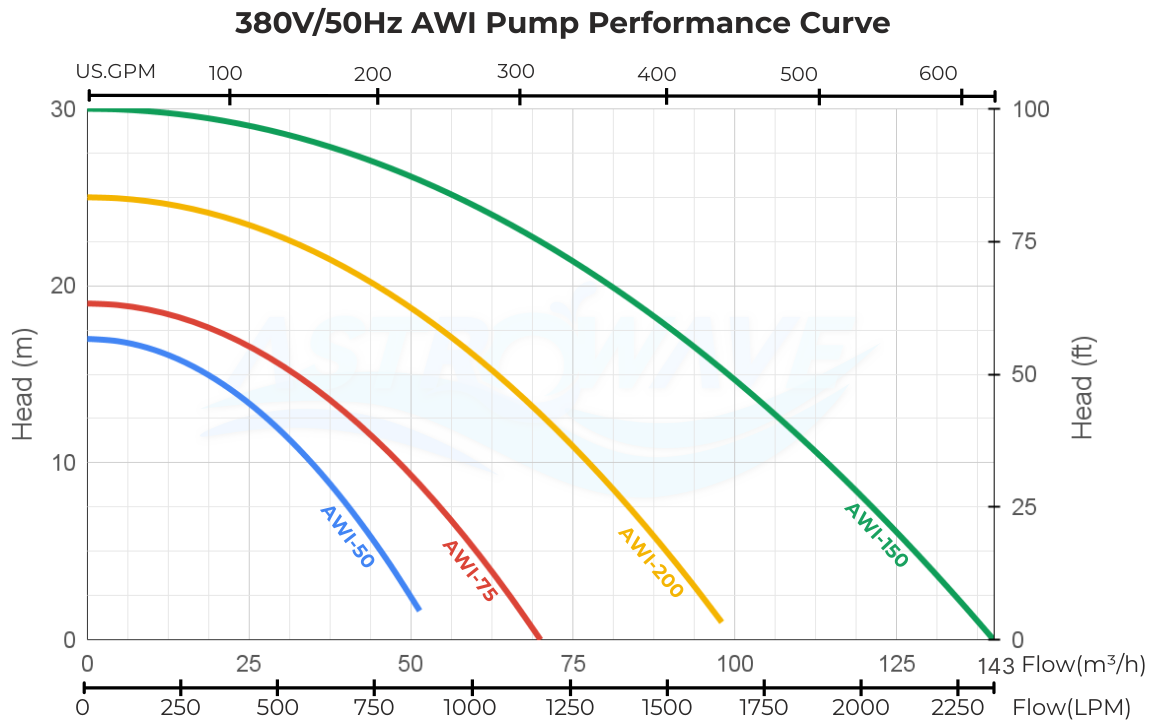

| Model | Power (KW/HP) | Voltage | Max.Flow Rate | Max. Head | Inlet | Outlet | |||
|---|---|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m | ft | |||||
| AWI-50 | 3.6 / 5.0 | 380V | 56 | 933 | 246 | 18 | 59 | 3" / 90mm | 2.5" / 75mm |
| AWI-75 | 5.6 / 7.5 | 380V | 73 | 1217 | 321 | 19 | 62 | 3" / 90mm | 2.5" / 75mm |
| AWI-100 | 7.5 / 10 | 380V | 102 | 1700 | 449 | 25 | 82 | 4" / 110mm | 3" / 90mm |
| AWI-150 | 11.2 / 15 | 380V | 143 | 2383 | 629 | 30 | 98 | 4" / 110mm | 3" / 90mm |
We are a 100% direct pool product China manufacturer with our own production facilities and strict in-house quality control system. Customers are always welcome to visit our factory, and we also support real-time workshop tours via WhatsApp for convenient remote inspection.
Yes, as an experienced swimming pool equipment manufacturer, we provide full OEM and ODM services for bulk orders. Customization options include product color, branding/logo, and carton packaging design. As a reliable pool pump and filter manufacturer, we ensure flexible production and consistent quality to meet different market requirements.
Astrowave Pool specializes in a comprehensive range of pool filtration and circulation systems. Our core product lines include pool sand filters such as gelcoat fiberglass sand filters and bobbin-wound fiberglass media filters for pool filtration, as well as hydraulic pool pumps including inverter pool pumps, smart pool pumps, dual speed pool pumps, and dual voltage pool pumps. We also produce underwater pool lighting and plastic pool fittings such as skimmers and hydrotherapy jets, supporting a complete pool system solution.With over 22 years of pool product export experience, we are a reliable pool equipment supplier trusted by pool industry buyers worldwide including the Middle East, India, Southeast Asia, Africa, the United States, Mexico, and Southern Europe.
The system is designed to safely process fluids up to a maximum water temperature of 60°C, supported by an external heat sink and Class B motor insulation.
Yes, due to its maximum flow rate of 143 m³/h and robust hydraulic design, it can function effectively as an irrigation pump for large-scale watering systems.

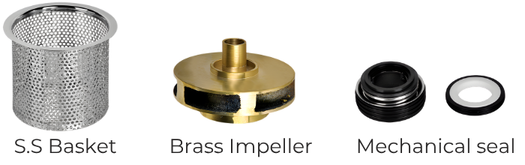

This metal water pump features a solid cast iron body, a durable brass impeller, a stainless steel filter basket, and a durable (optional SS316) shaft and bearing for maximum industrial resilience.
The unit features a large-capacity pre-filter with a bolt-type lid, which minimizes debris accumulation in the main chamber and significantly reduces the required cleaning frequency for operational technicians.
The asynchronous two-pole motor operates on a standard 380V power supply and provides fixed rotational speeds of 2850 rpm at 50Hz and 3450 rpm at 60Hz.
