GFS Series Gel-Coated Fiberglass Sand Filter - Ring Lock Type Fiberglass Filter for Pools & Spas

Name: GFS Series Gel-Coated Fiberglass Sand Filter - Ring Lock Type Fiberglass Filter for Pools & Spas
Brand: Astrowave Pool
Rating: 5.0 (57 reviews)

Engineered for durability and ease of use, Astrowave Pool GFS series Gel-Coated Fiberglass Filter sets a new standard in pool filtration technology. The centerpiece is its precision-engineered circular lock lid, which ensures a perfect seal and allows for fast, tool-free removal. This design drastically reduces maintenance downtime, letting you spend less time on equipment and more time enjoying your pool. Sleek, corrosion-resistant, and incredibly easy to service.

Availability:

Quantity:



Inquire Add to Basket

Model:
GFS Series
Brand:
Astrowave Pool

Product Description

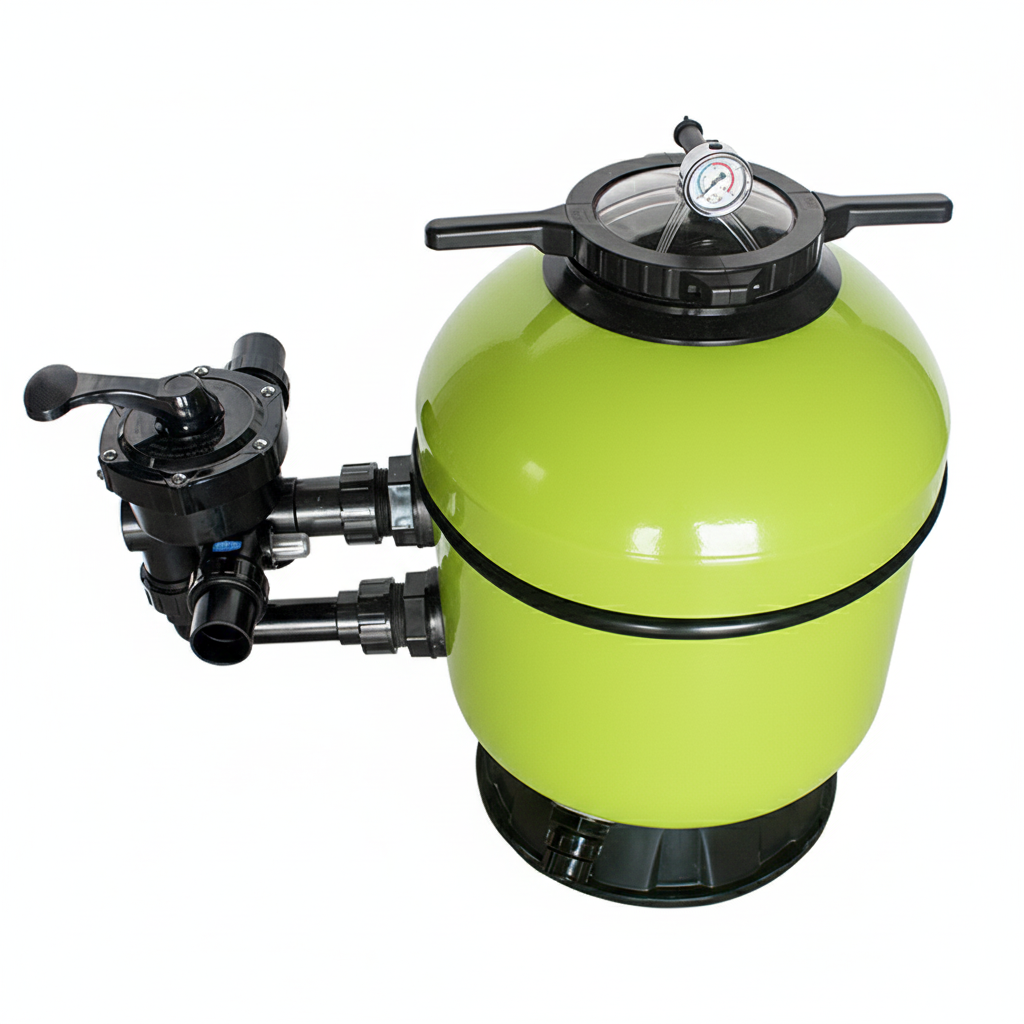

GFS Series Gel-Coated Fiberglass Sand Filter

Upgraded from SGF Series Gel-Coated Side Mount Pool Filter ,The GFS Series sand filters represent the next generation of pool filtration technology. Utilizing a premium gel-coated fiberglass process, these filters are engineered for enhanced durability and long-term reliability in various aquatic environments. Whether for a residential pool, a luxury clubhouse, or a professional spa, our fiberglass filters deliver efficient, simple, and reliable performance.

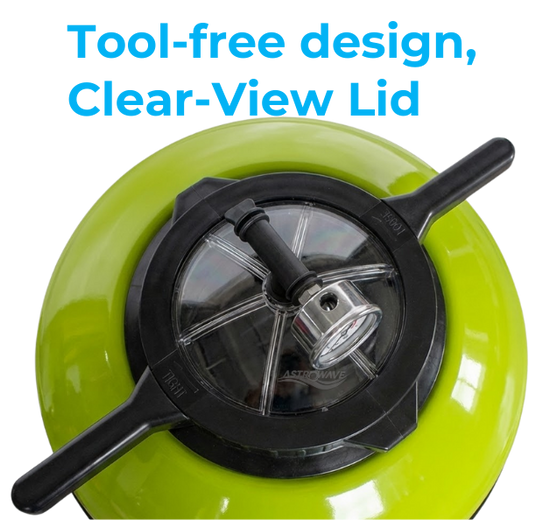

clear-view sand filter

sand filter

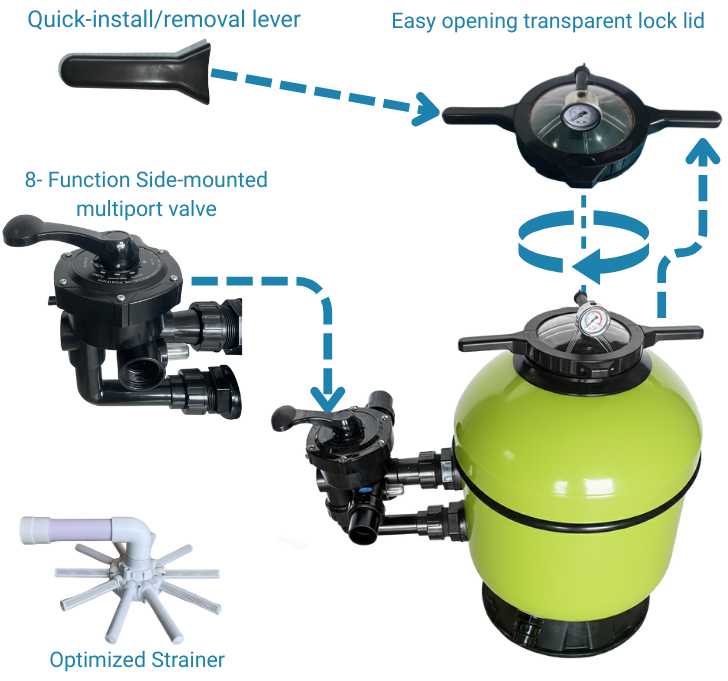

tool free pool filter

Key Features

Gel-Coated Fiberglass Body: Superior corrosion resistance and UV protection for an extended lifespan.
Monoblock Threaded Lock: Features a circular lock lid design for easy, tool-free removal and maintenance.
Transparent Cover: Specially designed clear lid allows for easy internal inspection and sand bed observation.

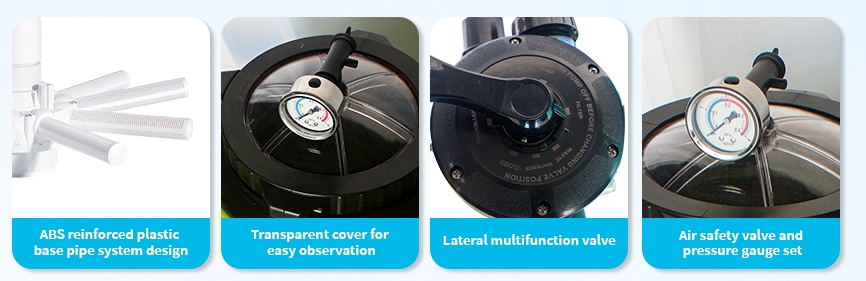

Advanced Internals: Equipped with an ABS reinforced plastic base pipe system and a lateral multi-function valve for optimal flow.
Safety First: Includes an integrated air safety valve and high-precision pressure gauge set.

sand filter

8 funtion multiport valve

Technical Specifications

Main Material	Gel-coated Glass Fiber
Factory Testing Pressure	4.0 bar / 58 psi
Maximum Working Pressure	36 psi / 2.5 bar
Highest Temperature Resistance	43°C (109°F)
Warranty	10 years body warranty
Suggested Filter Medium Size	0.5 - 0.8 mm

Applications

This versatile filtration system is ideal for:

Residential & Semi Commercial Swimming Pools
Clubhouse & Commercial Pools
Spa Pools and Hot Tubs
Water Features & Aquaculture Systems

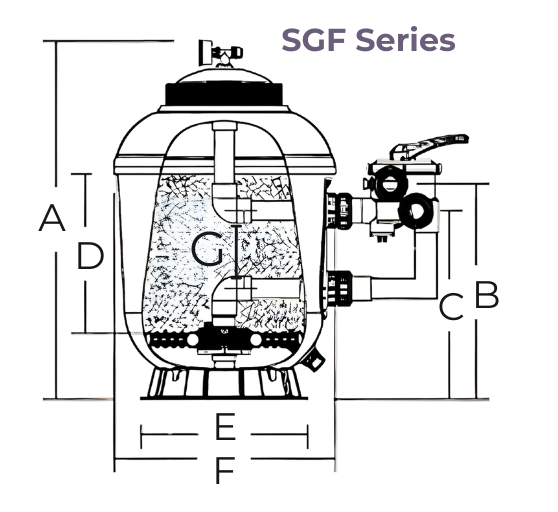

Technical Data

Model No	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	NW (kg)	GW (kg)	Packing (mm)
GFS-400	710	450	385	330	425	400	158	11.2	13.2	450x450x680
GFS-500	810	450	385	330	425	500	158	14.3	17.2	550x550x720
GFS-650	900	490	425	480	568	650	158	17.15	21.6	680x680x815
GFS-750	940	670	585	540	568	750	208	26.9	32.8	780x780x1050
GFS-900	1100	735	720	620	700	900	208	32.3	41.75	920x920x1080

Astrowave Pool GFS series Gel-coated Fiberglass Pool Filter is Ideal for both new pool installations and upgrades, this filter combines practical engineering with hassle-free maintenance so you can enjoy crystal-clear water with less effort.
