ASW series
Astrowave Pool

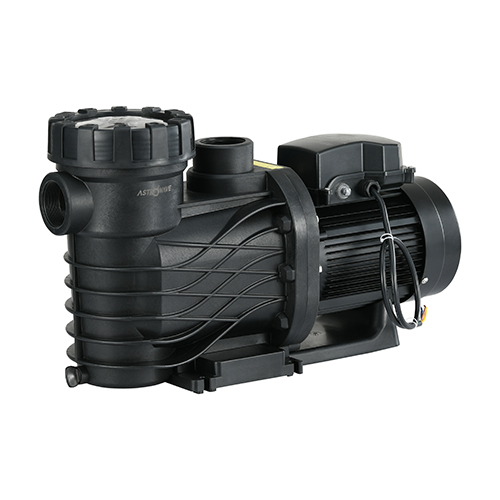

High-efficiency Swimming Pool Pump
The ASW Series water pump is engineered for reliable water movement in residential and commercial swimming pool systems. Designed with durable engineering plastics and a large integrated strainer basket, it supports continuous filtration circulation while maintaining stable hydraulic performance, making it a dependable commercial pool pump for professional aquatic facilities. The pump integrates a large debris strainer with a transparent ring-lock lid, allowing operators to visually monitor debris accumulation and perform maintenance without complex disassembly. This configuration supports efficient pre-filtration and stable water transfer within a filtration pump system commonly used in pool circulation and water treatment installations. With high flow capacity and robust motor construction, the ASW Series is designed to maintain consistent water movement through filtration equipment and piping networks. Its hydraulic structure enables efficient water delivery when installed as a pool pump for sand filter systems used in residential and commercial swimming pools.
| Model | Power (KW/HP) | Voltage | Max.Flow Rate | Max. Head | |||
|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m | ft | |||
| ASW100 | 0.75 / 1.0 | 110V/220V/380V | 25 | 417 | 110 | 17 | 56 |
| ASW150 | 1.1 / 1.5 | 110V/220V/380V | 28 | 467 | 123 | 18 | 59 |
| ASW200 | 1.5 / 2.0 | 110V/220V/380V | 32 | 533 | 141 | 19 | 62 |
| ASW300 | 2.2 / 3.0 | 110V/220V/380V | 36 | 600 | 159 | 21 | 69 |
| ASW350 | 2.6 / 3.5 | 220V/380V | 40 | 667 | 176 | 22 | 72 |
| ASW400 | 3.0 / 4.0 | 220V/380V | 44 | 733 | 194 | 23 | 75 |
Yes. The ASW Series is designed for both residential and commercial installations and supports stable water circulation for standard swimming pool filtration systems.
The motor operates at fixed speeds depending on the power frequency, which is typical for a single speed pool pump used in conventional swimming pool filtration systems.

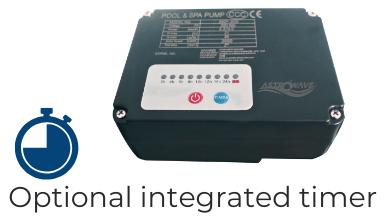

An optional control module allows the system to function as a pool pump with timer, enabling scheduled start and stop cycles for automated pool filtration operation.
The pump incorporates a built-in debris basket with a transparent lid that allows quick inspection and easy removal of leaves or particles collected during operation.
The pump is designed to operate with water temperatures up to 45°C, supporting typical swimming pool circulation conditions.
Yes. The motor includes built-in thermal protection and an external heat dissipation structure to maintain safe operation during continuous use.
