SPS Series
Astrowave Pool
THE IDEAL PUMP FOR SMALL-SCALE POOL SYSTEMS

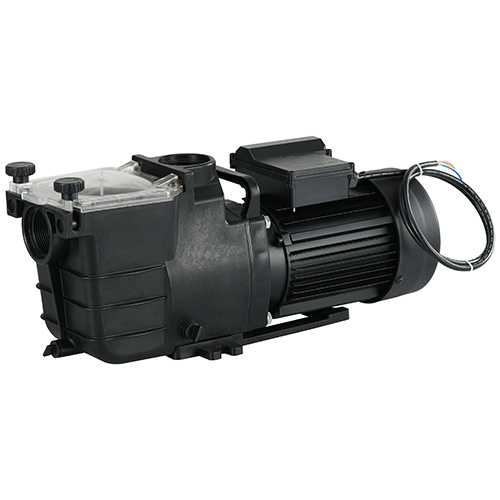

The SPS Series MINI pump is designed for compact circulation systems in residential swimming environments and decorative water features. As a residential pool pump, it supports efficient water movement for small-scale filtration systems while maintaining straightforward installation and service access. The compact pump structure integrates a debris filter with a transparent bolt-type lid, allowing operators to quickly inspect and clean the strainer basket without disassembling the unit. Engineered for compact aquatic installations, the SPS Series provides stable hydraulic performance for backyard installations and small filtration loops. The unit is commonly selected as an above ground pool pump where space efficiency, straightforward piping connections, and stable motor performance are required. Integrated 1.5" / 50 mm imperial and metric unions simplify installation in different plumbing standards, while the asynchronous two-pole motor ensures consistent operation. The pump system emphasizes operational comfort and energy-conscious performance for residential environments. With operational noise levels below 65 dB and fixed motor speeds of 2850 rpm at 50 Hz and 3450 rpm at 60 Hz, the unit functions as a quiet water pump suitable for installations near living areas or recreational spaces. The design supports small filtration circuits and decorative aquatic systems where continuous circulation and low maintenance requirements are important.
This mini pool pump is specifically engineered for global Pool Equipment wholesale distributors, regional dealers, and professional aquatic project contractors.
| Features | |
|---|---|
| Pump Strainer Housing Material: | Corrosion-Resistant Thermoplastic |
| Speed Control Type: | Constant Speed |
| Dual Voltage Supported: | NO |
| Integrated Timer Supported: | Optional |
| Motor Casing: | Premium Die-Cast Aluminum Alloy with Enhanced Heat Dissipation |
| Motor Winding: | High-Conductivity Copper Windings |

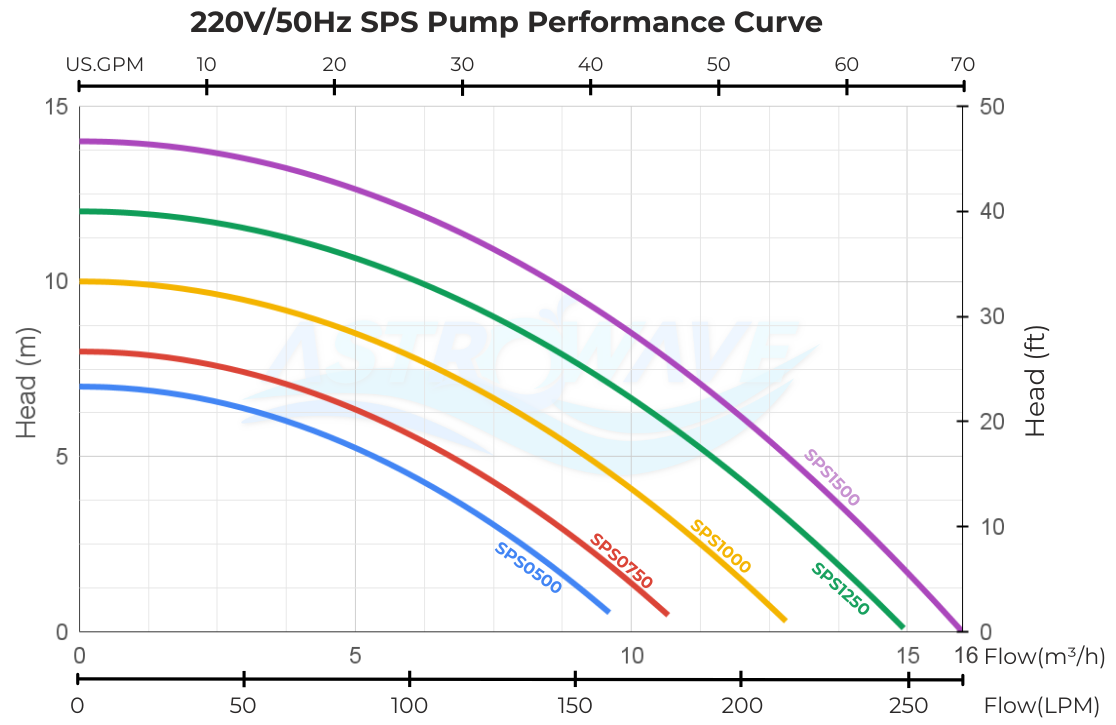

| Model | Power (KW/HP) | Voltage | Max.Flow Rate | Max. Head | |||
|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m | ft | |||
| SPS0500 | 0.37 / 0.5 | 110V/220V | 10 | 167 | 44 | 7 | 23 |
| SPS0750 | 0.56 / 0.75 | 110V/220V | 11 | 183 | 48 | 8 | 26 |
| SPS1000 | 0.75 / 1.0 | 110V/220V | 13 | 217 | 57 | 10 | 33 |
| SPS1250 | 0.94 / 1.25 | 110V/220V | 15 | 250 | 66 | 12 | 39 |
| SPS1500 | 1.1 / 1.5 | 110V/220V | 16 | 267 | 70 | 14 | 46 |
The pump is intended for small residential and decorative aquatic systems including backyard pools, plunge pools, and compact filtration circuits where stable circulation is required.
Different models in the series are available for either 110V or 220V electrical systems, allowing installers to select the appropriate configuration based on regional power standards.
The compact design and simplified maintenance structure make it a practical option when selecting a low price pool pump for residential filtration systems without requiring complex installation.
The motor incorporates Class B insulation, built-in thermal protection, and an external heat sink to maintain stable operating temperatures and support long-term reliability.
Key mechanical components such as the SS316 shaft and bearing system, combined with sealed motor construction and IP54 environmental protection, help position the unit as a high quality pool pump for residential circulation systems.

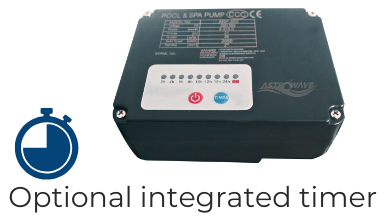

An optional timer module can be integrated to automate shut-off, improving convenience for pool owners.
We are a direct custom pool pump factory in China. Astrowave Pool operates its own production facilities with a strict in-house quality control system. You are always welcome to visit our factory in person, or we can arrange a real-time WhatsApp video tour of our workshop for a convenient remote inspection.
Yes, we provide comprehensive OEM and ODM services tailored for our global B2B partners. From custom product colors and branded logos to specific carton packaging designs, our flexible production lines can accommodate your needs. As an experienced swimming pool equipment manufacturer, we focus on delivering consistent quality to help your business succeed in local markets.
As a custom pool equipment manufacturer and supplier in China, Astrowave Pool Products specializes in complete filtration and circulation systems. We focus on producing high-demand commercial and residential core products, including:
With over 22 years of export experience, we proudly supply reliable pool equipment to distributors, pool builders, and dealers worldwide, including the Middle East, India, Southeast Asia, Africa, the Americas, and Southern Europe.
