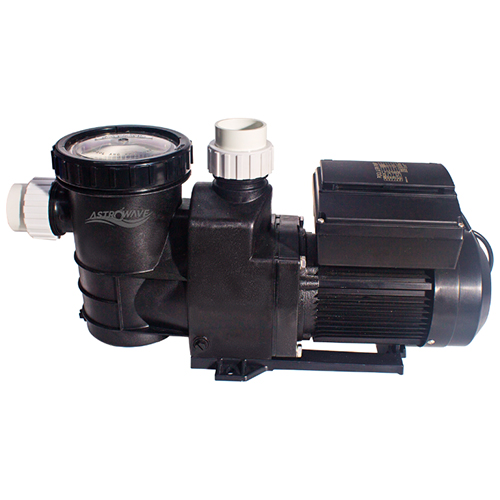

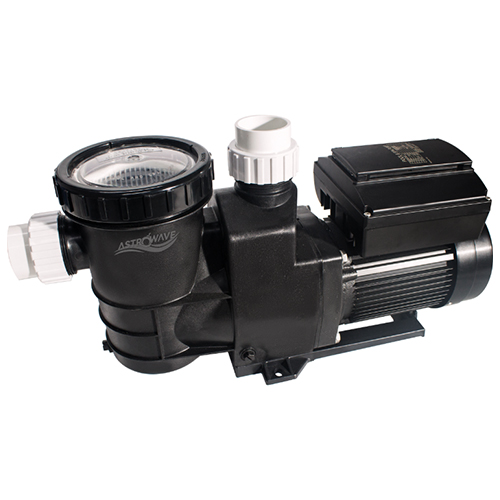

ESKP Series
China Professional Manufacturer & Supplier of Premium Pool Product.
Direct-Factory Pool Product,100% Swimming Pool Product Manufactory Since 1992.
\

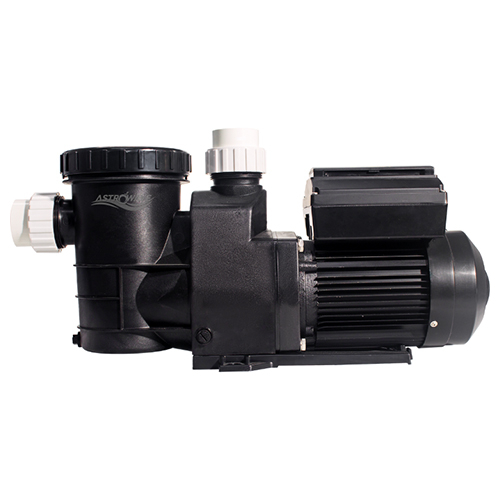

The ESKP Variable Frequency Pool Pump is engineered for maximum energy efficiency and intelligent operation, making it the perfect upgrade from traditional single-speed pumps like SKP models. With its advanced Variable Frequency Drive (VFD) technology, the ESKP pump dynamically adjusts motor speed based on pool demand, ensuring optimal water circulation while reducing energy consumption by up to 75%.
The ESKP Variable Frequency Pool Pump is an upgraded version of the SKP Pool Pump.
Designed for high-load and continuous operation, this pump minimizes wear on critical pool components such as sand filters, disinfection systems, and pipe networks—extending equipment lifespan and reducing maintenance costs.
You can

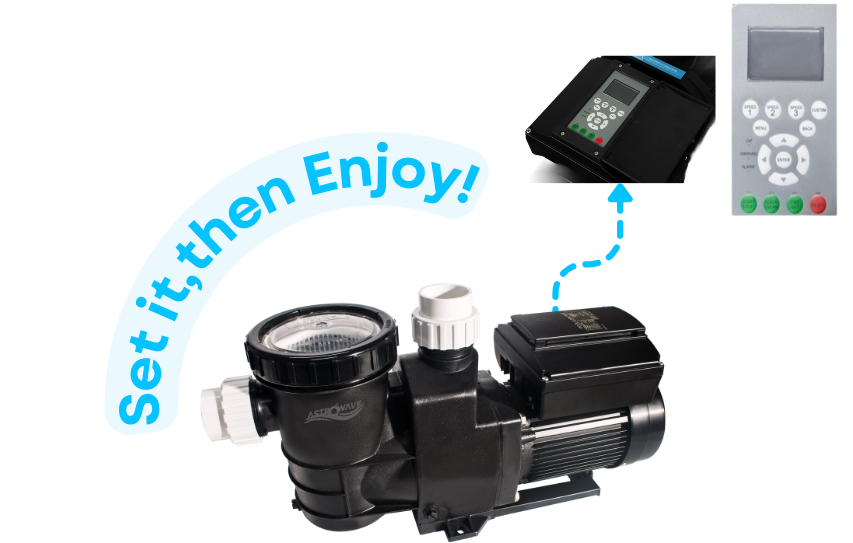

Or Set your ESKP pool pump anywhere via your phone.
Superior Energy Efficiency – Dynamic motor speed control reduces operational costs and lowers carbon emissions.
Enhanced Filtration Performance – Optimized water flow improves clarity and water quality.
Smart IoT Control – Integrated Tuya IoT platform enables remote monitoring and control via smartphone from anywhere.
Automated Scheduling – Programmable timers allow fully automated filtration cycles with minimal manual intervention.
Durable & Reliable Build – Hardened steel drive shaft, 304 stainless steel/carbon mechanical seal, and IPX5 waterproof motor ensure long-lasting performance.
Multi-Voltage Compatibility – Works with 110V, 220V, and 380V power supplies (50/60Hz).
Quiet & Smooth Operation – Induction motor with thermal overload protection for stable, silent performance.

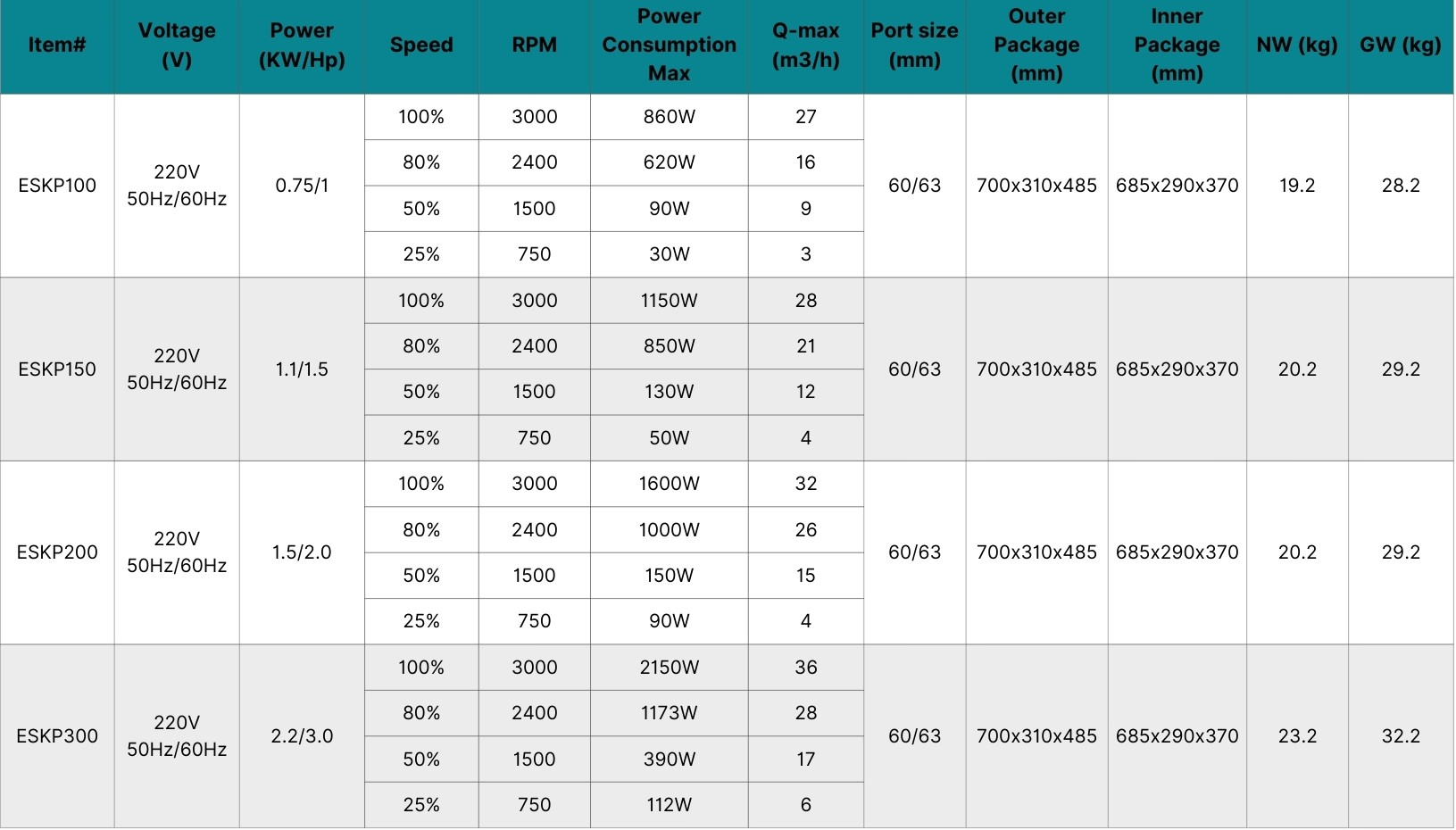

Motor Type: Induction Motor (Asynchronous)
Insulation Class: 130 (B)
Waterproof Rating: IPX5
Thermal & Overload Protection: Integrated
Voltage Options: 110V / 220V / 380V (50/60Hz)
Max Suction Lift: 2.0m
Pressure Rating: 3.5 bar (50 psi)

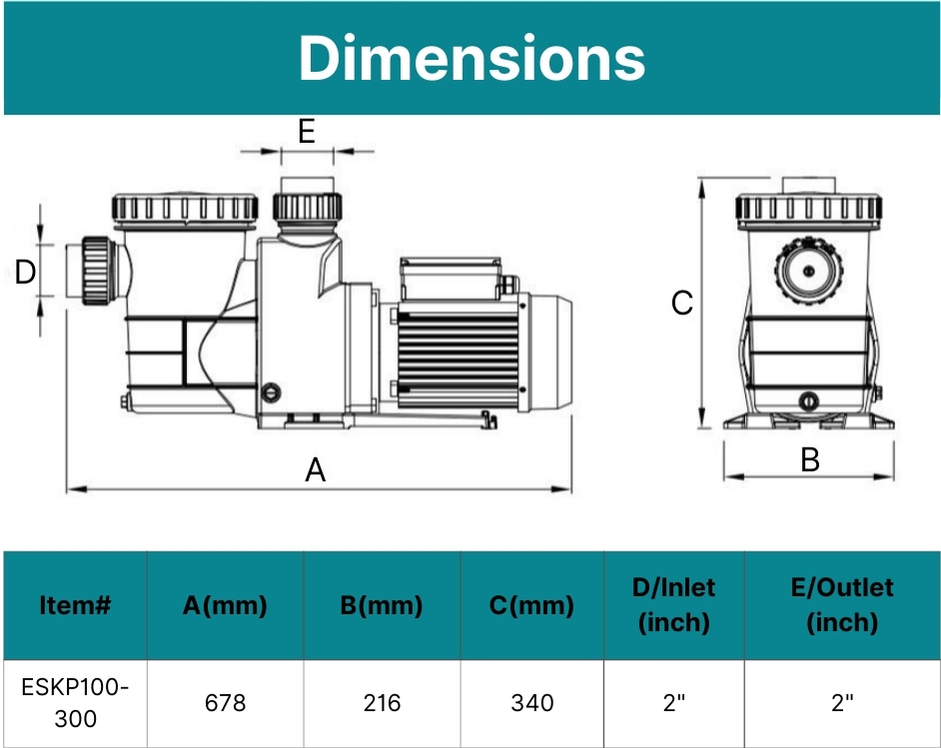

Fittings: Dual Thread Standard – Metric & NPT
Strainer Basket Capacity: 5L
Mechanical Seal: 304 Stainless Steel / Carbon
Drive Shaft: Hardened Steel
Whether for a residential pool or large-scale commercial installation, the ESKP Variable Frequency Pool Pump combines intelligent control, robust engineering, and proven energy savings to deliver unmatched performance. With built-in IoT connectivity and automated features, managing your pool has never been easier—or more efficient.
