UV - Ultraviolet Disinfection Principle
Invisible ultraviolet (UV) rays are divided into three categories: UVA, UVB, and UVC. Among these, the C-band wavelength ranges from 200-280nm, with the 240-270nm range being the most effective for disinfection. This range has the strongest energy and can directly kill waterborne viruses, bacteria, and microorganisms by destroying the DNA of cells, rendering them non-pathogenic. UV disinfection can be applied to various aspects of water and air purification. The most important advantage is that it does not add chemical substances to inhibit the activity of microorganisms. It also has the capability to eliminate new pollutants, including organic and inorganic chemicals such as chlorine, TOC, and others.
Benefits of Ultraviolet (UV) Light
1. Effective against all microorganisms, including bacteria, viruses, fungi, and protozoa (Cryptosporidium and Giardia).
2. No toxic or harmful by-products are produced after disinfection.
3. Low cost, quick effectiveness, easy to operate, and convenient to maintain.
4. Perfectly matches customer requirements without over-sizing, ensuring the best cost-performance ratio for the selected model.

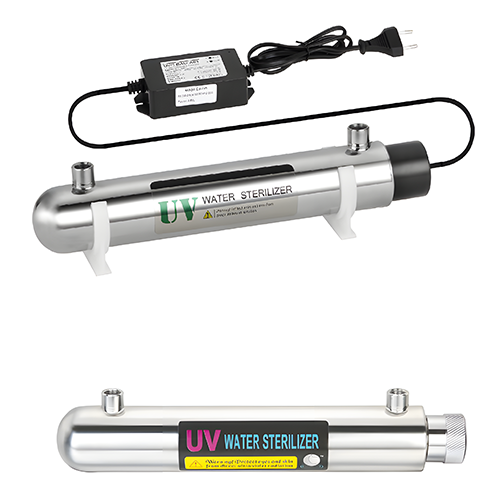

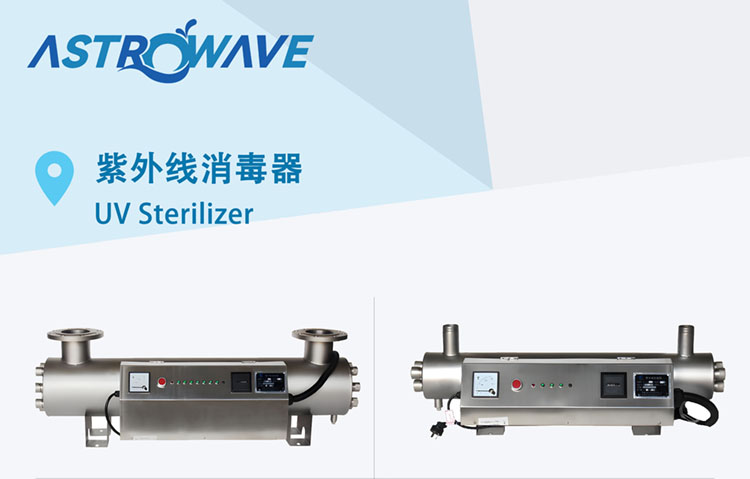

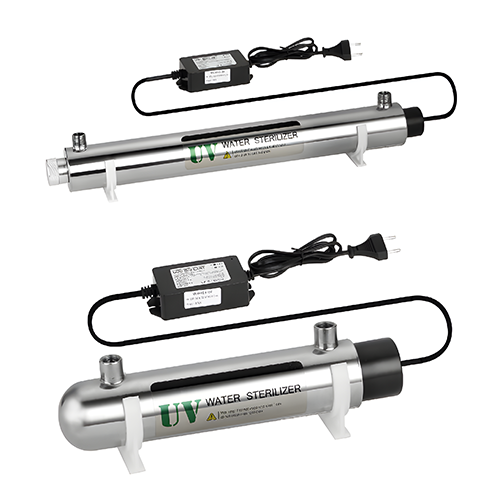

Astrowave ultraviolet (UV) sterilizers are high-intensity UV sterilizers, suitable for sterilizing and disinfecting purified water, pure water, and regular domestic water, as well as sterile water. They can be widely used in water treatment industries such as food, cosmetics, pharmaceuticals, electronics, and swimming pools. They feature easy installation and a high sterilization rate (99.9%).
Scope of Application
The scope of application of the swimming pool water treatment system is listed as follows:
· Hotel water supply
· Hospital water supply
· Villa drinking water
· School drinking water
· Secondary water supply project in the community
· Office building water supply
· Large public places water supply
· Swimming pool water
· Landscape water
Features
The features of the swimming pool water treatment system are listed as follows:
· High-efficiency disinfection
· Broad-spectrum disinfection
· No secondary pollution
· Safe and reliable operation
· Low operation and maintenance costs
Advantages
The advantages of using a swimming pool water treatment system are listed as follows:
· Disinfection and sterilization
· Promote bone development
· Beneficial to blood circulation
· Can occasionally treat certain skin diseases
· Ultraviolet irradiation directly affects the synthesis of vitamin D in the human body. Without ultraviolet irradiation, there is not enough vitamin D.


| Item | Flow Rate (t/h) | Power (W) | In/Outlet | Pipe Size | Dimensions | Packing(cm) |
| AUV-ASW-75-1 | 3 | 75 | DN50 | 89 | 900x90x389 | 101x20x38 |
| AUV-ASW-75-2 | 8 | 150 | DN50 | 108 | 900x318x258 | 101x27x47 |
| AUV-ASW-75-3 | 15 | 225 | DN80 | 133 | 900x343x303 | 101x27x47 |
| AUV-ASW-75-4 | 20 | 300 | DN80 | 159 | 900x369x329 | 101x38x37 |
| AUV-ASW-75-6 | 30 | 450 | DN100 | 219 | 900x429x409 | 101x42x41 |
| AUV-ASW-75-8 | 40 | 600 | DN100 | 219 | 900x429x409 | 101x50x53 |
| AUV-ASW-75-10 | 50 | 750 | DN150 | 273 | 900x523x483 | 101x53x46 |
| AUV-ASW-120-8 | 60 | 960 | DN150 | 273 | 1200x523x483 | 131x38x59 |
| AUV-ASW-120-10 | 70 | 1200 | DN150 | 273 | 1200x523x483 | 131x38x59 |
| AUV-ASW-120-12 | 80 | 1440 | DN150 | 273 | 1200x523x483 | 131x50x59 |
| AUV-ASW-120-14 | 90 | 1680 | DN150 | 273 | 1200x523x483 | 131x50x59 |
| AUV-ASW-120-16 | 100 | 1720 | DN200 | 325 | 1600x325x555 | 131x50x65 |
| AUV-ASW-150-14 | 120 | 2100 | DN200 | 325 | 1600x325x555 | 173x40x62 |
| AUV-ASW-150-16 | 140 | 2400 | DN200 | 325 | 1600x325x555 | 173x40x62 |
| AUV-ASW-150-18 | 160 | 2700 | DN200 | 325 | 1600x325x555 | 173x40x62 |
| AUV-ASW-150-20 | 180 | 3000 | DN200 | 325 | 1600x325x555 | 173x40x62 |
| AUV-ASW-150-22 | 200 | 3300 | DN200 | 325 | 1600x325x555 | 173x40x62 |
| AUV-ASW-320-14 | 250 | 4480 | DN200 | 377 | 1600x377x617 | 173x50x52 |
| AUV-ASW-320-16 | 300 | 5120 | DN200 | 377 | 1600x377x617 | 173x50x52 |
