| Quantity: | |
|---|---|
Description :
1. Intelligent to heat by segment, fill water with steam, automatic to turn off and wash with pressure to drain.
2. Light can be connected to illumine, water inflow to magnetize and filtrate ect.
3. Intelligent to indicate fault.
4. To show CH can working so long.
5. Intelligent to protect when overheating, shortage of water and prssure of inside tank ect..
6. Can pause at working.
7. Intelligent to save two sets of temperature, can indivdual set time by memory.
how to select a suitable steamer for your sauna room:
1. Calculate the room's volume (Length*Width*Height) in meter.
2.The power of the steam generator is equal to the CBM of the room
(eg: a 8m³ room should use a 8kw steam generator)
3.Usually, the machine power should be high than the volume number if the volume is not an integer,
so that the room can reach the temperature in short time and it's good for the machine having a longer life span
| Technical Characteristics | ||||
| Model | Power | Voltage | Dimension | Applicable Room |
| AQW-40 | 4.0KW | 220/380V | 210*650*430mm | 5m³ |
| AQW-60 | 6.0KW | 220/380V | 210*650*430mm | 6m³ |
| AQW-80 | 8.0KW | 220/380V | 210*650*430mm | 8m³ |
| AQW-90 | 9.0KW | 220/380V | 210*650*430mm | 9m³ |
| AQW-120 | 12KW | 380V | 260*650*600mm | 12m³ |
| AQW-150 | 15KW | 380V | 260*650*600mm | 15m³ |
| AQW-180 | 18KW | 380V | 260*650*600mm | 18m³ |

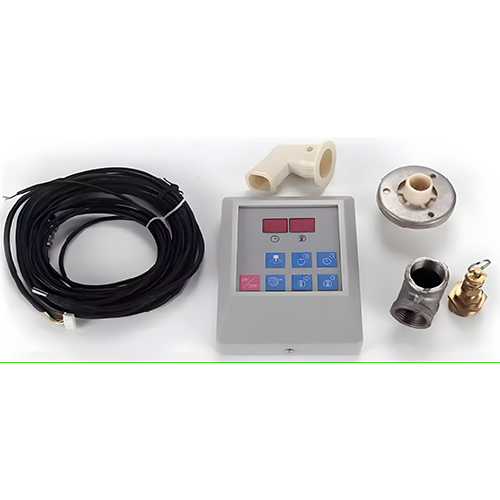

Accessories:
Advantages
1) Without toxins,heavy metals and harmful materials
2) Removes fatigue,replenish oxygen and energy
3) Reduces stress,promotes better sleep
4) Relieves pain and improves nervous system
5)Makes skin beautiful and smooth,put off aging and look young
Working effect:
Before the steam generator works ,make sure its inlet valve is open and there is enough water supplied power votage must accord with the working vatge or the steam generator ,or the steam generator can't work properly.
The supplied power voltage must accord with the working voltage or steam generator ,or A problem in time and therefore avoid a breakdown.
The following are effective measures to make its service life lnger ,clean out periodically the bdating element,contactor and wires for having secure connection,exotherm,color change and good contact or not.
Please inform agent or professionl technicians at once if the steam generator breaks down or changing change parts is needed.
Applicable for residential sauna,commercial sauna and wet sauna.
