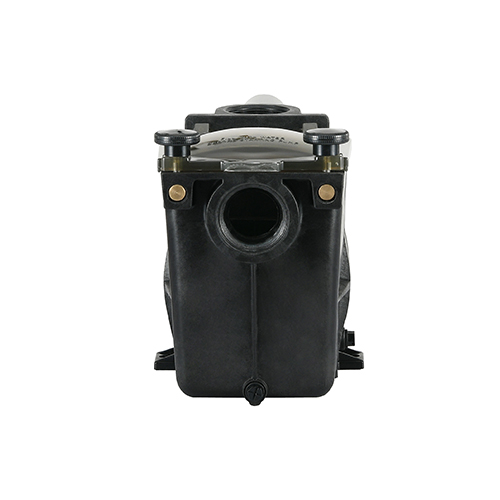

WSP Series High Performance & Energy Savings-One Touch Swimming Pool Filter Pump

The WSP Series is engineered with optimized hydraulics and a robust asynchronous two-pole motor to serve as a durable pool pump for both residential and commercial water circulation systems. Featuring an integrated square debris filter and a structural design focused on fluid dynamics, the system ensures strong flow rates while minimizing mechanical strain on internal components.

Designed with a transparent bolt-type lid for rapid visual inspection, the equipment functions as a low maintenance pool pump by extending the intervals between manual strainer cleanings. This product series is available in single-speed, dual-voltage, and dual-speed configurations to support different electrical standards and operational requirements.

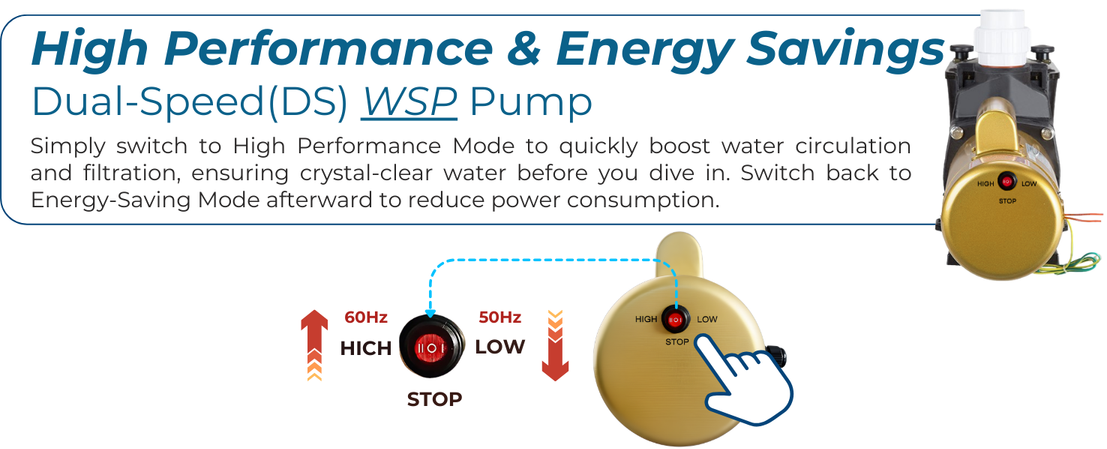

For facilities requiring dynamic flow control, the dual speed pool pump models incorporate a manual toggle switch to alternate between 50Hz and 60Hz frequencies. This enables operators to activate a High Performance Mode for rapid water turnover, and subsequently switch to an Energy-Saving Mode to maintain stable filtration with reduced electrical consumption.
Availability:
Quantity:
Inquire Add to Basket

  • WSP Series

  • Astrowave Pool

High Performance & Energy Savings-One Touch

Product Description

The WSP Series is engineered with optimized hydraulics and a robust asynchronous two-pole motor to serve as a durable pool pump for both residential and commercial water circulation systems. Featuring an integrated square debris filter and a structural design focused on fluid dynamics, the system ensures strong flow rates while minimizing mechanical strain on internal components. Designed with a transparent bolt-type lid for rapid visual inspection, the equipment functions as a low maintenance pool pump by extending the intervals between manual strainer cleanings. This product series is available in single-speed, dual-voltage, and dual-speed configurations to support different electrical standards and operational requirements. For facilities requiring dynamic flow control, the dual speed pool pump models incorporate a manual toggle switch to alternate between 50Hz and 60Hz frequencies. This enables operators to activate a High Performance Mode for rapid water turnover, and subsequently switch to an Energy-Saving Mode to maintain stable filtration with reduced electrical consumption.

Product Features

  • Flexible Model Configuration: Available in single-speed, dual-voltage, and switchable dual-speed versions to accommodate the diverse electrical and operational demands of a commercial swimming pool pump.

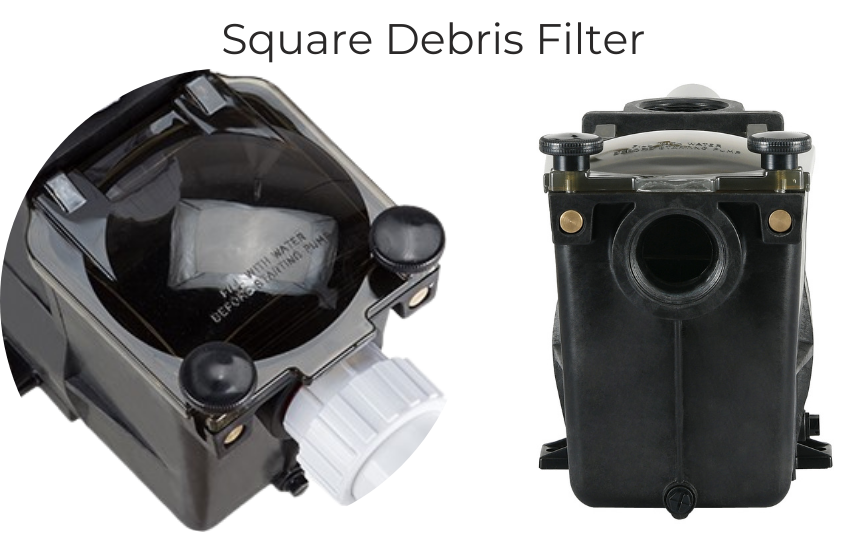

  • Integrated Pre-Filtration System: Features a large-capacity square debris filter secured by a transparent bolt-type lid, streamlining routine maintenance and protecting the internal hydraulics from obstruction.
  • Advanced Operational Modes: The DS models operate as an energy efficient pool pump by allowing manual switching between 60Hz high-performance circulation and 50Hz low-power continuous filtration.
  • Motor Reliability Components: Constructed with an asynchronous two-pole motor featuring an internal heat sink, built-in thermal protection, and Class B insulation to prevent thermal overload.
  • Standardized Piping Unions: Includes adaptable plumbing connectors supporting both imperial and metric systems, specifically designed for 2-inch (63 mm) and 1.5-inch (50 mm) installation manifolds.
  • Environmental Operating Parameters: Rated for an IP20 waterproof classification and engineered to maintain stable fluid delivery in elevated temperatures up to a maximum water threshold of 45°C.
  • Optional Marine-Grade Upgrades: Can be configured with optional SS316 stainless steel shafts and bearings to enhance resistance against corrosion in demanding or specialized water environments.

Product Specifications

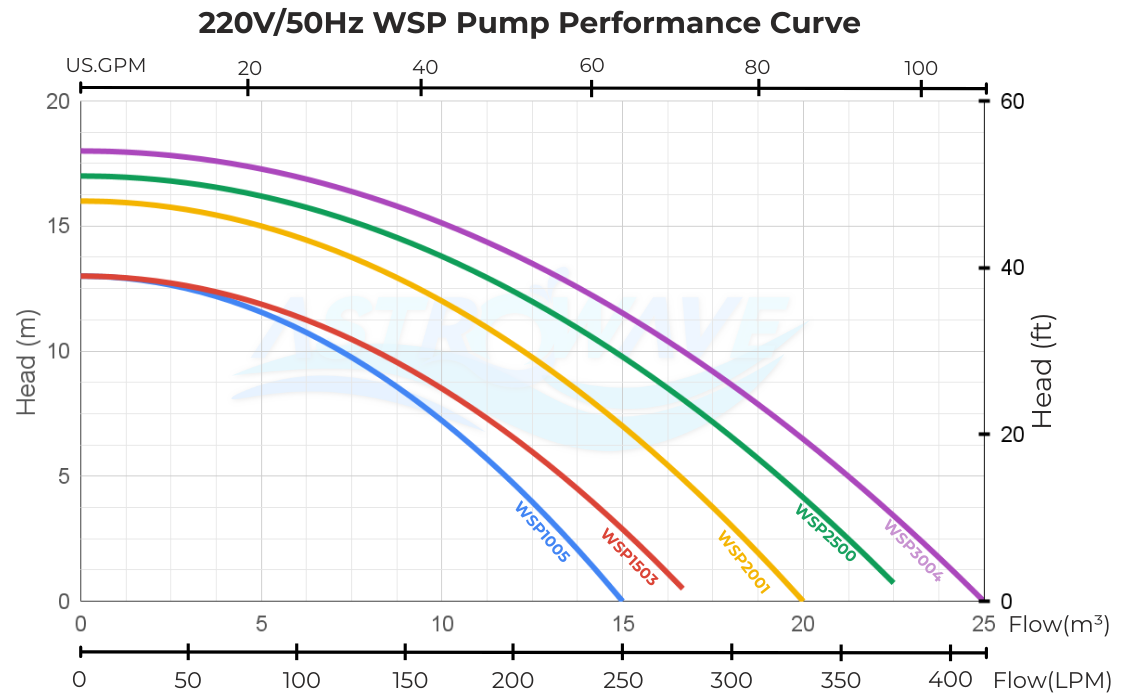

Single-Speed
Model		 Power
(KW/HP)		 Voltage Speed Motor Speed
(rpm)		 Max.Flow Rate Max. Head
m³/h LPM GPM m ft
WSP1005 0.75 / 1.0 Fixed 110V /220V 50 / 60Hz 50Hz-2850 / 60Hz-3450 15 250 66 13 43
WSP1503 1.1 / 1.5 Fixed 110V /220V 50 / 60Hz 50Hz-2850 / 60Hz-3450 17 283 75 13 43
WSP2001 1.5 / 2.0 Fixed 110V /220V /380V 50 / 60Hz 50Hz-2850 / 60Hz-3450 20 333 88 16 52
WSP2500 1.87 / 2.5 Fixed 110V /220V /380V 50 / 60Hz 50Hz-2850 / 60Hz-3450 23 383 101 17 56
WSP3004 2.2 / 3.0 Fixed 110V /220V /380V 50 / 60Hz 50Hz-2850 / 60Hz-3450 25 417 110 18 59
Dual-Voltage
Model		 Power
(KW/HP)		 Voltage Speed Motor Speed
(rpm)		 Max.Flow Rate Max. Head
m³/h LPM GPM m ft
WSP1005DV 0.75/1.0 Selectable 110V /220V 60Hz 110V-2850 / 220V-3450 16 267 70 13 43
WSP1503DV 1.1/1.5 Selectable 110V /220V 60Hz 110V-2850 / 220V-3450 20 333 88 15 49
WSP2001DV 1.5/2.0 Selectable 110V /220V 60Hz 110V-2850 / 220V-3450 24 400 106 16 52
WSP2500DV 1.87/2.5 Selectable 110V /220V 60Hz 110V-2850 / 220V-3450 26 433 114 16 52
WSP3004DV 2.2/3.0 Selectable 110V /220V 60Hz 110V-2850 / 220V-3450 28 467 123 17 56

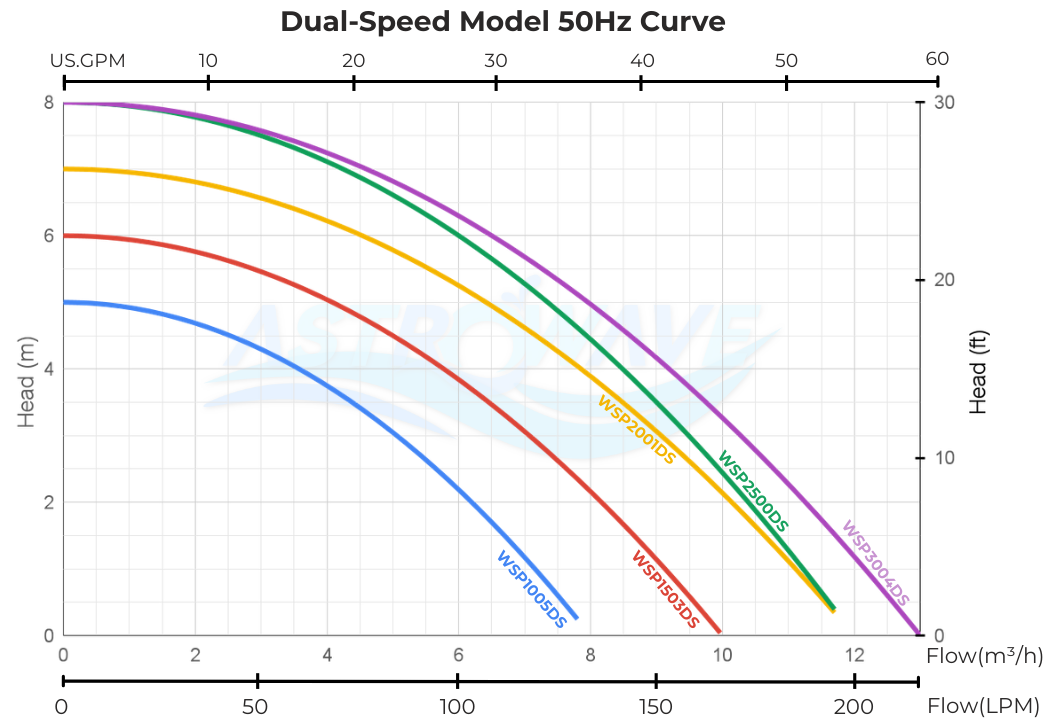

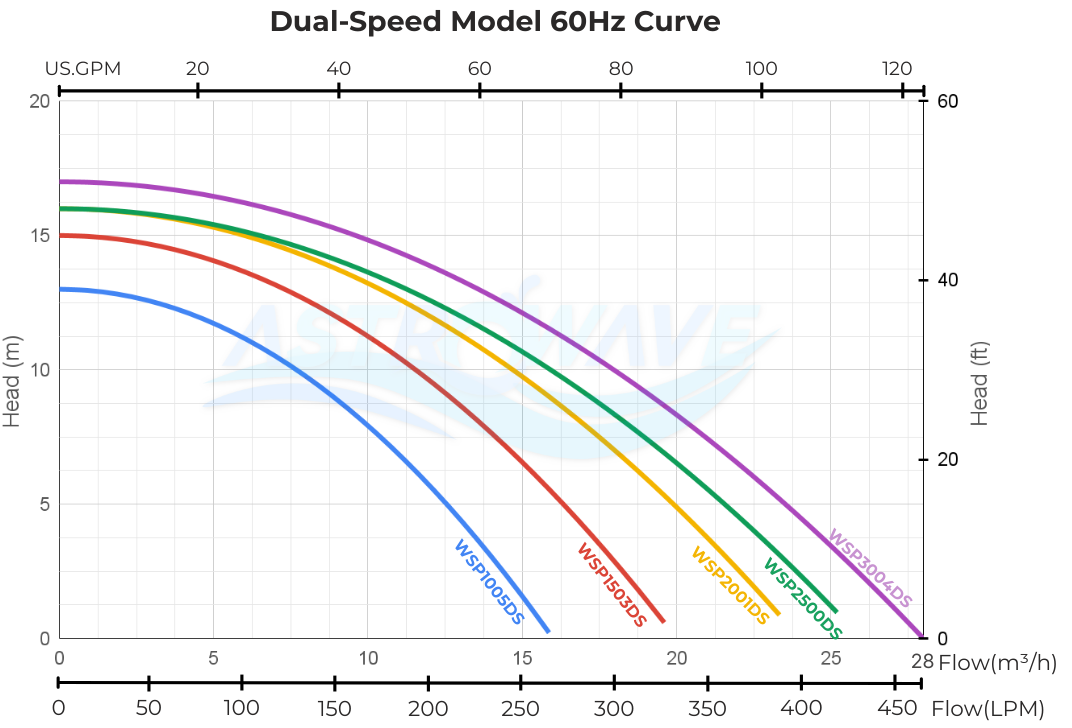

Dual-Speed
Model		 Power
(KW/HP)		 Voltage Speed Motor Speed
(rpm)		 Max.Flow Rate Max. Head
m³/h LPM GPM m ft
WSP1005DS 0.75/1.0 220V Switchable 50 / 60Hz 50Hz:1725
60Hz:3450		 8
16		 133
267		 35
70		 5
13		 16
43
WSP1503DS 1.1/1.5 220V Switchable 50 / 60Hz 50Hz:1725
60Hz:3450		 10
20		 167
333		 44
88		 6
15		 20
49
WSP2001DS 1.5/2.0 220V Switchable 50 / 60Hz 50Hz:1725
60Hz:3450		 12
24		 200
400		 53
106		 7
16		 23
52
WSP2500DS 1.87/2.5 220V Switchable 50 / 60Hz 50Hz:1725
60Hz:3450		 12
26		 200
433		 53
114		 8
16		 26
52
WSP3004DS 2.2/3.0 220V Switchable 50 / 60Hz 50Hz:1725
60Hz:3450		 13
28		 217
467		 57
123		 8
17		 26
56

Dimensions

PICTURE_ONLY

Application Areas

  • Municipal aquatic centers deploying a 2-speed pool pump to quickly boost filtration during peak bather loads and reduce power consumption during overnight operational hours.
  • International hotel pool complexes requiring a selectable dual voltage pool pump to integrate seamlessly with specific regional 110V or 220V electrical infrastructures.
  • Luxury resort swimming pools demanding a consistent performance pool pump to maintain continuous crystal-clear water quality across demanding daily circulation schedules.
  • Public recreation facilities upgrading standard circulation systems with robust hardware featuring optional SS316 internal components for longevity in treated water environments.
  • University athletic training venues utilizing large strainer capacities to manage high debris volumes and ensure uninterrupted flow dynamics for Olympic-sized basins.

FAQ

What is the primary operational advantage of the WSP Dual-Speed model?

By manually toggling between 60Hz and 50Hz settings, the equipment functions as an energy saving pool pump, allowing operators to reduce power consumption significantly after initial high-demand filtration cycles.

What plumbing dimensions are supported by the WSP Series?

The system is designed as an efficient pool circulation pump that includes versatile union fittings, accommodating standard 2-inch (63 mm) and 1.5-inch (50 mm) imperial and metric piping.

How does the dual-voltage configuration operate?

The DV models feature a selectable 110V/220V input capability operating at 60Hz, which requires the installer to manually select the appropriate voltage matching the facility's power supply prior to operation.

What thermal protections are integrated into the motor?

The asynchronous two-pole motor is equipped with built-in thermal protection, an internal heat sink, and Class B insulation to safeguard against overheating during continuous duty cycles.

What is the maximum operating water temperature for this pump?

The internal hydraulics, structural casing, and motor components are engineered to process water safely up to a maximum temperature limit of 45°C.
