SKP Series
Astrowave Pool
LOW RUNNING COST AND NOISE LEVEL

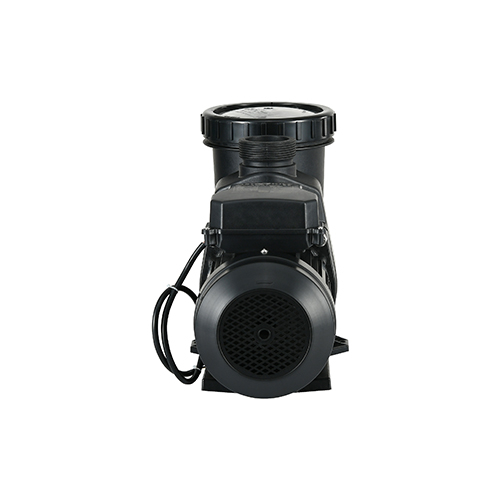

The SKP Series Super Kinetic Pump utilizes an advanced hydraulic design combined with durable, high-strength engineering plastics for reliable water treatment. This product series is available in 110V/220V/380V configurations to support different electrical standards and operational requirements. Incorporating a high-capacity strainer and transparent Ring-Lock lid, this reliable pool filter pump simplifies maintenance while ensuring consistent hydraulic performance. Engineered to maintain a low running cost and low noise level, the system includes an optional integrated timer for users who prefer minimal monitoring. Once the continuous running time is set, the energy efficient pool pump automatically shuts down when the target time is reached. The unit operates on a fixed speed profile, delivering 2850 rpm at 50Hz and 3450 rpm at 60Hz. Designed for both residential settings and larger aquatic facilities, the system is equipped with an asynchronous, two-pole motor featuring Class B insulation and an external heat sink. Built-in thermal protection and an IP54 waterproof rating ensure operational stability in demanding environments, making it a capable commercial pool pump for consistent daily fluid circulation.
| Model | Valve Model (Union Connection) | Valve Connection | Max.Flow Rate | Filter Area | Sand (kg) | |||
|---|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m² | ft² | ||||
| SR450 | MPV03 | 1.5" / 50mm | 10 | 167 | 44 | 0.16 | 1.7 | 50 |
| SR525 | MPV03 | 1.5" / 50mm | 12 | 200 | 53 | 0.19 | 2.0 | 65 |
| SR600 | MPV03 | 1.5" / 50mm | 14 | 233 | 62 | 0.22 | 2.4 | 115 |
| SR650 | MPV03 | 1.5" / 50mm | 17 | 283 | 75 | 0.32 | 3.4 | 145 |
| SR700 | MPV03 | 1.5" / 50mm | 19 | 317 | 84 | 0.35 | 3.8 | 180 |

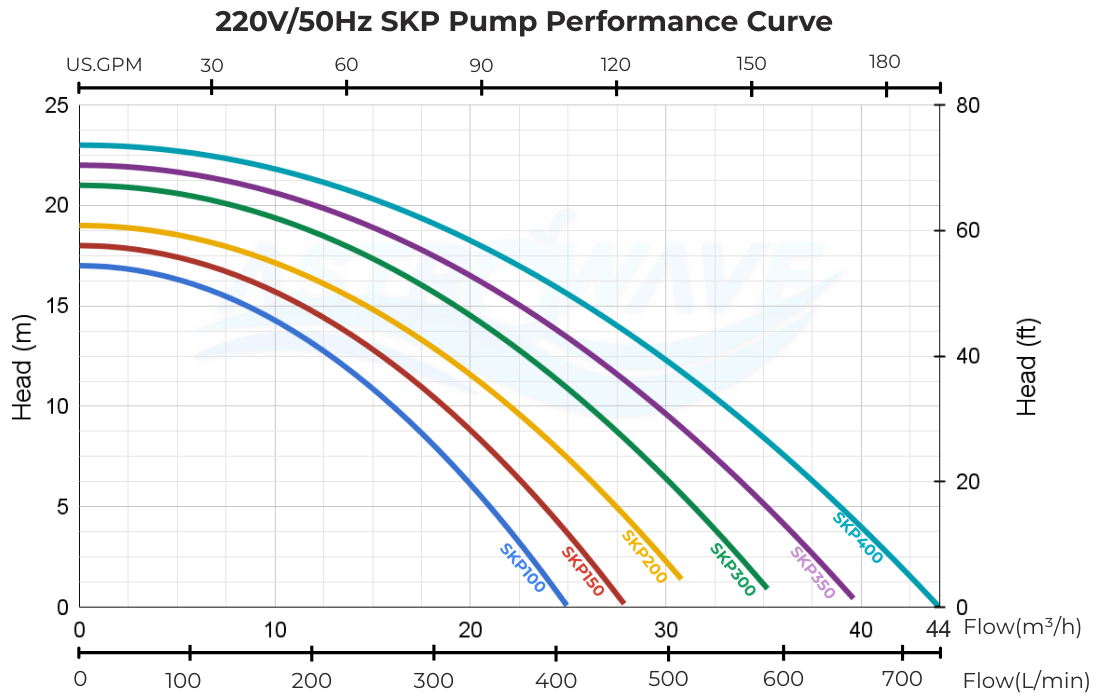

The highest capacity model in the SKP series is the SKP400, which operates as a 4 hp pool pump delivering a maximum flow rate of 44 cubic meters per hour and a maximum head of 23 meters.
Yes, an optional integrated timer is available. Users can set a continuous running time, and the unit will automatically shut down when that specific duration is reached.
The equipment includes imperial and metric unions measuring either 2 inches (63 mm) or 1.5 inches (50 mm), equipped with a secure lock lever.
The internal components and durable engineering plastics are designed to process water with a maximum temperature of up to 45 degrees Celsius safely.
Yes, as a direct factory pool pump offering, this series supports comprehensive commercial procurement needs with diverse voltage configurations and optional SS316 shaft upgrades.
