Factory Wholesale Low Energy Pool Pump for Water Circulation

Share to:

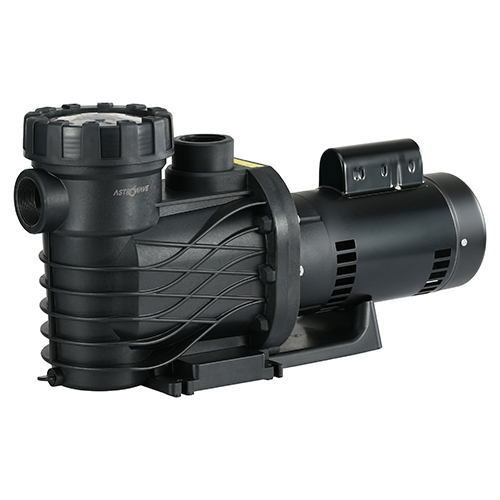

WKP Series Energy Efficient Pool Pump

Q: Does the WKP Series include models with multiple operating speeds?

Yes. Certain models operate as a 2 speed pool pump, allowing users to select higher flow for active circulation or lower speed for energy-saving filtration cycles.

Q: Are voltage options available for different electrical standards?

Yes. Some models are designed as a dual voltage pool pump with selectable 110V or 220V configurations, allowing installers to match regional electrical supply requirements.

Q: Are you a manufacturer or a trading company?

We are a 100% direct pool product China manufacturer with our own production facilities and strict in-house quality control system. Customers are always welcome to visit our factory, and we also support real-time workshop tours via WhatsApp for convenient remote inspection. Our core strengths lie in pool pumps and pool sand filters, where we maintain stable quality and large-scale production capacity.

Q: Do you support OEM and ODM customization for bulk orders?

Yes, as an experienced swimming pool equipment manufacturer, we provide full OEM and ODM services for bulk orders. Customization options include product color, branding/logo, and carton packaging design. As a reliable pool pump and filter manufacturer, we ensure flexible production and consistent quality to meet different market requirements.

The WKP Series is engineered for residential and commercial aquatic circulation systems where stable hydraulic output and dependable mechanical structure are required. As an eco friendly pool pump, the design combines optimized hydraulic performance with a durable motor and a large debris strainer to maintain consistent circulation while reducing routine maintenance requirements. The pump integrates a transparent ring-lock lid for quick inspection and cleaning of the internal debris filter.

This product series is available in Single-Speed, Dual-Voltage, and Dual-Speed configurations to support different electrical standards and operational requirements. Designed as a commercial swimming pool pump, the WKP Series supports both residential and commercial installations that require reliable water circulation with simplified service access and strong flow capability.

The pump incorporates asynchronous two-pole motor architecture, SS316 shaft and bearing components, and built-in thermal protection to support continuous circulation duty. These design elements allow the system to operate as an energy efficient pool pump suitable for filtration systems that require consistent water movement, reduced maintenance intervals, and dependable operating stability.

Availability:

Quantity:



Inquire Add to Basket

Model:
WKP Series
Brand:
Astrowave Pool

Product Description

Efficient & Eco – One Touch,Dual Speed

Product Description

The WKP Series is engineered for residential and commercial aquatic circulation systems where stable hydraulic output and dependable mechanical structure are required. As an eco friendly pool pump, the design combines optimized hydraulic performance with a durable motor and a large debris strainer to maintain consistent circulation while reducing routine maintenance requirements. The pump integrates a transparent ring-lock lid for quick inspection and cleaning of the internal debris filter. WKP series is available in Single-Speed, Dual-Voltage, and Dual-Speed configurations to support different electrical standards and operational requirements. Designed as a commercial swimming pool pump, the WKP Series supports both residential and commercial installations that require reliable water circulation with simplified service access and strong flow capability. The pump incorporates asynchronous two-pole motor architecture, SS316 shaft and bearing components, and built-in thermal protection to support continuous circulation duty. These design elements allow the system to operate as an energy efficient pool pump suitable for filtration systems that require consistent water movement, reduced maintenance intervals, and dependable operating stability.

This high-efficiency pool pump is specifically engineered for global pool equipment wholesale distributors, regional dealers, and professional aquatic project contractors.

Product Features

Flexible Model Configuration: Available in constant-speed, dual-voltage, and dual-speed models, supporting a wide range of installation requirements and electrical supply standards for global markets.

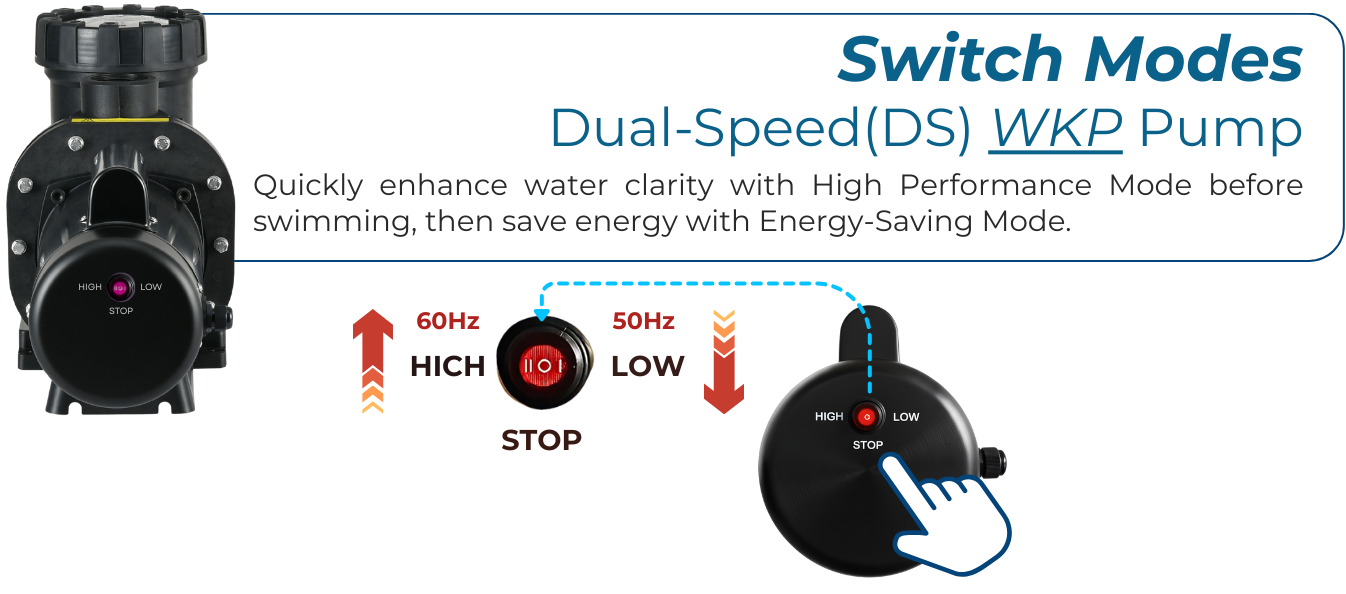

One-Touch,Dual-Speed Control: DS models function as a dual speed pool pump, featuring a manual onboard quick-switch button for seamless mode selection between energy-saving and high-performance filtration.
Energy-Efficient Hydraulic Performance: Optimized pump hydraulics and balanced motor design enable the unit to operate as a low energy pool pump, ensuring stable and efficient performance during continuous filtration cycles.
Integrated Filtration & Easy Maintenance: Built-in debris filter with transparent ring-lock lid allows quick visual inspection and efficient debris removal, reducing maintenance time and improving operational efficiency.
Durable Construction & Corrosion Resistance: Optional SS316 shaft and bearing assembly enhances resistance to chemically treated water, improving long-term durability in demanding pool environments.
Motor Protection & Installation Compatibility: Equipped with Class B insulation, built-in thermal protection, and an internal heat sink for stable operation, along with imperial and metric union connections (2"/63 mm or 1.5"/50 mm) for flexible installation and servicing.

Features
Pump Strainer Housing Material:	Corrosion-Resistant Thermoplastic
Speed Control Type:	Constant Speed / Dual Speed
Dual Voltage Model Supported:	Yes
Built-in Timer Supported:	NO
Motor Casing:	Premium Die-Cast Aluminum Alloy with Enhanced Heat Dissipation
Motor Winding:	High-Conductivity Copper Windings

Product Specifications

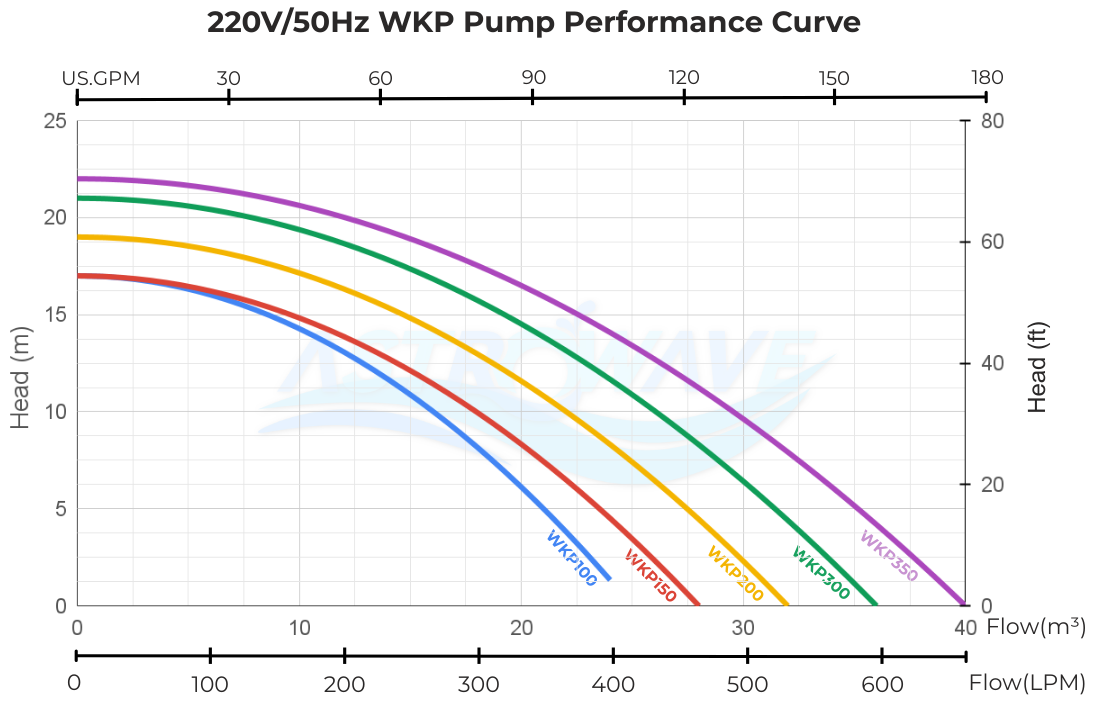

Constant-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	Max.Flow Rate			Max. Head
Constant-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	m³/h	LPM	GPM	m	ft
WKP100	0.75/1.0	Fixed 110V /220V	50 / 60Hz	50Hz-2850 / 60Hz-3450	25	417	110	17	56
WKP150	1.1/1.5	Fixed 110V /220V	50 / 60Hz	50Hz-2850 / 60Hz-3450	28	467	123	17	56
WKP200	1.5/2.0	Fixed 110V /220V /380V	50 / 60Hz	50Hz-2850 / 60Hz-3450	32	533	141	19	62
WKP300	2.2/3.0	Fixed 110V /220V /380V	50 / 60Hz	50Hz-2850 / 60Hz-3450	36	600	159	21	69
WKP350	2.6/3.5	Fixed 110V /220V /380V	50 / 60Hz	50Hz-2850 / 60Hz-3450	40	667	176	22	72

Dual-Voltage Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	Max.Flow Rate			Max. Head
Dual-Voltage Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	m³/h	LPM	GPM	m	ft
WKP100DV	0.75/1.0	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	16	267	70	13	43
WKP150DV	1.1/1.5	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	20	333	88	15	49
WKP200DV	1.5/2.0	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	24	400	106	16	52
WKP300DV	2.2/3.0	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	28	467	123	17	56
WKP350DV	2.6/3.5	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	40	667	176	22	72

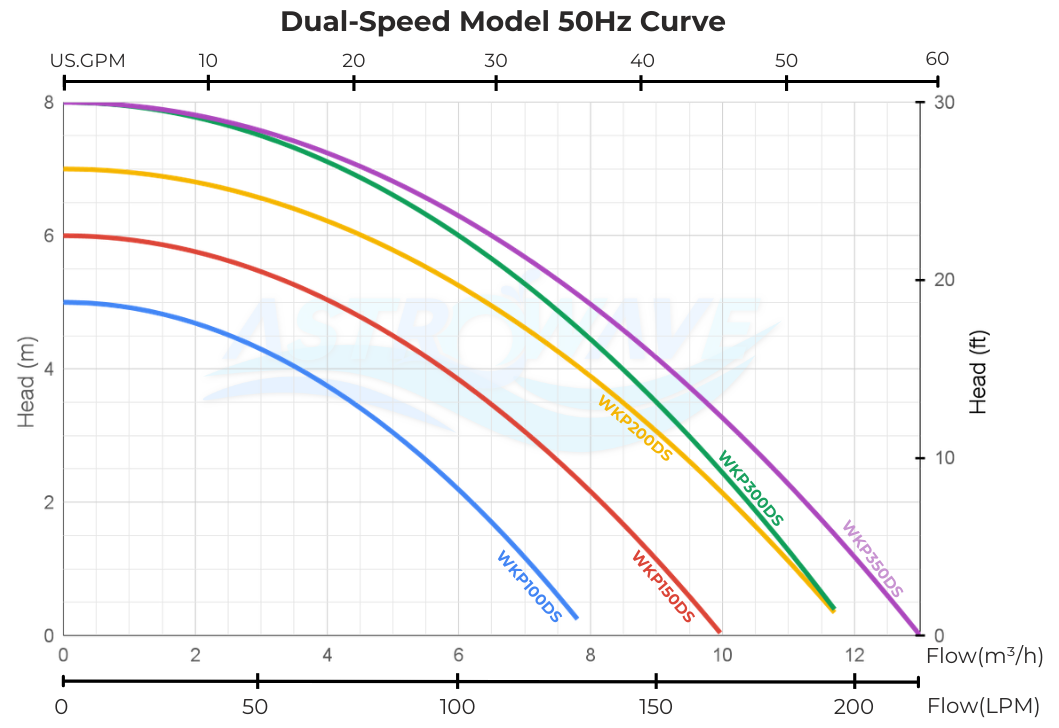

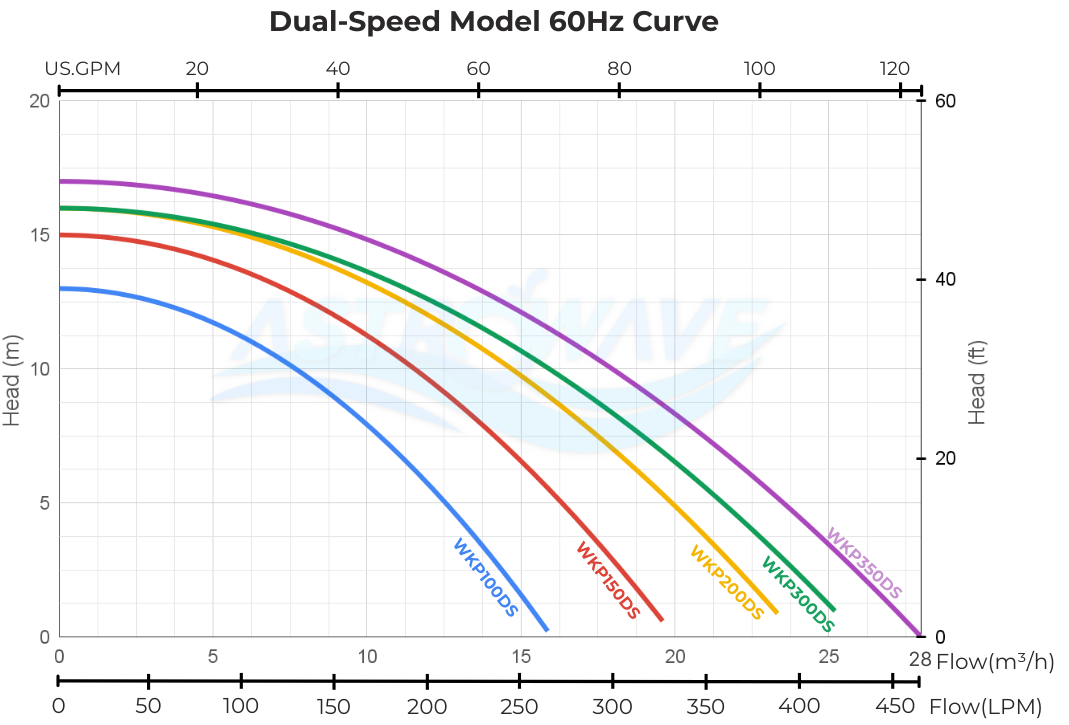

Dual-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	Max.Flow Rate			Max. Head
Dual-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	m³/h	LPM	GPM	m	ft
WKP100DS	0.75/1.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	8 16	133 267	35 70	5 13	16 43
WKP150DS	1.1/1.5	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	10 20	167 333	44 88	6 15	20 49
WKP200DS	1.5/2.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	12 24	200 400	53 106	7 16	23 52
WKP300DS	2.2/3.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	12 26	200 433	53 114	8 16	26 52
WKP350DS	2.6/3.5	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	13 28	217 467	57 123	8 17	26 56

Dimensions

Application Areas

Large residential pool installations where a pool filtration pump maintains continuous water turnover and supports sand or cartridge filtration systems.
Hotels, resorts, and aquatic leisure facilities that require a pool circulation pump to maintain stable water movement across larger filtration loops.
Public recreational pools and aquatic training facilities requiring a reliable commercial swimming pool pump capable of supporting extended operating hours.
Landscape water features and decorative aquatic systems where consistent circulation helps maintain water clarity and system stability.
Community swimming pools and fitness centers where hydraulic stability and operational reliability are required for daily filtration cycles.
Private villa pool systems where installers require compact equipment that delivers stable performance pool pump operation in residential filtration systems.

FAQ

What types of installations is the WKP Series pump designed for?

The WKP Series is designed for residential and commercial aquatic systems including backyard pools, resorts, recreational facilities, and water feature circulation systems.

Does the WKP Series include models with multiple operating speeds?

Yes. Certain models operate as a 2 speed pool pump, allowing users to select higher flow for active circulation or lower speed for energy-saving filtration cycles.

Are voltage options available for different electrical standards?

Yes. Some models are designed as a dual voltage pool pump with selectable 110V or 220V configurations, allowing installers to match regional electrical supply requirements.

How does the pump support energy-efficient operation?

Optimized hydraulic design and balanced motor performance allow the unit to function as an energy efficient pool pump while maintaining stable circulation for filtration systems.

What protection features are included in the motor?

The pump incorporates Class B motor insulation, built-in thermal protection, and internal heat dissipation components to maintain reliable operating conditions.

What maintenance features are included in the pump design?

A transparent ring-lock lid and integrated debris filter simplify routine inspection and cleaning, reducing downtime and improving maintenance efficiency.

Are you a manufacturer or a trading company?

We are a direct OEM pool pump manufacturer in China. Astrowave Pool operates its own production facilities with a strict in-house quality control system. You are always welcome to visit our factory in person, or we can arrange a real-time WhatsApp video tour of our workshop for a convenient remote inspection.

Do you support OEM and ODM customization for bulk orders?

Yes, we provide comprehensive OEM and ODM services tailored for our global B2B partners. From custom product colors and branded logos to specific carton packaging designs, our flexible production lines can accommodate your needs. As an experienced swimming pool equipment manufacturer, we focus on delivering consistent quality to help your business succeed in local markets.

What pool product does Astrowave Pool manufacture, and which markets do you export to?

As a custom pool equipment manufacturer and supplier in China, Astrowave Pool Products specializes in complete filtration and circulation systems. We focus on producing high-demand commercial and residential core products, including:

Sand Filters: Gelcoat fiberglass and bobbin-wound fiberglass sand filters.
Pool Pumps: Intelligent inverter pool pumps, dual-speed, dual-voltage, and constant-speed models.
Pool Accessories: Underwater lighting, skimmers, and hydrotherapy jets.

With over 22 years of export experience, we proudly supply reliable pool equipment to distributors, pool builders, and dealers worldwide, including the Middle East, India, Southeast Asia, Africa, the Americas, and Southern Europe.
