AWB Series
Astrowave Pool
Robust Commercial Pool Pump
The AWB Series High-Capacity Brass Pump is engineered with a molded cast copper body to ensure maximum structural integrity and long-term reliability in demanding environments. Designed for both residential and commercial installations, this durable pool pump provides a robust solution for facilities requiring high-lift performance and accelerated water injection rates. This product series is available in various power configurations ranging from 3.0 HP to 15.0 HP to support different electrical standards and operational requirements. All wetted components are constructed in brass, making it an exceptionally corrosion resistant pool pump suitable for both fresh water and salt water applications where material degradation must be minimized. Equipped with a high-capacity strainer and optimized hydraulics, the AWB series is designed to improve energy efficiency while reducing the frequency of routine maintenance. As a high-performance commercial pool pump, it features a built-in debris filter and a bolt-type lid, allowing for straightforward installation and accessibility in professional mechanical rooms.

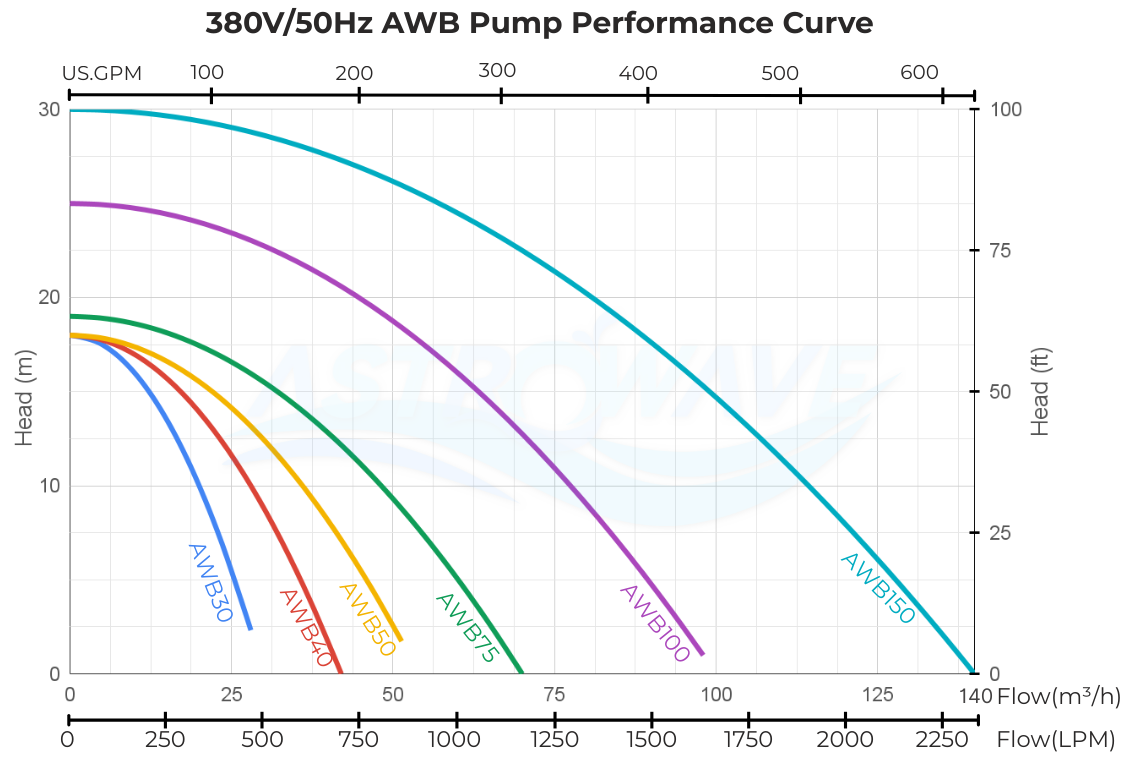

| Model | Power (KW/HP) | Voltage | Max.Flow Rate | Max. Head | Inlet | Outlet | |||
|---|---|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m | ft | |||||
| AWB30 | 2.2 / 3.0 | 220V / 380V | 30 | 500 | 132 | 18 | 59 | 2" / 63mm | 2" / 63mm |
| AWB40 | 3.0 / 4.0 | 380V | 42 | 700 | 185 | 18 | 59 | 2" / 63mm | 2" / 63mm |
| AWB50 | 3.6 / 5.0 | 380V | 54 | 900 | 238 | 18 | 59 | 3" / 90mm | 2.5" / 75mm |
| AWB75 | 5.6 / 7.5 | 380V | 70 | 1167 | 308 | 19 | 62 | 3" / 90mm | 2.5" / 75mm |
| AWB100 | 7.5 / 10 | 380V | 100 | 1667 | 440 | 25 | 82 | 4" / 110mm | 3" / 90mm |
| AWB150 | 11.2 / 15 | 380V | 140 | 2333 | 616 | 30 | 98 | 4" / 110mm | 3" / 90mm |
The AWB series offers a range of power options to accommodate large-scale installations, including a dedicated 10 hp pump for pool facilities that require a maximum flow rate of 100 cubic meters per hour.
Yes, the cast copper construction and brass wetted parts provide superior resistance to salt water corrosion compared to standard cast iron alternatives.
The unit features a high-capacity stainless steel filter basket and a bolt-type lid, designed to reduce cleaning frequency and simplify debris removal during routine checks.
This motor and housing assembly are rated for a maximum water temperature of 60°C, making it suitable for heated pools and spring water applications.
The asynchronous two-pole motor is designed for heavy-duty use as a water circulation pump, featuring an external heat sink to ensure stable performance during 24/7 operation.
