High-Efficiency Pool Pump Integrated Combo System

Share to:

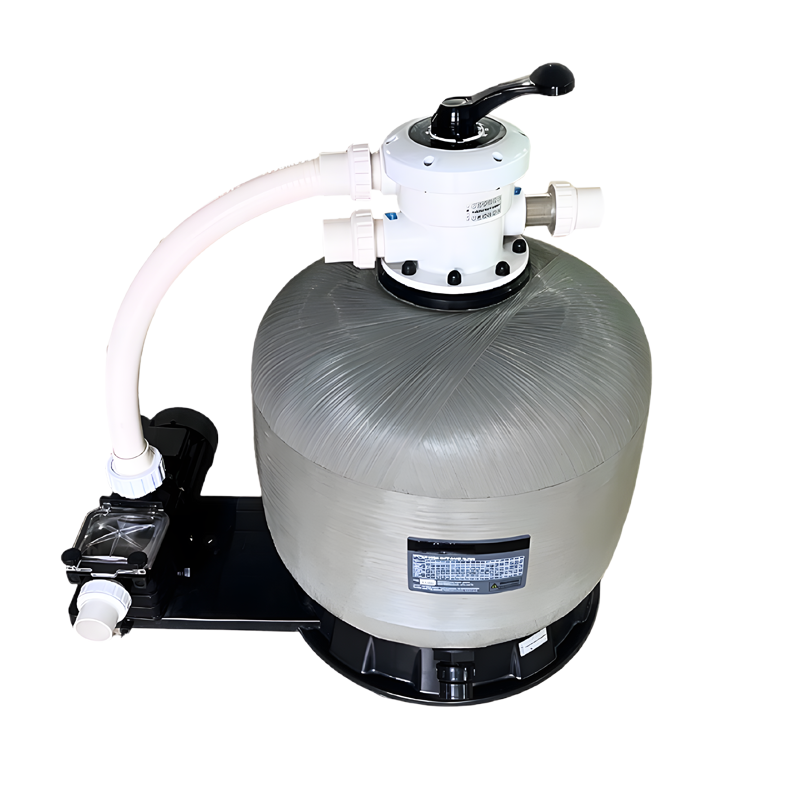

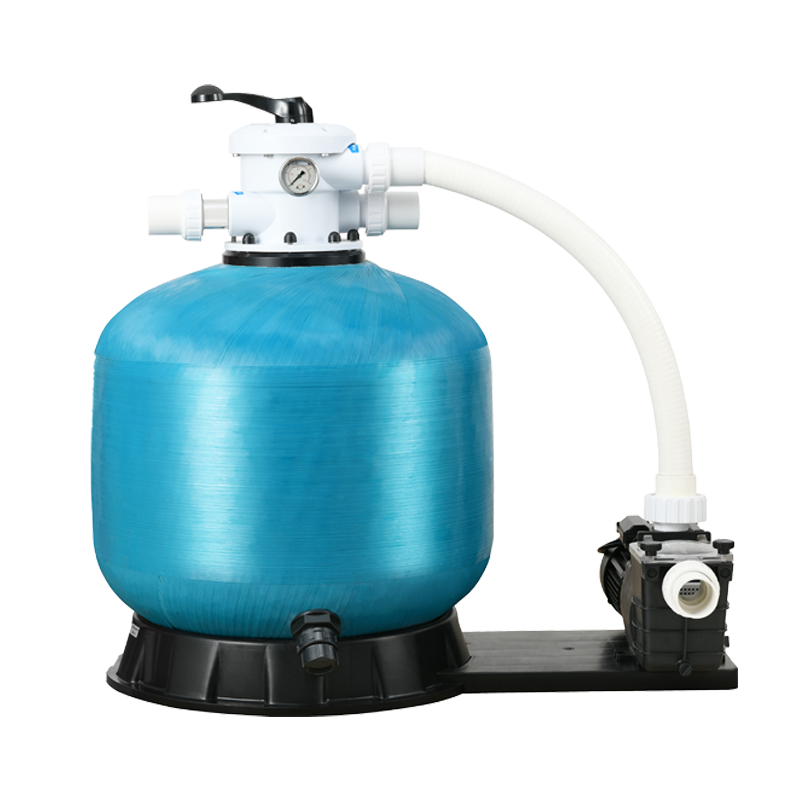

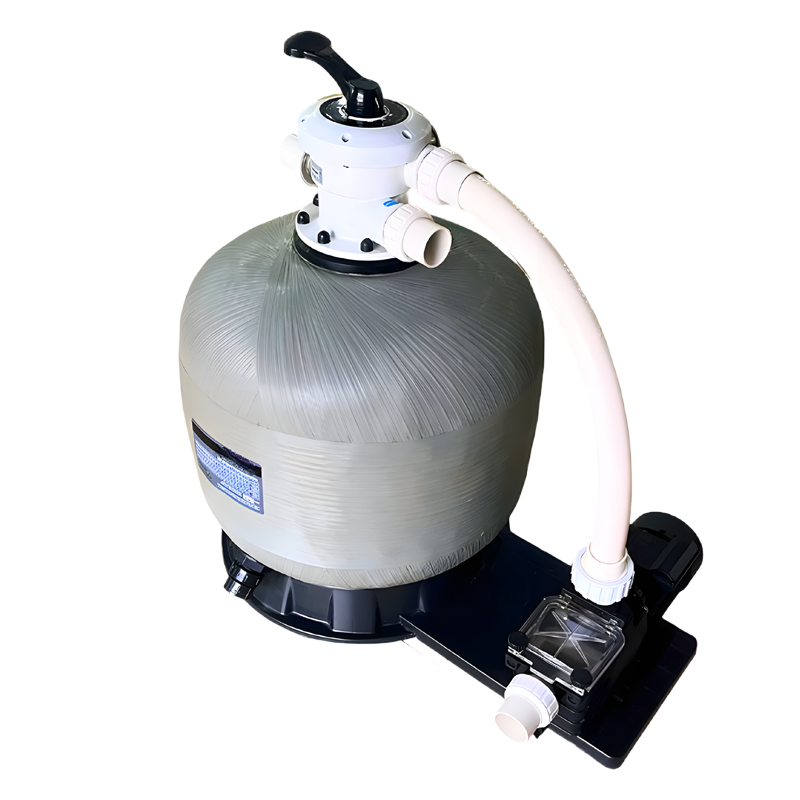

Fiberglass Sand Filter & High-Efficiency Pool Pump Integrated Combo System

The FA Series delivers a reliable water treatment solution utilizing a pre-assembled pool pump and filter combo designed specifically for small to medium aquatic installations. This product series incorporates varying configurations of SPS and KTP Series pumps paired with AW Series Top-mounted Fiberglass Filters to support different capacity and flow requirements.

Engineered with a bobbin wound reinforced fiberglass tank, the system ensures structural integrity under continuous pressure. The integration of a 6/8-way top-mounted multiport valve on this above ground pool pump and filter enables straightforward flow control and routine maintenance procedures.

Built on a sturdy base with pre-assembled plumbing, the unit provides true plug-and-play convenience for rapid deployment. This durable pool filtration set utilizes universal standard union connections and supplied fittings to ensure seamless integration into existing residential hydraulic layouts.

Availability:

Quantity:



Inquire Add to Basket

Model:
FA Series
Brand:
Astrowave Pool

Product Description

Plug-and-play Filter-pump Set

Product Description

The FA Series delivers a reliable water treatment solution utilizing a pre-assembled pool pump and filter combo designed specifically for small to medium aquatic installations. This product series incorporates varying configurations of SPS and KTP Series pumps paired with AW Series Top-mounted Fiberglass Filters to support different capacity and flow requirements. Engineered with a bobbin wound reinforced fiberglass tank, the system ensures structural integrity under continuous pressure. The integration of a 6/8-way top-mounted multiport valve on this above ground pool pump and filter enables straightforward flow control and routine maintenance procedures. Built on a sturdy base with pre-assembled plumbing, the unit provides true plug-and-play convenience for rapid deployment. This durable pool filtration set utilizes universal standard union connections and supplied fittings to ensure seamless integration into existing residential hydraulic layouts.

Product Features

Structural Tank Integrity: Constructed with bobbin wound reinforced fiberglass to handle a maximum operating pressure of 250kPa (36psi / 2.5bar) and a testing pressure of 400kPa (58psi / 4.0bar).
Advanced Flow Routing: Equipped with a top-mounted 6/8-way multiport valve to streamline daily fluid management and internal media cleaning operations.
Thermal Endurance: Engineered to withstand elevated internal fluid temperatures safely up to a maximum of 43°C (109°F).
Flexible System Architecture: Functions as a complete fiberglass sand filter combo that accommodates various operational sand capacities ranging from 35 KG up to 390 KG depending on the specified model.

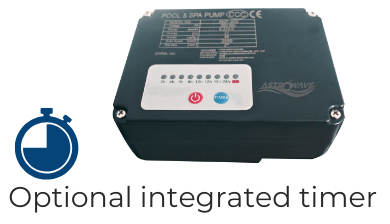

Integrated Hardware Upgrades: Operates as a high performance pool pump kit with optional integrated timers and optional pool doser capabilities supported specifically on FA750, FA800, and FA900 configurations.
Universal Connection Standards: Designed with standard union connections utilizing 1.5-inch (50mm) or 2-inch (63mm) interfaces for secure and standardized plumbing attachments.

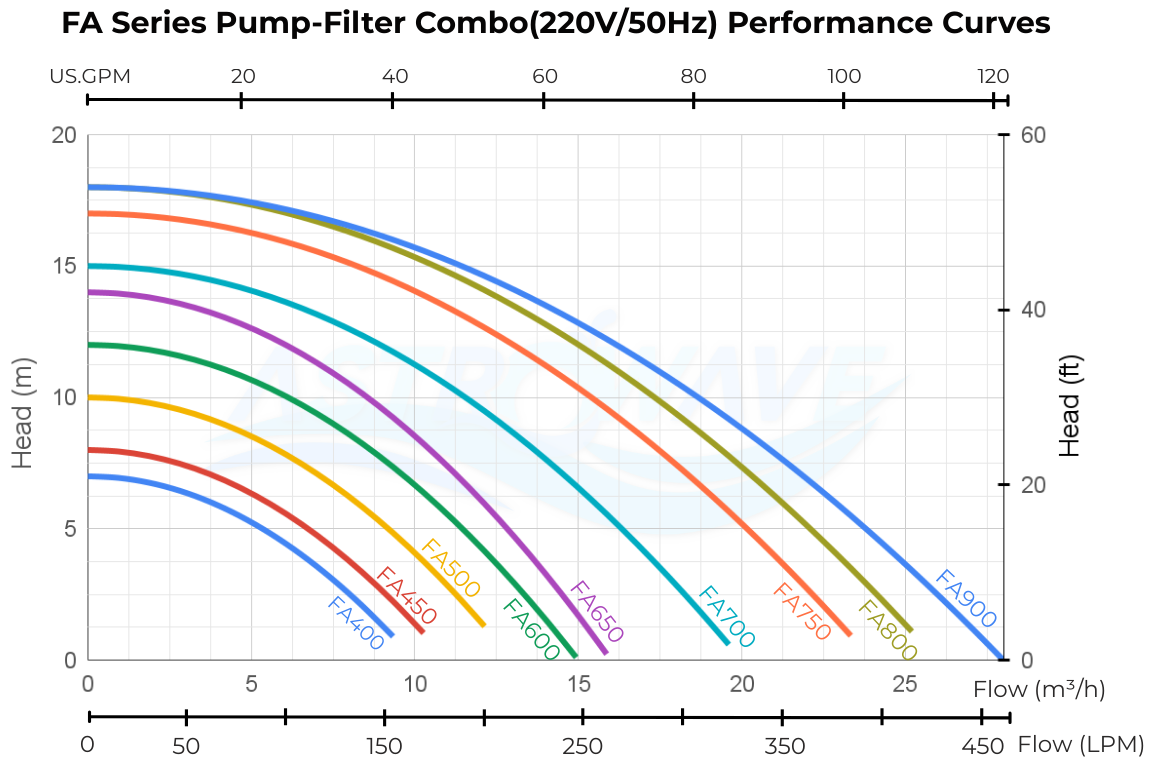

Product Specifications

Model	Configuration		Max.Flow Rate			Max Head		Connection	Sand (KG)
Model	Filter	Pump	m³/h	LPM	GPM	m	ft	Connection	Sand (KG)
FA400	AW450	SPS0500	10	167	44	7	23	1.5" / 50mm	35
FA450	AW450	SPS0750	11	183	48	8	26	1.5" / 50mm	50
FA500	AW500	SPS1000	13	217	57	10	33	1.5" / 50mm	65
FA600	AW600	SPS1250	15	250	66	12	39	1.5" / 50mm	115
FA650	AW650	SPS1500	16	267	70	14	46	1.5" / 50mm	145
FA700	AW700	SPS1500	16	267	70	14	46	1.5" / 50mm	145
FA750	AW750	KTP2001	24	400	106	17	56	2” / 63mm	225
FA800	AW800	KTP3004	26	433	114	18	59	2” / 63mm	275
FA900	AW900	KTP3004	28	467	123	18	59	2” / 63mm	390

Dimensions

PICTURE_ONLY

Application Areas

Small to medium residential above-ground pools requiring a dependable fiberglass pool filter set for daily water clarity maintenance.
Backyard recreational installations utilizing a pre-assembled pool pump and filter system to minimize installation time and DIY complexity.
Seasonal aquatic setups needing a robust fiberglass filter pump set mounted on a sturdy base for stable, continuous fluid circulation.
Residential water treatment applications requiring a top-mounted selector valve for streamlined operational control.
Larger above-ground installations utilizing the FA900 configuration to achieve maximum flow rates up to 28 cubic meters per hour.
Aquatic environments implementing optional pool doser integrations for automated chemical management on compatible high-capacity models.

FAQ

Can this system be utilized as an inground pool pump and filter kit?

The FA Series is explicitly engineered and designated as a plug-and-play convenience solution for small to medium above-ground and residential pools.

What components are standard in this pool pump filter combination?

Each unit includes either an SPS or KTP series pump, an AW series top-mounted fiberglass filter, a 6/8-way multiport selector valve, connection fittings, and a sturdy mounting base.

What are the maximum pressure ratings for the filter tank?

The reinforced fiberglass tank is rated for a maximum operating pressure of 250kPa (2.5bar) and has undergone testing up to 400kPa (4.0bar).

Are automated dosing options available for the FA Series?

Yes, an optional pool doser configuration is available exclusively for the higher-capacity FA750, FA800, and FA900 models.

What sizes are the standard plumbing connection unions?

The equipment utilizes universal standard union connections sized at either 1.5 inches (50mm) or 2 inches (63mm), depending on the specific model's flow requirements.
