Anti-Slip Stainless Steel Swimming Pool Ladder

The Astrowave series provides a robust pool ladder solution engineered for reliable access in both residential and commercial aquatic environments. This product series is available in SF, SL, and MU configurations with multiple installation fixture options to support different deck requirements.

Each handrail is meticulously manufactured as a premium stainless steel pool ladder, offering superior structural strength and long-term performance. Buyers can select between mirror-polished or satin-brushed tubing finishes to match the aesthetic and functional demands of the facility.

To prioritize secure footing, the equipment features an inward-facing anti slip pool ladder design equipped with threaded step surfaces. Three kinds of treads are available, including plastic, standard metallic, and reinforced versions with dedicated traction pads to accommodate varying user needs.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Astrowave Pool

Product Description

Superior Safety and Durability for Your Pool

Product Description

The Astrowave series provides a robust pool ladder solution engineered for reliable access in both residential and commercial aquatic environments. This product series is available in SF, SL, and MU configurations with multiple installation fixture options to support different deck requirements. Each handrail is meticulously manufactured as a premium stainless steel pool ladder, offering superior structural strength and long-term performance. Buyers can select between mirror-polished or satin-brushed tubing finishes to match the aesthetic and functional demands of the facility. To prioritize secure footing, the equipment features an inward-facing anti slip pool ladder design equipped with threaded step surfaces. Three kinds of treads are available, including plastic, standard metallic, and reinforced versions with dedicated traction pads to accommodate varying user needs.

Product Features

Flexible Model Configuration: Available in SF, SL, and MU profiles with either concrete embedded anchors or bolted flange fixtures to support different installation requirements.
Material Specificity: Manufactured as a heavy-duty 304 stainless steel pool ladder utilizing 1.0 mm or 1.2 mm tubing for standard freshwater facility integration.
Premium Finishes: Tubing is available in mirror-polished or satin-brushed surface treatments to provide both aesthetic appeal and environmental protection.
Environmental Protection: Serves as a highly reliable corrosion resistant pool ladder when configured with optional high-grade materials for demanding chemical conditions.
Hardware Concealment: All deck mounting fixtures and bolts are cleanly concealed by matching metallic escutcheons for a professional and secure installation.
Tread Variety: Offers three distinct step options, allowing facility managers to specify the exact level of foot traction required for the application.

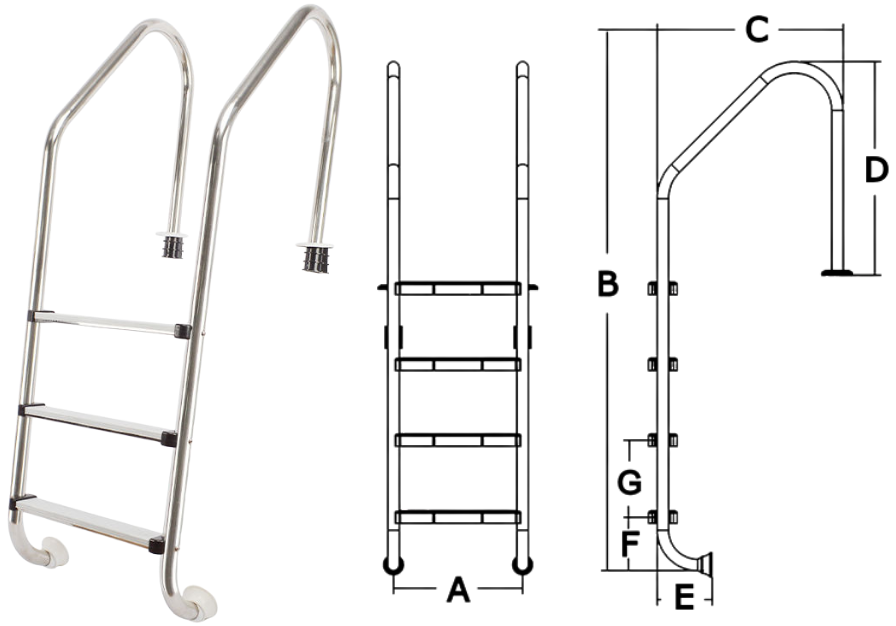

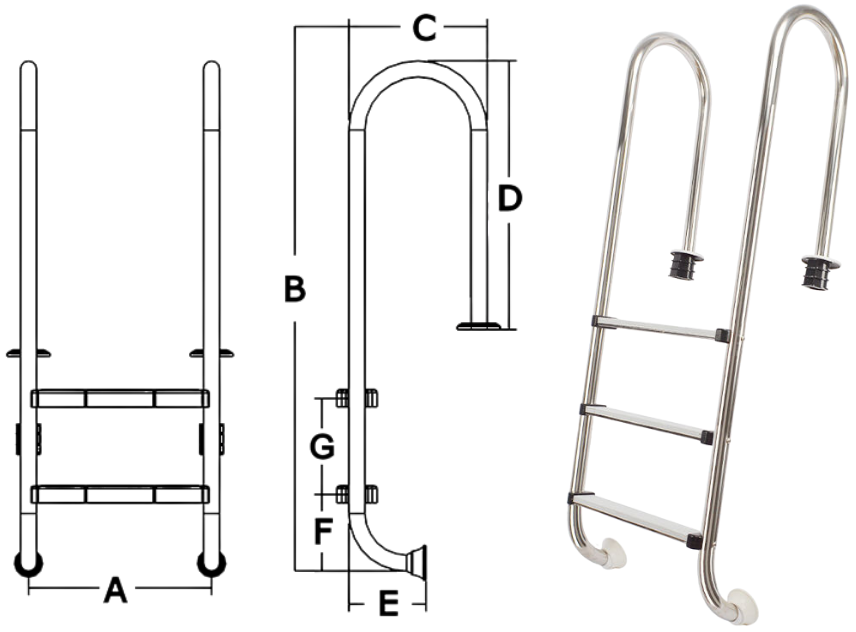

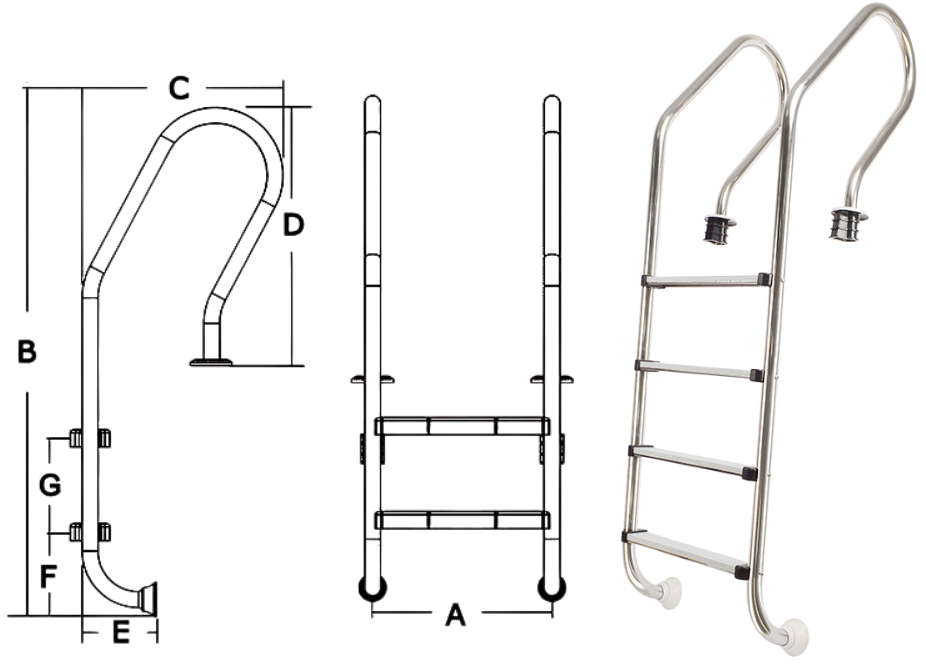

Product Specifications

Model	A	B	C	D	E	F	G	Packing(mm)	G.W
Model	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	Packing(mm)	(kg)
SF215	500	1330	592	700	180	190	250	1430x710x60	10.6
SF315	500	1580	592	700	180	190	250	1680x710x60	11.6
SF415	500	1830	592	700	180	190	250	1930x710x60	12.6
SF515	500	2080	592	700	180	190	250	2180x710x60	13.6

Model	A	B	C	D	E	F	G	Packing(mm)	G.W
Model	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	Packing(mm)	(kg)
SL215	500	1300	592	700	180	190	250	1430x710x60	10.2
SL315	500	1550	592	700	180	190	250	1680x710x60	11.2
SL415	500	1800	592	700	180	190	250	1930x710x60	12.2
SL515	500	2050	592	700	180	190	250	2180x710x60	13.2

Model	A	B	C	D	E	F	G	Packing(mm)	G.W
Model	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	Packing(mm)	(kg)
MU215	500	1300	314	700	180	190	250	1430x710x60	10.5
MU315	500	1550	314	700	180	190	250	1680x710x60	11.5
MU415	500	1800	314	700	180	190	250	1930x710x60	12.5
MU515	500	2050	314	700	180	190	250	2180x710x60	13.5

Safty Pool Ladder Accessories

Application Areas

Municipal recreation centers managing high bather loads requiring a durable non slip swimming pool ladder to ensure safe entry and exit during public swim sessions.
Luxury resort complexes upgrading deck infrastructure with an inground pool ladder to provide stable and aesthetically pleasing deep-end access.
Commercial hydrotherapy facilities utilizing elevated water temperatures needing reliable metallic handrails for patient support.
Olympic training venues demanding rigorous structural stability and specific tube profiling to match standard competition deck layouts.
Residential community aquatic spaces requiring concealed flange mount installations to maintain a clean deck appearance without exposed hardware.
Coastal hotel properties exposing equipment to airborne salinity demanding robust fixture solutions to prevent premature degradation.

FAQ

What materials are recommended for saltwater installations?

For environments with seawater or high-salinity conditions, we strongly recommend specifying the 1.5mm tubing 316 stainless steel pool ladder to prevent accelerated oxidation.

What installation methods are supported by this series?

The equipment can be easily installed either with traditional anchors embedded directly into the concrete deck or via bolted flanges.

Are different size options available for varying depths?

Yes, the series accommodates multiple depth profiles, including the popular 3 step pool ladder configuration corresponding to model numbers ending in 315.

How does the design enhance user security during use?

The system operates as an engineered safety pool ladder by utilizing inward-facing threaded step surfaces to maximize foot grip in wet conditions.
