Compact All-in-One Pool System with Filtration & Disinfection

The AC Series is an advanced plug and play pool system engineered specifically for residential and semi-commercial aquatic facilities facing strict spatial restrictions. By consolidating multiple core operational functions into a single factory-tested platform, this equipment eliminates the need for sprawling plant rooms while delivering reliable and continuous water circulation.

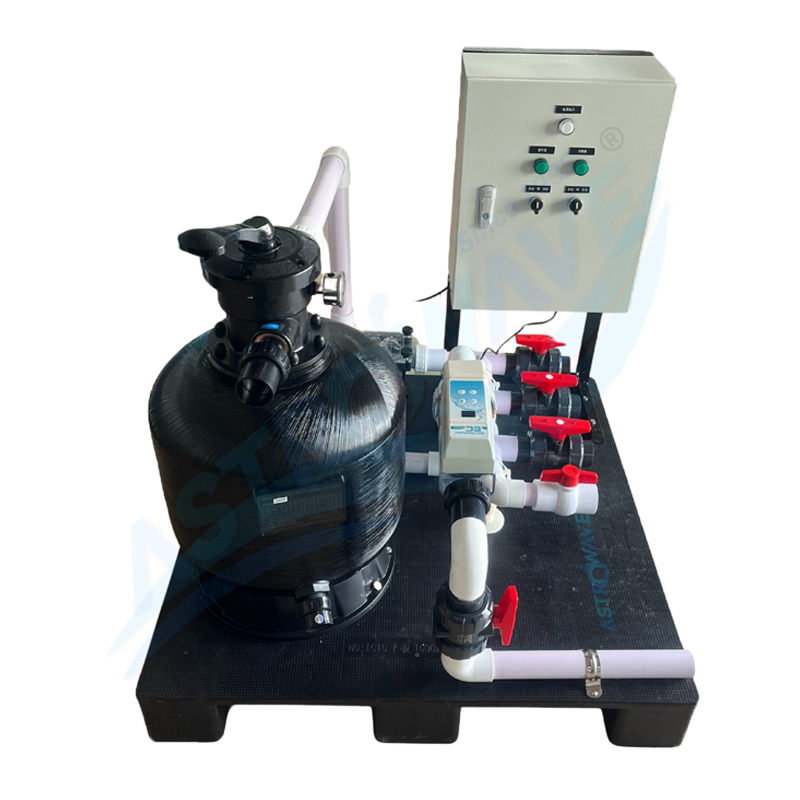

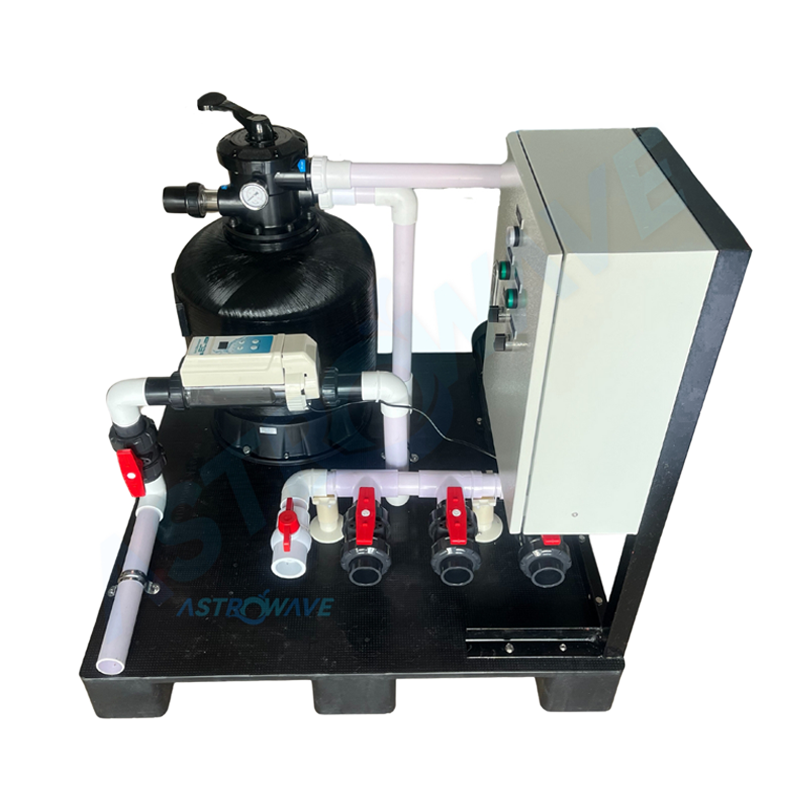

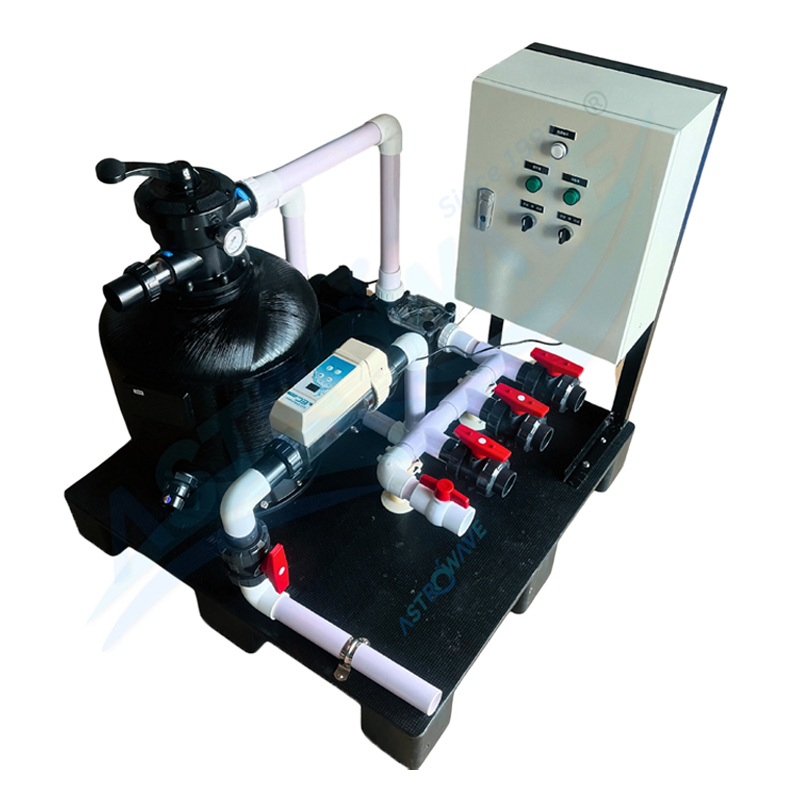

Designed to simplify on-site commissioning, this integrated pool system mounts an SPS Series circulation unit, an AW Series fiberglass tank, and a dedicated electrical control cabinet onto a sturdy 1M x 1M base. This product series is available in 110V and 220V fixed voltage configurations to support different regional electrical standards without requiring customized wiring modifications.

To maintain optimal chemical balance and water clarity, the unit functions as a comprehensive pool filtration and disinfection system by incorporating an EC Series chlorine generator capable of producing 8 grams per hour. Operators can manage this equipment through the centralized control panel, utilizing both manual control parameters and automatic operational scheduling, with an optional integrated pump timer available for enhanced automation.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Astrowave Pool

Product Description

Compact Design-All in One

Product Description

The AC Series is an advanced plug and play pool system engineered specifically for residential and semi-commercial aquatic facilities facing strict spatial restrictions. By consolidating multiple core operational functions into a single factory-tested platform, this equipment eliminates the need for sprawling plant rooms while delivering reliable and continuous water circulation. Designed to simplify on-site commissioning, this integrated pool system mounts an SPS Series circulation unit, an AW Series fiberglass tank, and a dedicated electrical control cabinet onto a sturdy 1M x 1M base. This product series is available in 110V and 220V fixed voltage configurations to support different regional electrical standards without requiring customized wiring modifications. To maintain optimal chemical balance and water clarity, the unit functions as a comprehensive pool filtration and disinfection system by incorporating an EC Series chlorine generator capable of producing 8 grams per hour. Operators can manage this equipment through the centralized control panel, utilizing both manual control parameters and automatic operational scheduling, with an optional integrated pump timer available for enhanced automation.

Product Features

Space-Saving Platform: Built on a sturdy 1M x 1M base, this pre-assembled pool filter system significantly minimizes equipment pad footprints by combining pump, filtration, disinfection, control, and piping into one centralized unit.
Factory-Integrated Layout: Engineered as a highly organized filter-pump set that reduces complex on-site piping requirements, minimizing installation time and streamlining daily maintenance procedures through accessible component mounting.

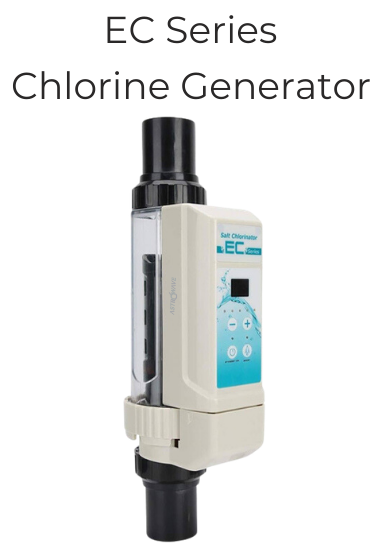

Automated Sanitization: Equipped with an EC Series chlorine generator rated at an 8g/h output capacity, providing continuous, reliable water disinfection integrated directly into the main circulation line.
Advanced Mechanical Filtration: Utilizes an AW Series fiberglass filter tank loaded with standard filter sand, managed by an 8-way top-mounted multiport valve for diverse backwashing and rinsing operations.

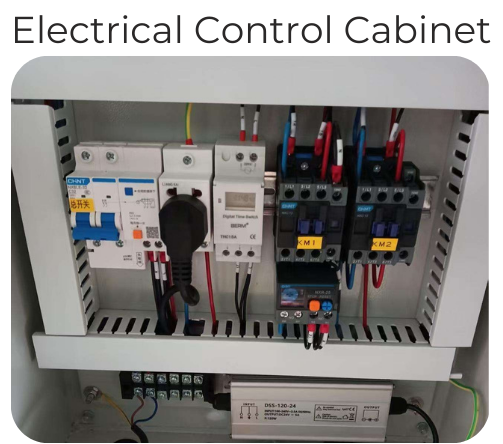

Centralized Electrical Control: Features a dedicated electrical control cabinet that supports flexible operation modes, allowing facility managers to switch between manual overrides and automatic running schedules.
Standardized Piping Integration: Designed with universal 1.5-inch (50 mm) port sizes across all hydraulic components to ensure straightforward connections with existing facility manifolds.

Product Specifications

Model	Pump Power	Pump Voltage	Pump Model	Filter Model	Port Size	Applicable Pool
AC24Q	0.5 HP	110V / 220V	SPS0500	AW400	1.5" / 50mm	3170~6340 Gal / 12~24 m³
AC30Q	0.75 HP	110V / 220V	SPS0750	AW450	1.5" / 50mm	5283~7925 Gal / 22~30 m³
AC36Q	1.0 HP	110V / 220V	SPS1000	AW525	1.5" / 50mm	7396~9510 Gal / 28~36 m³

Dimensions

PICTURE_ONLY

Application Areas

Residential developments with strict spatial limitations utilizing a compact Integrated filtration system to maintain optimal water clarity without requiring dedicated plant room construction.
Semi-commercial aquatic facilities managing limited equipment footprints that need a comprehensive pool equipment package to consolidate circulation, disinfection, and electrical control onto a single base.
Boutique hotel swimming pools adopting a complete pool equipment set to quickly upgrade existing infrastructure via simplified power and water connections, reducing installation downtime.
Small-scale apartment complex pools operating with an SPS Series pump and AW Series fiberglass tank combination for reliable, daily mechanical filtration across volumes ranging from 12 to 36 cubic meters.
Outdoor community recreation venues relying on integrated electrical control cabinets and automatic EC Series chlorine generators to minimize daily manual chemical dosing tasks.

FAQ

What components are included in the AC Series?

This robust pump filter combo combines an SPS Series pool pump, an AW Series fiberglass filter loaded with sand, an EC Series chlorine generator, a piping manifold, and an electrical control cabinet mounted on a sturdy 1M x 1M base.

What is the capacity of the integrated chlorine generator?

The included EC Series chlorine generator provides an output rate of 8g/h, ensuring continuous and automated sanitation directly within the main water filtration system.

Is the AC Series compatible with different electrical infrastructures?

This product series is not dual voltage. It is available in fixed 110V and fixed 220V configurations to support specific regional electrical installation requirements prior to deployment.

What pool sizes are suitable for these equipment models?

The technical configurations are engineered for small-scale to semi-commercial pools, with the largest AC36Q model safely managing fluid loads for basins up to 36 cubic meters (9510 gallons).

Does this equipment require a dedicated plant room?

No, the system is engineered specifically for space-restricted or plant-room-free installations, relying on a unified factory-integrated layout that can be placed outdoors or in confined equipment pads.

What plumbing dimensions are standard across this series?

All hydraulic connections, including the 8-way top-mounted multiport valve and integrated piping framework, utilize standardized 1.5-inch (50 mm) port sizes to facilitate straightforward installation.
