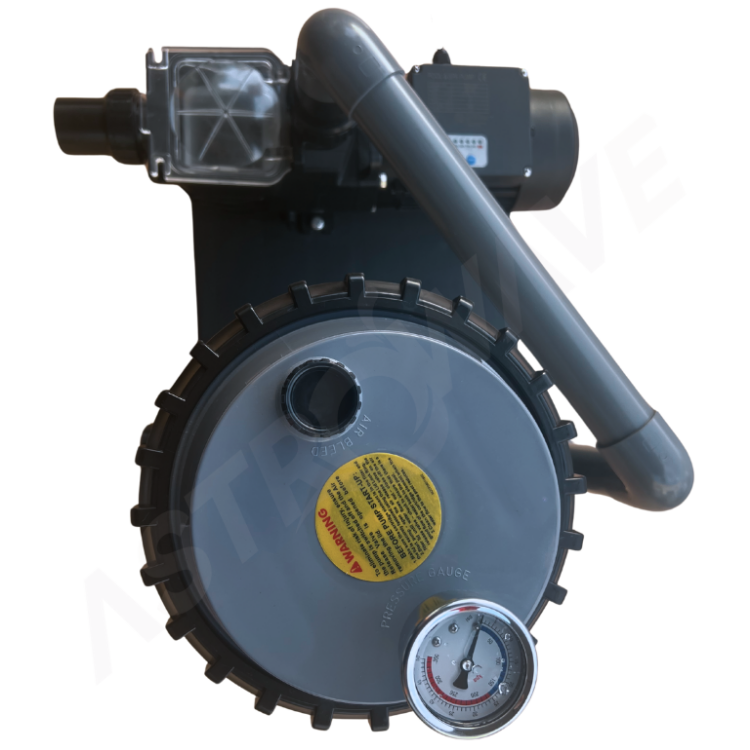

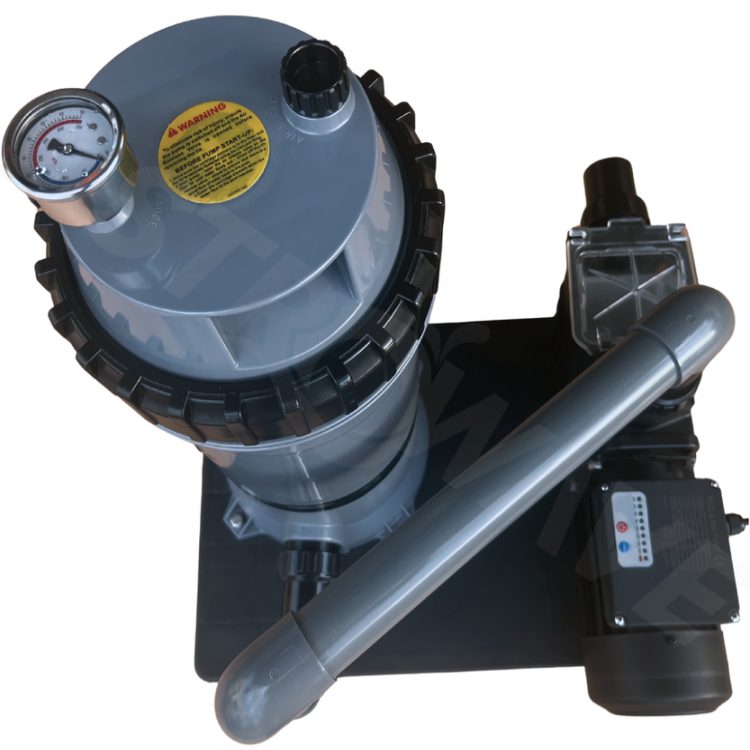

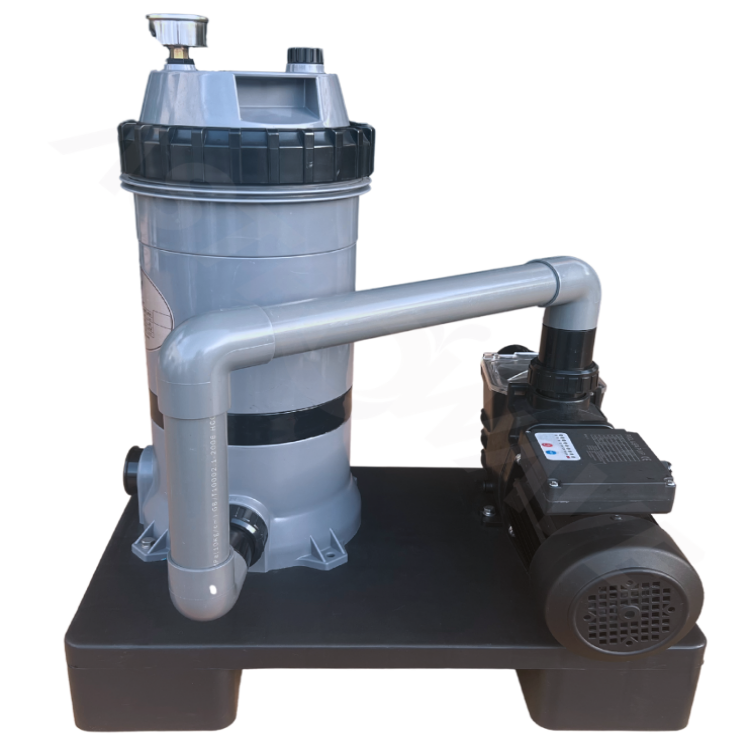

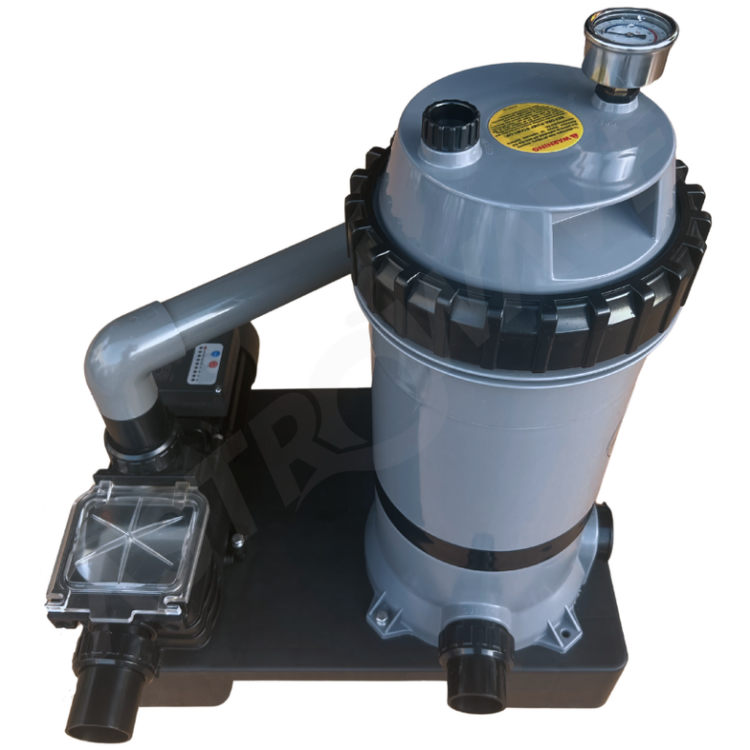

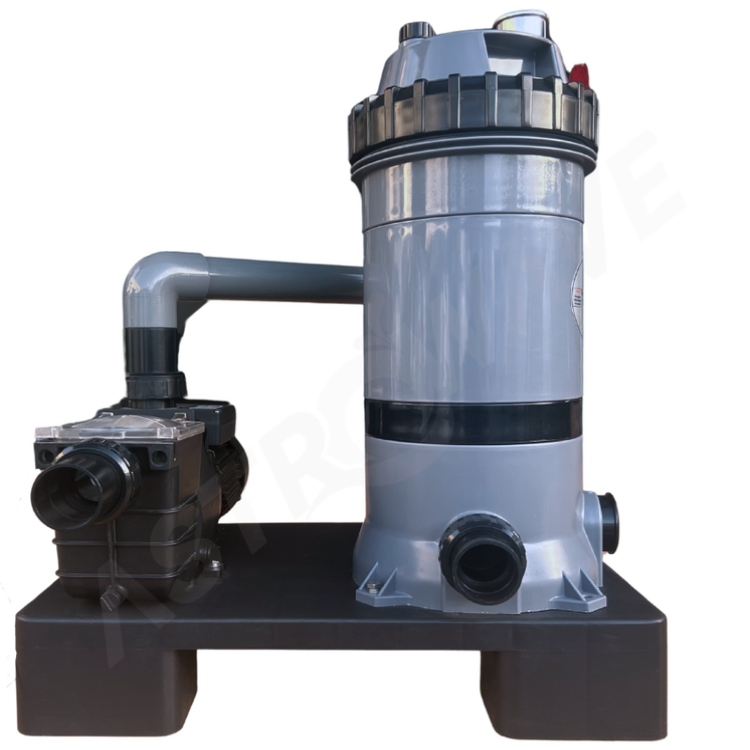

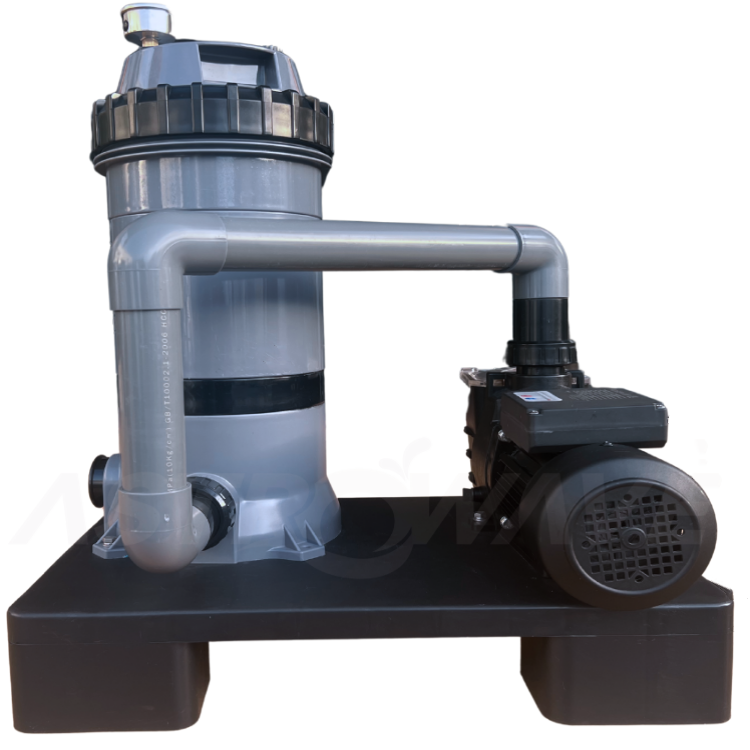

FC Series Compact Above Ground Pool Pump and Cartridge Filter Set

Q: What is the maximum operating pressure for the FC Series tank?

The UV-resistant plastic tank used in this pool pump and filter system is structurally engineered to safely sustain a maximum operating pressure of 36 psi (250kPa / 2.5 bar) during continuous mechanical filtration cycles.

Q: Are you a manufacturer or a trading company?

We are a 100% direct pool product China manufacturer with our own production facilities and strict in-house quality control system. Customers are always welcome to visit our factory, and we also support real-time workshop tours via WhatsApp for convenient remote inspection.

Q: Do you support OEM and ODM customization for bulk orders?

Yes, as an experienced swimming pool equipment manufacturer and supplier, we provide full OEM and ODM services for bulk orders. Customization options include product color, branding/logo, and carton packaging design. As a reliable pool pump and filter manufacturer, we ensure flexible production and consistent quality to meet different market requirements.

Q: What pool equipment does Astrowave Pool manufacture, and which markets do you export to?

Astrowave Pool specializes in a comprehensive range of pool filtration and circulation systems.Our core product lines include pool sand filters such as gelcoat fiberglass sand filters and bobbin-wound fiberglass media filters for pool filtration, as well as hydraulic pool pumps including inverter pool pumps, smart pool pumps, dual speed pool pumps, and dual voltage pool pumps. We also produce underwater pool lighting and plastic pool fittings such as skimmers and hydrotherapy jets, supporting a complete pool system solution.With over 22 years of pool product export experience, we are a reliable pool equipment supplier trusted by pool industry buyers worldwide including the Middle East, India, Southeast Asia, Africa, the United States, Mexico, and Southern Europe.

The FC Series represents an economical, reliable water management solution configured specifically as a pre-assembled pool pump and filter set for small to medium above-ground and residential pools. This modular system integrates an SPS Series circulation unit with an AF Series housing, mounted together on a robust base to deliver consistent mechanical filtration with minimal spatial requirements.

Engineered for precision water treatment, the cartridge filter system utilizes a specialized internal element accessed via a heavy-duty ring-lock lid, significantly streamlining routine maintenance and inspection procedures. The operational parameters are continuously monitored through an oil-filled pressure gauge that delivers clear and accurate pressure readings, while a screw-type air bleed valve enables smooth and efficient air release from the internal chamber.

Designed to maximize installation efficiency, this above ground pool filter pump features true plug-and-play convenience with pre-assembled plumbing and universal connection fittings. Various configurations are available across the series to suit different pool sizes and flow requirements, and the system can be upgraded with an optional integrated timer to automate daily circulation cycles.

Availability:

Quantity:



Inquire Add to Basket

Model:
FC Series
Brand:
Astrowave Pool

Product Description

Compact & Lightweight Above Ground Pool Pump and Cartridge Filter Set

Product Description

The FC Series represents an economical, reliable water management solution configured specifically as a pre-assembled pool pump and filter set for small to medium above-ground and residential pools. Functioning as a high-efficiency pool pump filter set, this modular system integrates an SPS Series circulation unit with an AF Series housing, mounted together on a robust base to deliver consistent mechanical filtration with minimal spatial requirements.

Engineered for precision water treatment, this advanced cartridge filter system utilizes a specialized internal element accessed via a heavy-duty ring-lock lid, significantly streamlining routine maintenance and inspection procedures. The operational parameters are continuously monitored through an oil-filled pressure gauge that delivers clear and accurate pressure readings, while a screw-type air bleed valve enables smooth and efficient air release from the internal chamber.

Designed to maximize installation efficiency, this above ground pool filter pump features true plug-and-play convenience with pre-assembled plumbing and universal connection fittings. Various configurations are available across the series to suit different pool sizes and flow requirements, and the system can be upgraded with an optional integrated timer to automate daily circulation cycles.

Product Features

Modular Component Architecture: Functions as a highly efficient compact pool filter combo, integrating an SPS pool pump and an AF Series UV-resistant plastic tank on a single sturdy base to optimize the equipment pad footprint.
Advanced Monitoring Instrumentation: Equipped with a reliable oil-filled pressure gauge to deliver clear pressure readings, paired with a screw-type air bleed valve designed for efficient internal air release during system priming.
Durable Material Construction: The primary containment vessel of this pool filtration set is manufactured from UV-resistant plastic to withstand continuous outdoor environmental exposure while safely processing fluid loads up to a maximum operating pressure of 250kPa (2.5 bar).
Streamlined Maintenance Access: Features a heavy-duty ring-lock lid that safely secures the tank housing, enabling fast and effortless access to the internal cartridge element for routine cleaning and rapid operational turnaround.
Universal Plumbing Integration: This pre-assembled swimming pool pump and filter ships standard with universal union connections sized at 1.5 inches (50 mm), facilitating rapid integration into standard above-ground piping manifolds.

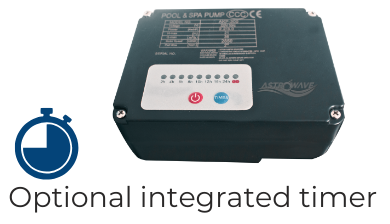

Automated Operational Control: Can be customized with an optional integrated timer module to automatically manage daily circulation schedules, reducing manual oversight and ensuring consistent water turnover.

System Configuration
Filter Series:	Cartridge Filter - AF Series
Pump Series:	SPS Series (Other pump series available upon request)
Base Material:	Corrosion-Resistant Thermoplastic

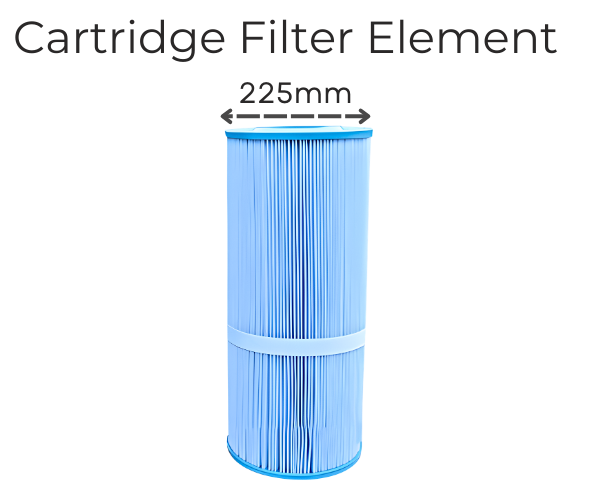

Cartridge Filter Element:	1 pc

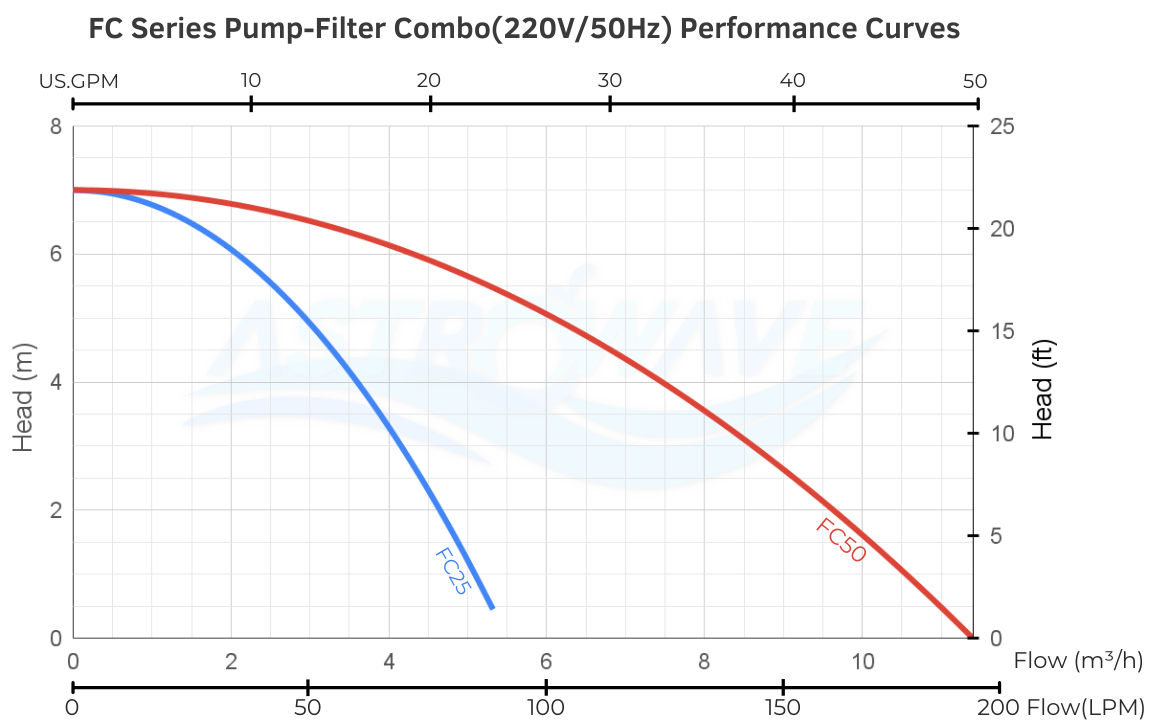

Product Specifications

Model	Configuration		Max.Flow Rate			Max Head		Connection	A (mm)	B (mm)	C (mm)
Model	Filter	Pump	m³/h	LPM	GPM	m	ft	Connection	A (mm)	B (mm)	C (mm)
FC25	AF25	SPS0500	6	100	26	7	23	1.5" / 50mm	600	550	560
FC50	AF50	SPS0500	11	190	48	7	23	1.5" / 50mm	600	730	560

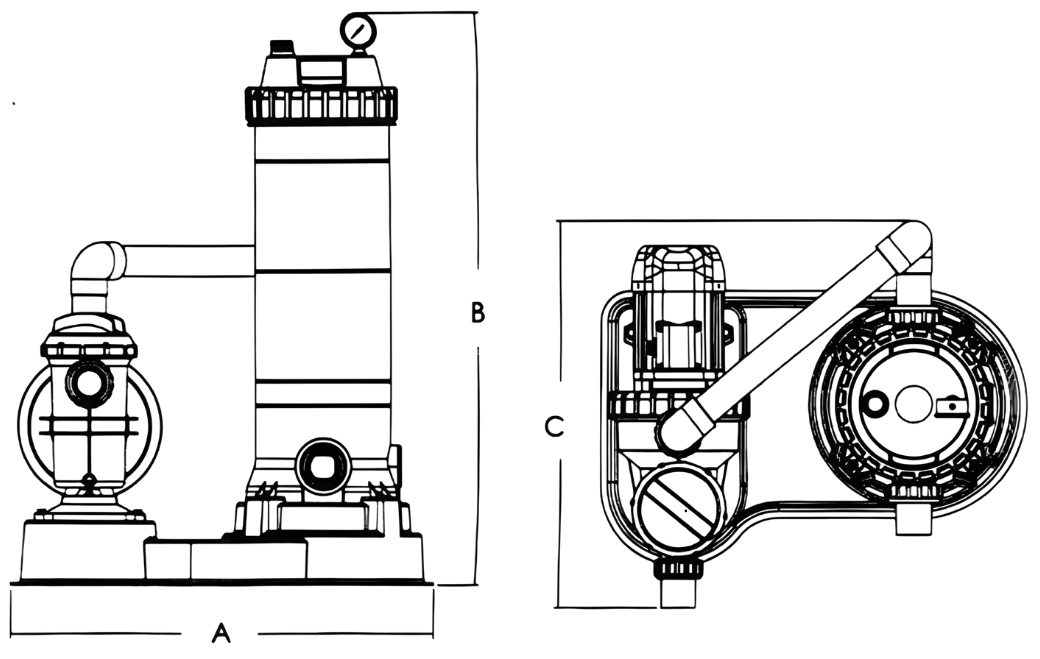

Dimensions

Application Areas

Light-duty residential facilities utilizing a small pool filtration system to maintain consistent water clarity and manage continuous flow rates up to 11 cubic meters per hour.
Temporary or seasonal above-ground basins requiring a portable pool filter pump that features plug-and-play convenience and pre-assembled plumbing for rapid, tool-minimal deployment.
Boutique residential wellness centers deploying a cartridge filter pump for pool setups, leveraging the UV-resistant plastic housing and durable base for long-term outdoor installations.
Hotel outdoor recreation areas requiring a lightweight pool pump and cartridge filter combo that enables easy DIY installation by on-site facility maintenance staff without specialized external contractors.
Community aquatic enclosures operating in warm climates where the filtration hardware and internal elements must sustain stable fluid delivery up to a maximum temperature of 40°C.

FAQ

What is the maximum operating pressure for the FC Series tank?

The UV-resistant plastic tank used in this pool pump and filter system is structurally engineered to safely sustain a maximum operating pressure of 36 psi (250kPa / 2.5 bar) during continuous mechanical filtration cycles.

How is trapped air purged from the filtration equipment?

The integrated pool pump and filter features a built-in screw-type air bleed valve designed to enable smooth and efficient air release from the system housing during initial startup or routine maintenance.

What piping dimensions are required for this installation?

All models in the FC Series utilize a universal standard union connection tailored for 1.5-inch (50 mm) plumbing configurations to facilitate straightforward integration with existing structural manifolds.

Is this equipment suitable for bulk procurement for residential projects?

Yes, B2B distributors frequently source this unit as a wholesale pool filter set due to its economical plug-and-play design, pre-assembled plumbing, and varied capacity options up to 190 LPM.

What is the maximum water temperature limit for safe operation?

The internal components, including the cartridge element, structural housing, and associated hydraulic hardware, are rated to process continuous fluid flow up to a maximum water temperature of 40°C (104°F).

Are you a manufacturer or a trading company?

We are a direct pool pump and filter manufacturer in China. Astrowave Pool operates its own production facilities with a strict in-house quality control system. You are always welcome to visit our factory in person, or we can arrange a real-time WhatsApp video tour of our workshop for a convenient remote inspection.

Do you support OEM and ODM customization for bulk orders?

Yes, we provide comprehensive OEM and ODM services tailored for our global B2B partners. From custom product colors and branded logos to specific carton packaging designs, our flexible production lines can accommodate your needs. As an experienced swimming pool equipment manufacturer, we focus on delivering consistent quality to help your business succeed in local markets.

What pool product does Astrowave Pool manufacture, and which markets do you export to?

As a trusted pool equipment manufacturer in China, Astrowave Pool Products specializes in complete filtration and circulation systems. We focus on producing high-demand commercial and residential core products, including:

Sand Filters: Gelcoat fiberglass and bobbin-wound fiberglass sand filters.
Pool Pumps: Smart inverter pool pumps, dual-speed, dual-voltage, and constant-speed models.
Pool Accessories: Underwater lighting, skimmers, and hydrotherapy jets.

With over 22 years of export experience, we proudly supply premium pool equipment to distributors, pool builders, and dealers worldwide, including the Middle East, India, Southeast Asia, Africa, the Americas, and Southern Europe.
