FG Series
Astrowave Pool

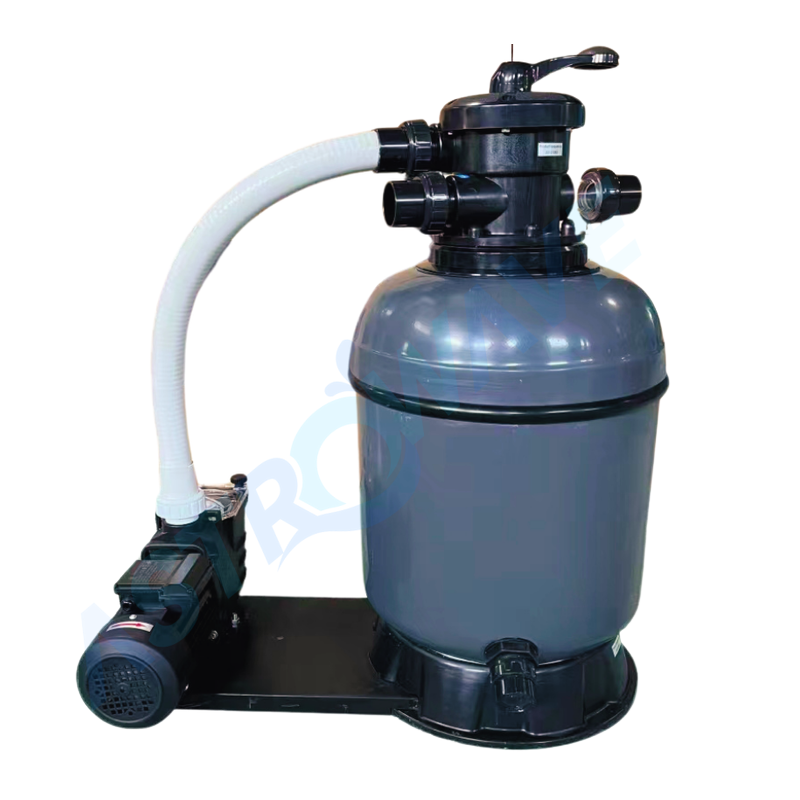

A corrosion-resistant gel-coated fiberglass filtration system integrated with a high-efficiency circulation pump.

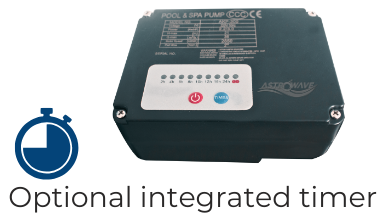

The FG Series represents an economical, reliable water management solution configured specifically as a high-performance pool pump and sand filter combo for small to medium above-ground and residential pools. Building upon the foundational architecture of the FA Series, this upgraded system integrates an SPS Series pump with an AGF Series top-mounted tank to deliver consistent mechanical filtration. Constructed to withstand demanding environmental conditions, the upgraded gelcoat sand filter features a non-corrosive, smooth-finish fiberglass exterior that provides superior durability. The specialized UV-resistant materials ensure a prolonged service life, maintaining structural integrity and operational stability even under continuous sunlight exposure in outdoor residential or SPA applications. Designed to maximize installation efficiency, this comprehensive pool filtration system combo delivers true plug-and-play convenience for facility owners. Each unit features pre-assembled plumbing and connection fittings securely mounted on a sturdy base, allowing for streamlined DIY installation while offering an optional integrated timer to automate daily circulation cycles.

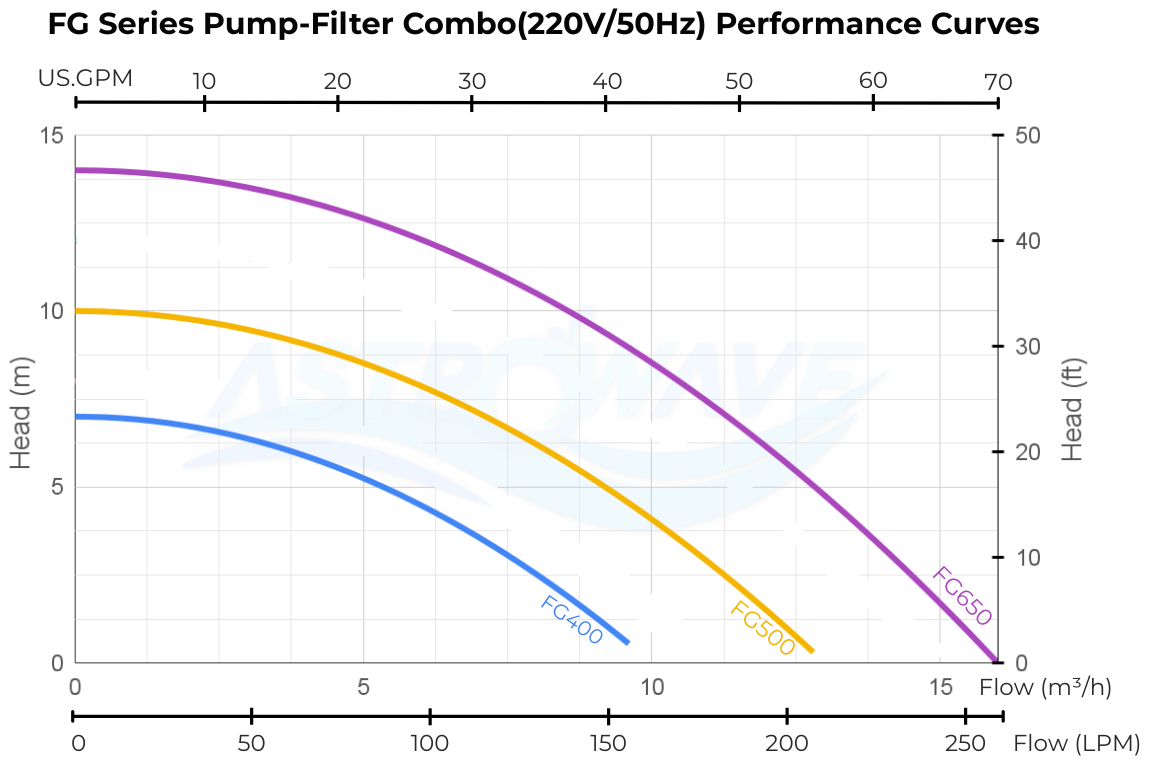

| Model | Configuration | Max.Flow Rate | Max Head | Connection | Sand (KG) | ||||
|---|---|---|---|---|---|---|---|---|---|
| Filter | Pump | m³/h | LPM | GPM | m | ft | |||
| FG400 | AGF400 | SPS0500 | 10 | 167 | 44 | 7 | 23 | 1.5" / 50mm | 35 |
| FG500 | AGF500 | SPS1000 | 13 | 217 | 57 | 10 | 33 | 1.5" / 50mm | 65 |
| FG650 | AGF650 | SPS1500 | 16 | 267 | 70 | 14 | 46 | 1.5" / 50mm | 145 |
The product line offers various capacities based on the AGF400, AGF500, and AGF650 tanks, allowing buyers to select a pool filter pump set that perfectly matches different pool sizes and flow requirements up to 267 LPM.
This integrated swimming pool filtration combo is engineered with thermal-resistant components to process continuous water flow safely up to a maximum temperature limit of 43°C (109°F).
The unit features an 8-way top-mounted multiport valve, allowing operators to easily manage backwashing, rinsing, and other standard mechanical maintenance procedures without disassembling the plumbing.
All models in this series utilize a universal standard union connection sized at 1.5 inches (50 mm) to ensure straightforward integration into common above-ground plumbing configurations.
The gelcoat tank operates safely at a maximum operating pressure of 36 psi (250kPa) and has been structurally validated with a tank testing pressure of 58 psi (400kPa).
