AFS Series
Astrowave Pool

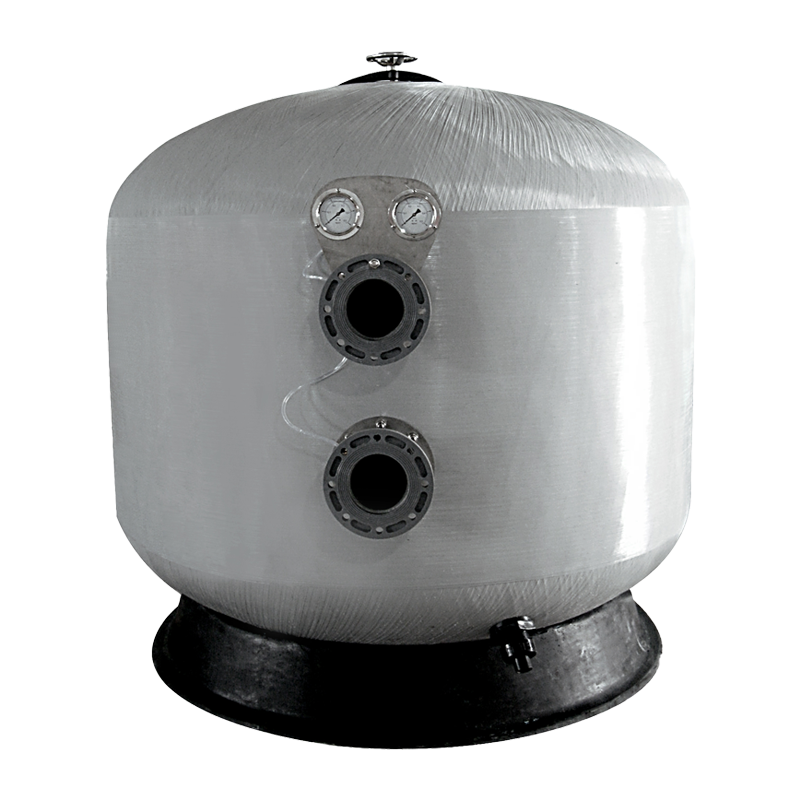

Standard or Dual-row Laterals System - Excellent Performance Commercial Fiberglass Filter
The AFS Series is engineered for demanding industrial environments, functioning as a high-capacity commerical pool filter for large-scale aquatic facilities. Constructed using advanced automatic bobbin winding technology, these tanks ensure consistent structural integrity and pressure resistance for long-term operational stability in commercial infrastructure. This aquatic system media filter utilizes a precision-engineered internal water distribution system to deliver smooth, even flow across the media bed. By maintaining consistently low effluent turbidity below 2 NTU, the system provides high filtration efficiency for professional competition pools, aquatic parks, and water treatment plants. The tank's composite construction features a non-corrosive fiberglass filter body reinforced with high-strength polyester resin for enhanced mechanical durability. This multi-layer design ensures reliable performance under extreme weather conditions while providing dependable protection against chemical exposure and UV degradation.This Bobbin Wound Filter is specifically manufactured for Pool Equipment global B2B wholesale distributors.
| Features | |
|---|---|
| Main Material: | Bobbin Wound Reinforced Fiberglass |
| Factory Testing Pressure: | 4.0 bar / 58 psi |
| Maximum Working Pressure: | 36 psi / 2.5 bar |
| Highest Temperature Resistance: | 43°C (109°F) |
| Warranty: | 10 years body warranty |
| Lateral System: | Standard / Dual-row (only specific models) |
| Connection: | Flange |
| Valve Manifold: | Optional Equipped |
| Suggested Filter Medium Size: | 0.5 - 0.8 mm |
| Model | Lateral System | Valve Manifold (Optional) | Connection(Flange) | Max.Flow Rate | Filter Area | Sand (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| GB(mm) | ANSI | m³/h | LPM | GPM | m² | ft² | ||||
| AFS1200 | Standard | FBV4-3 / FBV5-3 | 80 | 3" | 42 | 700 | 185 | 1.13 | 12.2 | 920 |
| AFS1400 | Standard | FBV4-4 / FBV5-4 | 100 | 4" | 62 | 1033 | 273 | 1.50 | 16.2 | 1460 |
| AFS1600 | Standard | FBV4-4 / FBV5-4 | 100 | 4" | 100 | 1667 | 440 | 2.01 | 21.6 | 2180 |
| AFS1800 | Standard | FBV4-6 / FBV5-6 | 150 | 6" | 125 | 2083 | 550 | 2.54 | 27.3 | 3100 |
| AFS2000 | Standard | FBV4-6 / FBV5-6 | 150 | 6" | 153 | 2550 | 673 | 3.14 | 33.8 | 4250 |
| AFS2350 | Standard | FBV4-8 / FBV5-8 | 200 | 8" | 186 | 3100 | 819 | 4.12 | 44.4 | 6300 |
| AFS2500 | Standard | FBV4-8 / FBV5-8 | 200 | 8" | 238 | 3967 | 1048 | 4.88 | 52.5 | 7640 |
| AFS2000D | Dual-row | FBV4-6 / FBV5-6 | 150 | 6" | 153 | 2550 | 673 | 3.14 | 33.8 | 4250 |
| AFS2350D | Dual-row | FBV4-8 / FBV5-8 | 200 | 8" | 186 | 3100 | 819 | 4.12 | 44.4 | 6300 |
| AFS2500D | Dual-row | FBV4-8 / FBV5-8 | 200 | 8" | 238 | 3967 | 1048 | 4.88 | 52.5 | 7640 |
| Model | (D) | (H1) mm | (H2) mm | (H3) mm | |
|---|---|---|---|---|---|
| GB(mm) | ANSI | ||||
| AFS1200 | 1200 | 48" | 580 | 780 | 1310 |
| AFS1400 | 1400 | 56" | 650 | 950 | 1480 |
| AFS1600 | 1600 | 64" | 650 | 950 | 1680 |
| AFS1800 | 1800 | 72" | 750 | 1100 | 1890 |
| AFS2000 / AFS2000D | 2000 | 80" | 890 | 1290 | 2120 |
| AFS2350 / AFS2350D | 2350 | 94" | 930 | 1480 | 2400 |
| AFS2500 / AFS2500D | 2500 | 100" | 1030 | 1530 | 2600 |
Each pressure tank filter in this series is rated for a maximum operating pressure of 250kPa (36psi) and is factory tested to 400kPa (58psi) to ensure structural safety.
The system is optimized for a quartz sand filter setup using a suggested media size of 0.5-0.8mm to achieve effluent turbidity levels consistently below 2 NTU.
Yes, the series includes models such as the AFS2500, which supports flow rates up to 238 m³/h and can be equipped with a dual-row lateral system for enhanced stability.
The fiberglass and polyester resin construction is designed to handle a maximum operating water temperature of 43°C (109°F) for both indoor and outdoor use.

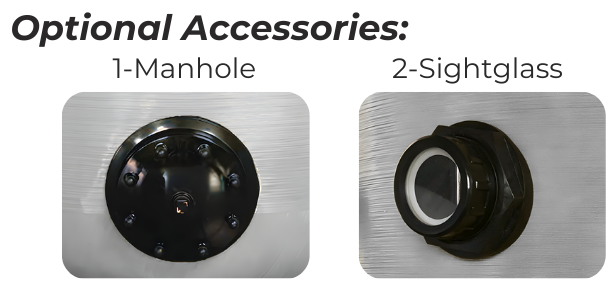

Optional accessories are available for the AFS series, including a sightglass for visual monitoring and a manhole for easier access during media replacement or maintenance.
We are a direct customsand filter factory in China. Astrowave Pool operates its own production facilities with a strict in-house quality control system. You are always welcome to visit our factory in person, or we can arrange a real-time WhatsApp video tour of our workshop for a convenient remote inspection.
Yes, we provide comprehensive OEM and ODM services tailored for our global B2B partners. From custom product colors and branded logos to specific carton packaging designs, our flexible production lines can accommodate your needs. As an experienced swimming pool equipment manufacturer, we focus on delivering consistent quality to help your business succeed in local markets.
