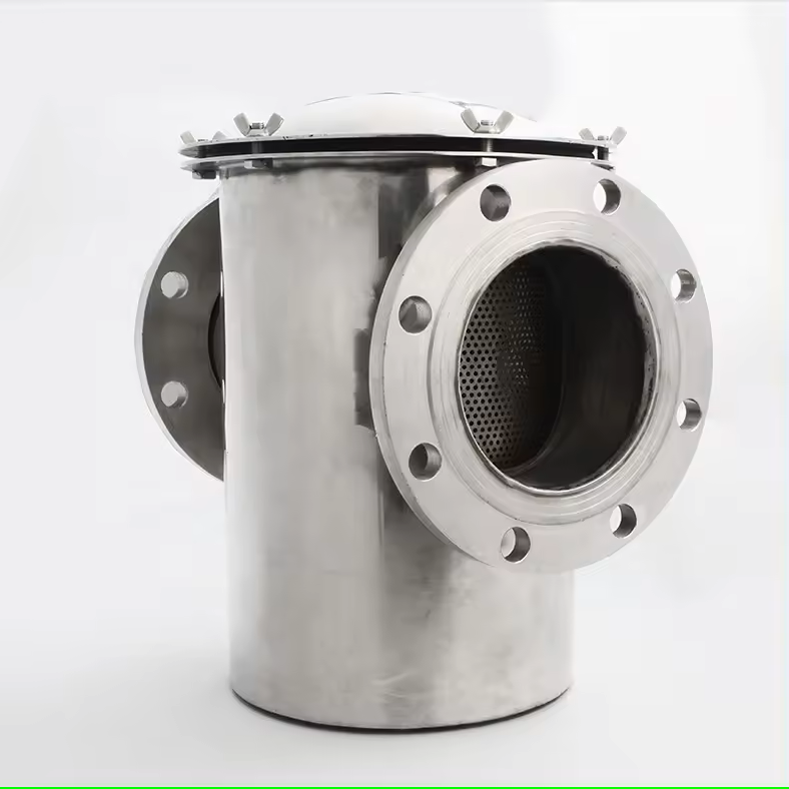

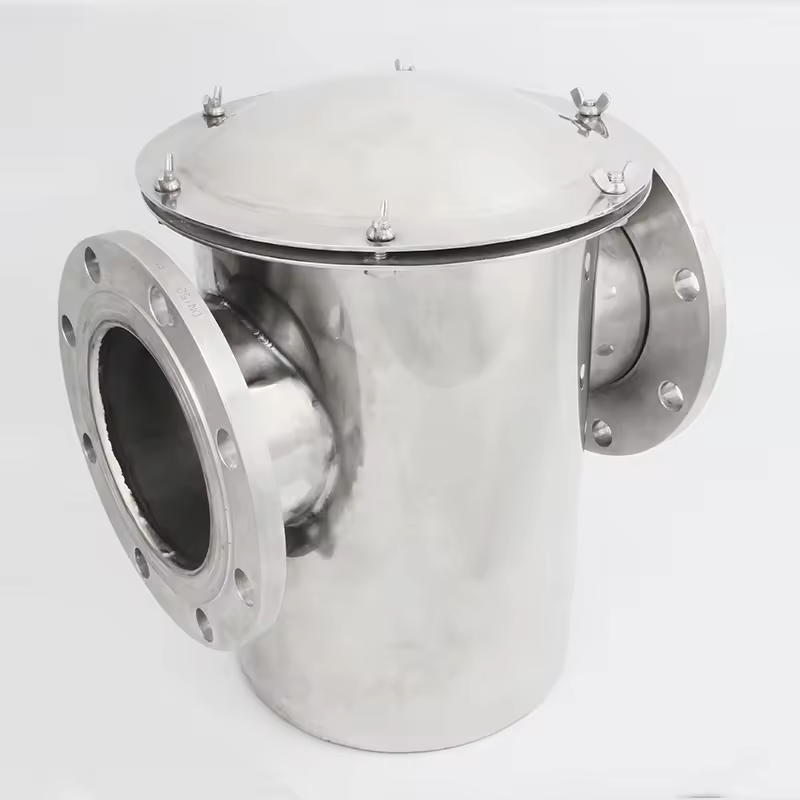

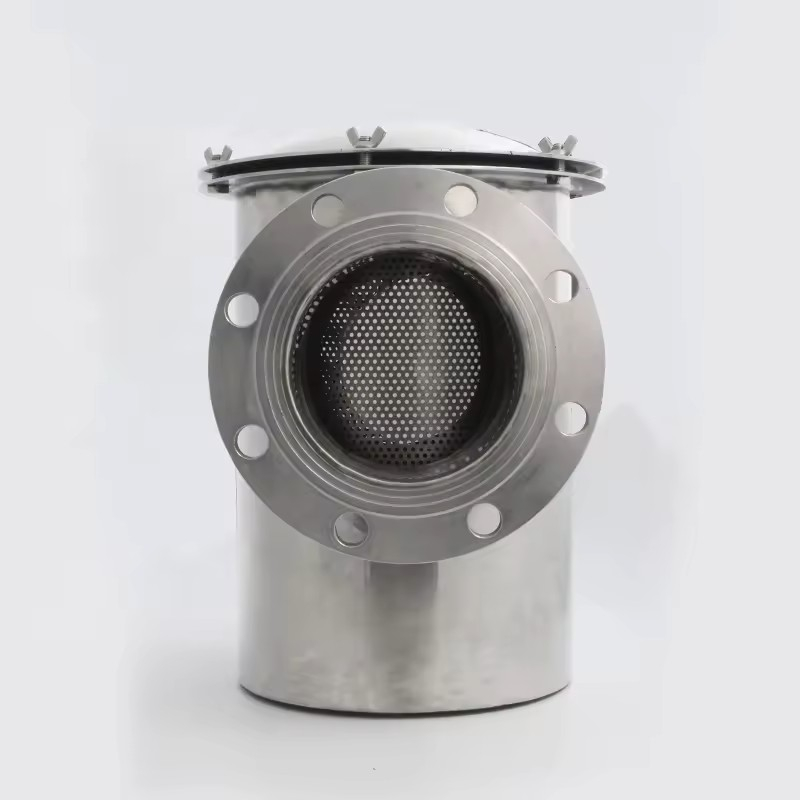

Stainless Steel Inground And Above Ground Pool Hair Filter

The Stainless Steel Hair Filter series is engineered for high-capacity pre-filtration in commercial and industrial aquatic systems. Constructed from premium SUS304 or SUS316 stainless steel, these units provide exceptional structural durability and resistance to chemical corrosion in demanding environments.

Each model features a high-volume internal basket to intercept debris and fibrous materials, acting as a robust stainless steel hair strainer. The product line spans from DN32 to DN250, offering a variety of barrel diameters and flange sizes to accommodate diverse industrial piping requirements.

Designed for high-performance operation, this swimming pool hair catcher supports a maximum operating pressure of 600kPa (87psi). The reinforced housing is capable of maintaining structural integrity at water temperatures reaching 90°C (194°F), making it suitable for both standard filtration and specialized heating systems.
Availability:
Quantity:
Inquire Add to Basket

  • Astrowave Pool

Hair Filter for Inground and Above Ground Pools

Product Description

The Stainless Steel Hair Filter series is engineered for high-capacity pre-filtration in commercial and industrial aquatic systems. Constructed from premium SUS304 or SUS316 stainless steel, these units provide exceptional structural durability and resistance to chemical corrosion in demanding environments. Each model features a high-volume internal basket to intercept debris and fibrous materials, acting as a robust stainless steel hair strainer. The product line spans from DN32 to DN250, offering a variety of barrel diameters and flange sizes to accommodate diverse industrial piping requirements. Designed for high-performance operation, this swimming pool hair catcher supports a maximum operating pressure of 600kPa (87psi). The reinforced housing is capable of maintaining structural integrity at water temperatures reaching 90°C (194°F), making it suitable for both standard filtration and specialized heating systems.

Product Features

  • Industrial Grade Material: Fabricated from SUS304 or SUS316 stainless steel to ensure long-term service life in saline or chemically treated water.
  • High Pressure Rating: Engineered as a pool pump hair strainer to withstand operating pressures up to 6.0 bar for heavy-duty circulation tasks.
  • Standardized Flange Connection: Utilizes a secure flange system for reliable, leak-proof integration into large-scale commercial piping networks.
  • Enhanced Thermal Resistance: Maintains operational stability in high-temperature applications with a maximum rating of 90°C.
  • Variable Scaling Options: This commercial pool hair filter series provides multiple configurations with flange sizes ranging from Φ140 to Φ334 to match specific project flow rates.

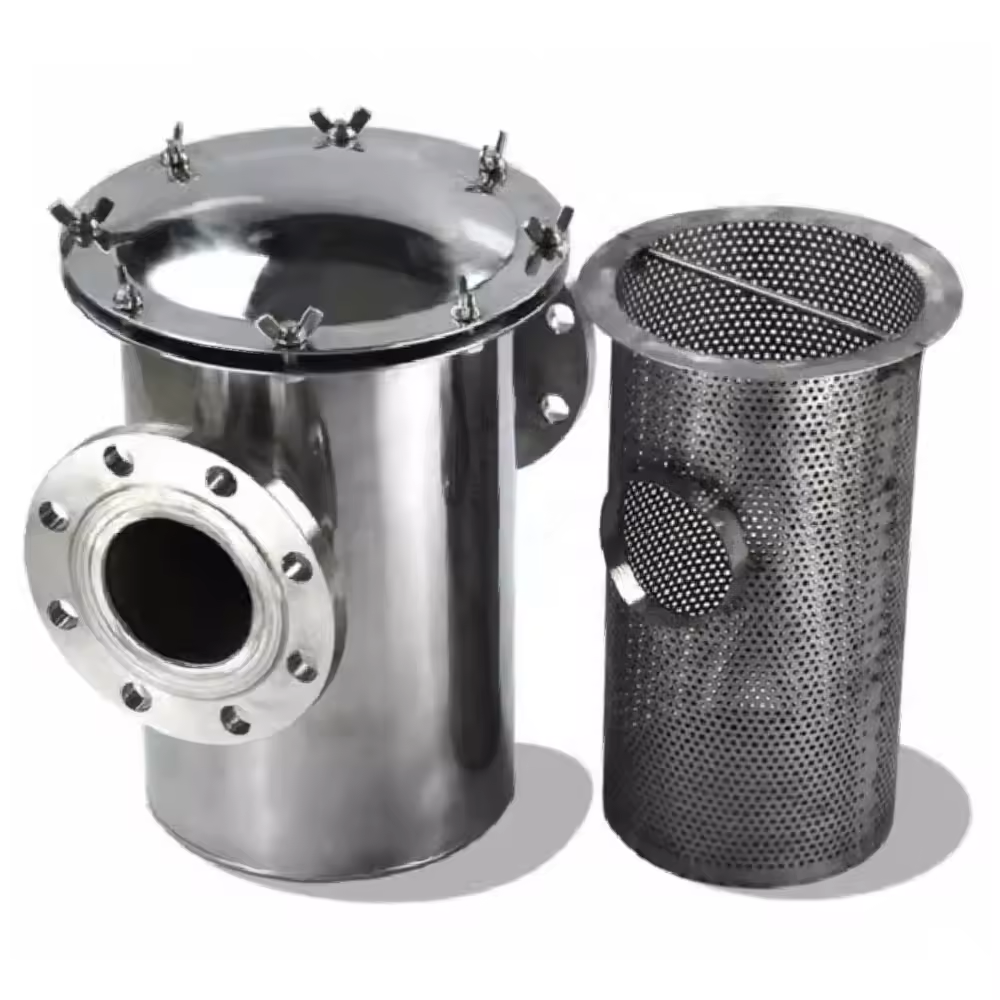

  • Maintenance-Friendly Design: Features a bolt-down top lid for quick access to the internal perforated basket during routine cleaning cycles.

Product Specifications

Model Barrel Dia(mm) Length(mm) Height(mm) HL(mm) Flange Size(mm)
DN 32 159 270 240 165
DN 40 159 270 240 165 Φ140-Φ51
DN 50 159 270 240 165 Φ157-Φ63
DN 65 219 340 350 224 Φ177-Φ76
DN 80 219 340 350 224 Φ187-Φ90
DN 100 273 400 400 255 Φ213-Φ109
DN 125 273 400 400 255 Φ240-Φ135
DN 150 273 400 400 255 Φ277-Φ159
DN 200 380 500 500 300 Φ334-Φ220
DN 250 380 500 500 300

Dimensions

PICTURE_ONLY

Application Areas

  • Olympic aquatic centers requiring a stainless steel pool filter basket to maintain water clarity in high-volume competition pools.
  • Luxury resort complexes installing an inground pool hair filter to protect primary circulation pumps from heavy organic debris.
  • Industrial water treatment plants utilizing a heavy duty pool hair strainer for mechanical pre-filtration in recycled water systems.
  • Municipal splash pads and water parks implementing flanged filtration units to ensure continuous operational uptime during peak bather loads.
  • Commercial hydrotherapy facilities where high-temperature recirculating water requires durable metallic filtration components.

FAQ

What is the benefit of a stainless steel housing for filtration?

As a specialized pool hair filter manufacturer, we use SUS304 and SUS316 to provide superior pressure resistance and thermal stability compared to plastic alternatives.

Can this strainer be used for non-standard pool types?

Yes, the robust flange-mounted design makes it an ideal above ground pool hair catcher for premium large-scale temporary or permanent installations.

What are the maximum pressure and temperature limits?

The unit is rated for a maximum operating pressure of 600kPa (87psi) and a maximum water temperature of 90°C (194°F).

Are the dimensions standardized across the series?

The series offers a range of sizes with barrel diameters from 159mm to 380mm and varying heights to fit different mechanical room footprints.

How is the internal basket cleaned?

The top lid is secured with bolts that can be removed to extract the internal perforated stainless steel basket for manual debris disposal.
