The Model AK577 is a high-performance pipeless pool filter engineered for facilities where traditional plant room construction is not feasible. This integrated unit combines multiple core functions into a unified enclosure, eliminating the need for complex external plumbing networks and underground machine rooms.

Constructed from high-quality fiberglass and acrylic, this wall mounted pool filter is designed for long-term durability in chemically treated environments. The housing is engineered to be anti-acid and anti-fading, ensuring structural integrity and aesthetic maintenance even under direct UV exposure or chemical contact.

This integrated pool filter system streamlines installation by factory-mounting essential components like the filtration pump, disinfection unit, and time controllers into a single housing. The compact design reduces on-site commissioning time while maintaining high hydraulic efficiency for residential and semi-commercial aquatic applications.

Availability:

Quantity:



Inquire Add to Basket

Model:
AK577
Brand:
Astrowave Pool

Product Description

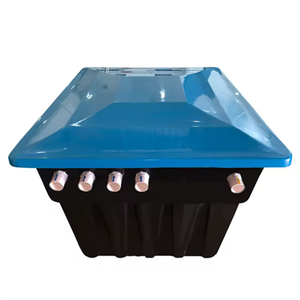

Compact Pipless Pool Filtration System - No Need Equipment Room

Product Description

The PIPELESS Series is a high-performance pipeless pool filter engineered for facilities where traditional plant room construction is not feasible. This compact integrated pool filtration system combines multiple core functions into a unified enclosure, eliminating the need for complex external plumbing networks and underground machine rooms. Constructed from high-quality fiberglass and acrylic, this wall mounted pool filter is designed for long-term durability in chemically treated environments. The housing is engineered to be anti-acid and anti-fading, ensuring structural integrity and aesthetic maintenance even under direct UV exposure or chemical contact. This integrated pool filter system streamlines installation by factory-mounting essential components like the filtration pump, disinfection unit, and time controllers into a single housing. The compact design reduces on-site commissioning time while maintaining high hydraulic efficiency for residential and semi-commercial aquatic applications.

This Compact Pipless Pool Filtration System is specifically engineered for Pool Equipment global B2B wholesale distributors, regional Pool Product dealers, and Villa Pool Project contractors.

Product Features

High-Precision Filtration: Equipped with filtration bags featuring a precision rating of ≤5u to ensure superior water clarity.
Low-Noise Operation: The internal motor and hydraulic design maintain an operating noise level of ≤50Db for quiet residential environments.
Compact pool filtration Architecture: Utilizes a wall-mounted design measuring 1150 x 710 x 1090 mm to save space in restricted pool deck areas.
Durable Material Composition: Manufactured with a combination of Fiberglass and Acrylic to provide a corrosion-resistant and easy-to-clean surface.
Wall hung pool filter Compatibility: Designed for direct installation onto the pool wall, eliminating the requirement for a dedicated machine room or extensive piping.
Versatile Hydraulic Performance: Available in configurations with 2HP or 3HP filtration pumps to deliver flow rates of 25m³/h or 35m³/h respectively.
Integrated Lighting and Features: Includes factory-installed LED or 100W lighting systems and dual swim jets for enhanced pool functionality.

Product Specifications

FEATURES & SYSTEM
Dimensions	1150 x 710 x 1090mm
Voltage	220V / 50Hz or 60Hz
Precision of Filtration Bag	≤5u
Operating Noise	≤50Db
Material	Acrylic
Installation	Wall Mounting
Integrated Systems (1 pc each)	Filtration, Disinfection, Time Control, Circulation, Lighting

Model	Flow Rate	Filtration Pump	Basket With Bag	Light	Chlorine Feeder	Time Controller	Swim Jet	Hand Dail (SS)	Optional
AK577	35m³/h	1 x 3HP	2 pcs	LED or 100W	1 pc	1 pc	2 pcs	2 pcs	Heater / Ozone (1 pc)
AK568	25m³/h	1 x 2HP	1 pc	LED or 100W	1 pc	1 pc	2 pcs	2 pcs	Heater / Ozone (1 pc)

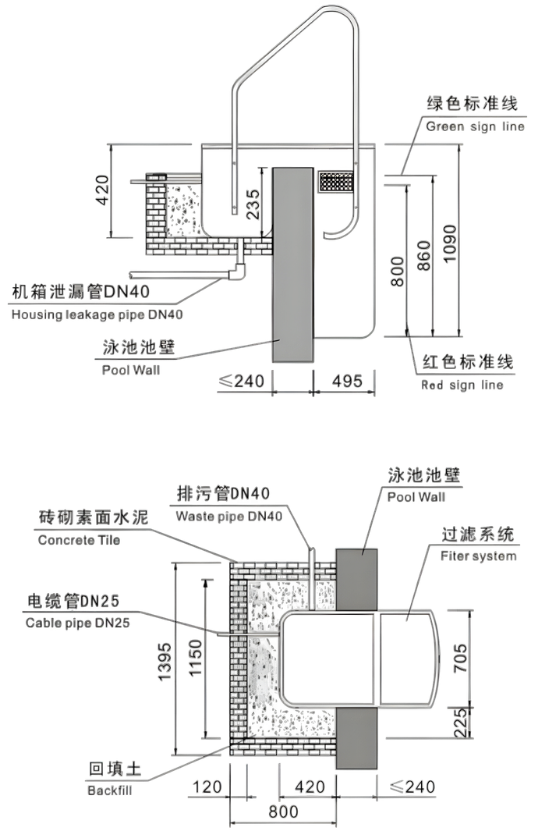

Pipless Pool Filter Installation Diagram

Application Areas

Private residential villas requiring a high-efficiency residential pool filter for space-restricted backyard installations.
Boutique hotel swimming pools utilizing a pre-plumbed pool system to minimize construction costs and project timelines.
Community recreation centers seeking a pool equipment package that eliminates the need for a separate underground plant room.
Rooftop swimming pools where structural weight limits and plumbing complexity require a wall-mounted filtration solution.
Semi-commercial aquatic facilities needing a unified system for filtration, disinfection, and circle management.
Renovation projects where existing pool structures are upgraded without the possibility of installing new underground pipes.

FAQ

What is the main difference between the AK577 and AK568 models?

The AK577 is built for higher capacity, featuring a 3HP pump, 35m³/h flow rate, and dual filtration baskets. The AK568 is the standard model with a 2HP pump, 25m³/h flow rate, and a single basket. Both models share the same dimensions and fiberglass/acrylic enclosure.

Does the system include all necessary components for pool operation?

Yes, the unit is a complete pool equipment set that integrates a filtration pump, disinfection system, time controller, and lighting system into one housing.

What is the filtration precision of the internal bags?

The precision of the filtration bag is rated at ≤5u, which allows for the removal of fine particulates to maintain high water transparency.

How does this unit support different electrical standards?

This integrated pool filtration system is available in either 220V/50Hz or 220V/60Hz configurations to meet regional power supply requirements.

Is a separate machine room required for the installation of this equipment?

No, the unit is designed for wall mounting and requires no machine room, as all hydraulic and control systems are housed within the integrated enclosure.
