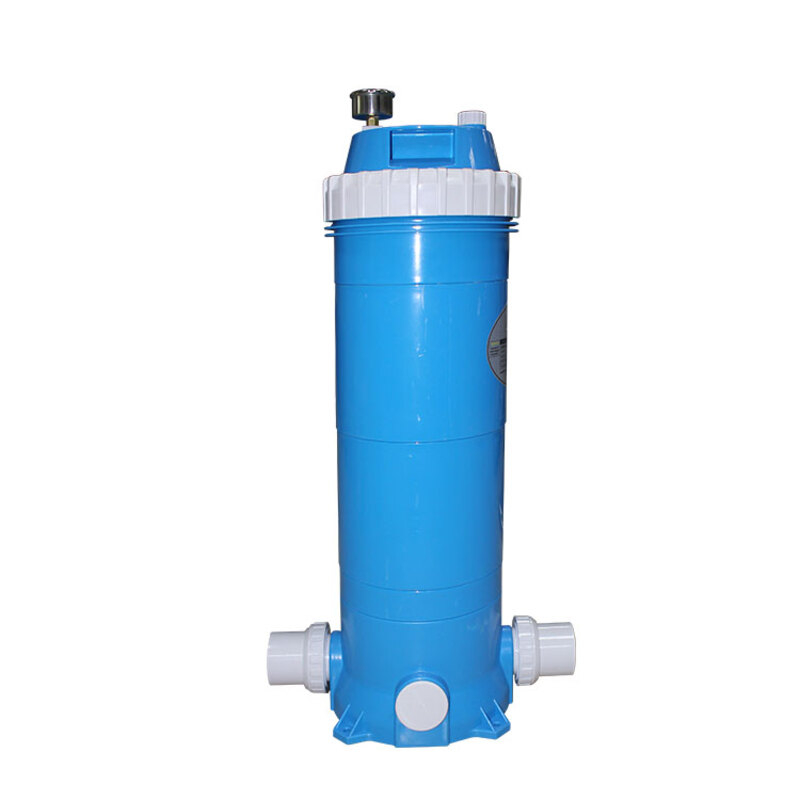

High Precision Easy-Maintenance Pool Cartridge Filter

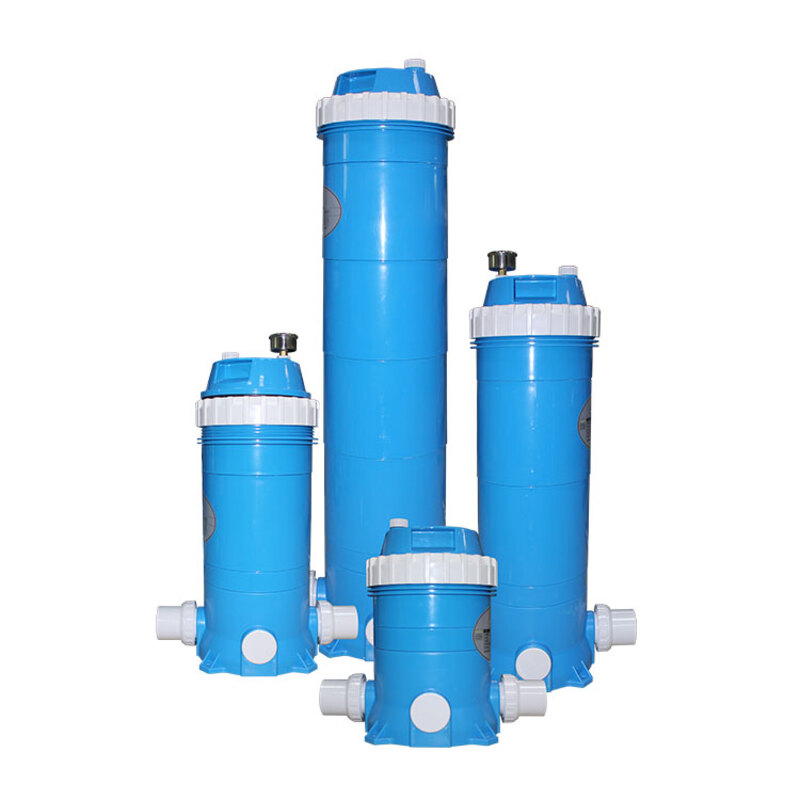

The AF Series is a high-performance pool cartridge filter designed for clarity and ease of maintenance in demanding aquatic environments. This series offers a range of models from the compact AF25 to the high-capacity AF150, catering to various volume requirements and flow rates up to 33 m³/h.

Constructed with a UV resistant plastic tank, this equipment is engineered for stable pool water filtration in outdoor installations. The system supports a maximum operating pressure of 250kPa (36psi) and is capable of handling water temperatures up to 40°C (104°F).

For larger installations, the commercial pool cartridge filter models provide up to 14 square meters of filtration area. Each unit features a heavy-duty ring-lock lid and a screw-type air bleed valve to ensure reliable operation and straightforward element replacement.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Astrowave Pool

Product Description

Higher Filtration Precision, Easier Maintenance

Product Description

The AF Series is a high-performance pool cartridge filter designed for clarity and ease of maintenance in demanding aquatic environments. This series offers a range of models from the compact AF25 to the high-capacity AF150, catering to various volume requirements and flow rates up to 33 m³/h. Constructed with a UV resistant plastic tank, this equipment is engineered for stable pool water filtration in outdoor installations. The system supports a maximum operating pressure of 250kPa (36psi) and is capable of handling water temperatures up to 40°C (104°F). For larger installations, the commercial pool cartridge filter models provide up to 14 square meters of filtration area. Each unit features a heavy-duty ring-lock lid and a screw-type air bleed valve to ensure reliable operation and straightforward element replacement.

Product Features

Structural Integrity: Manufactured with UV resistant plastic to ensure long-term durability in various environmental conditions.
Broad Compatibility: This swimming pool cartridge filter utilizes a universal standard of union connection available in 1.5 inch or 2 inch sizing.
Operational Monitoring: Equipped with a high-quality oil-filled pressure gauge to provide an accurate overview of internal operating pressure.
Integrated Air Management: The pool water filtration system includes a manual screw-type air bleed valve to release trapped air within the tank.
Maintenance Efficiency: Designed with a heavy-duty ring-lock lid that allows for rapid access during cleaning and replacement of the internal element.

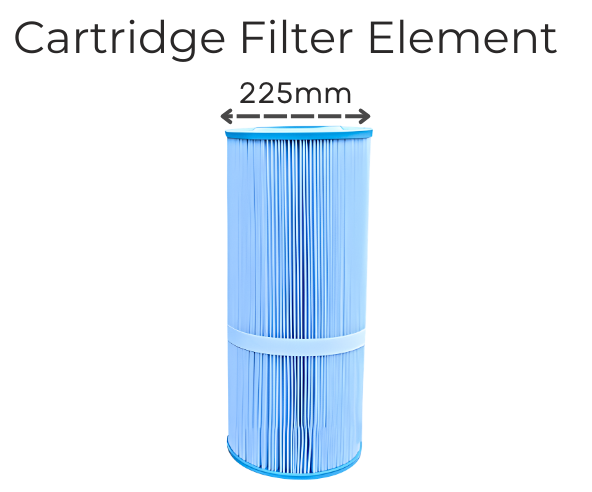

Standardized Element Size: Utilizes a standard 225mm diameter cartridge filter element across the entire product series for simplified inventory management.

Product Specifications

Model	Height (mm)	Pump Power (w)	Max.Flow Rate			Filter Area
Model	Height (mm)	Pump Power (w)	m³/h	LPM	GPM	m²	ft²
AF25	387	250-370	7	117	31	2.3	24.76
AF50	567	550-750	14	233	62	4.7	50.59
AF75	747	750-1100	17	283	75	7.0	75.35
AF100	927	1100-1500	22	382	101	9.4	101.18
AF150	1107	1100-2200	33	557	145	14	150.69

Dimensions

PICTURE_ONLY

Application Areas

Professional aquatic facilities requiring a high-efficiency replacement pool cartridge filter for consistent water clarity.
Public recreation centers utilizing a pleated pool filter to manage high bather loads and debris.
Luxury hotel pools implementing a pool filter cartridge replacement schedule to maintain premium water standards.
Commercial water features and fountains requiring a robust filtration solution.
Residential community swimming pools with diverse flow rate requirements.
Institutional training venues where reliable pressure management and filtration area are critical.
