GFS Series
Astrowave Pool

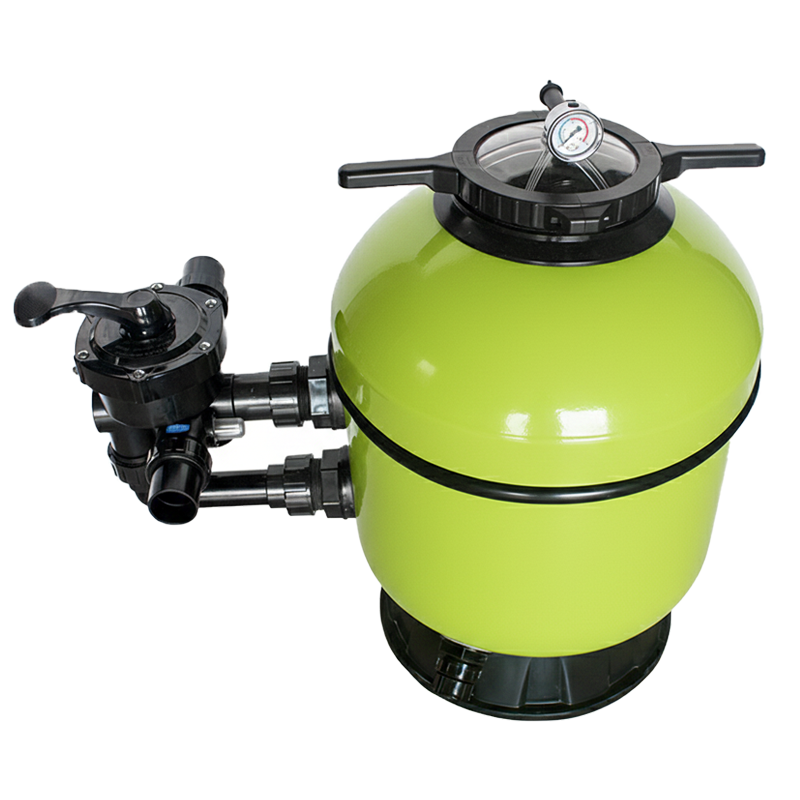

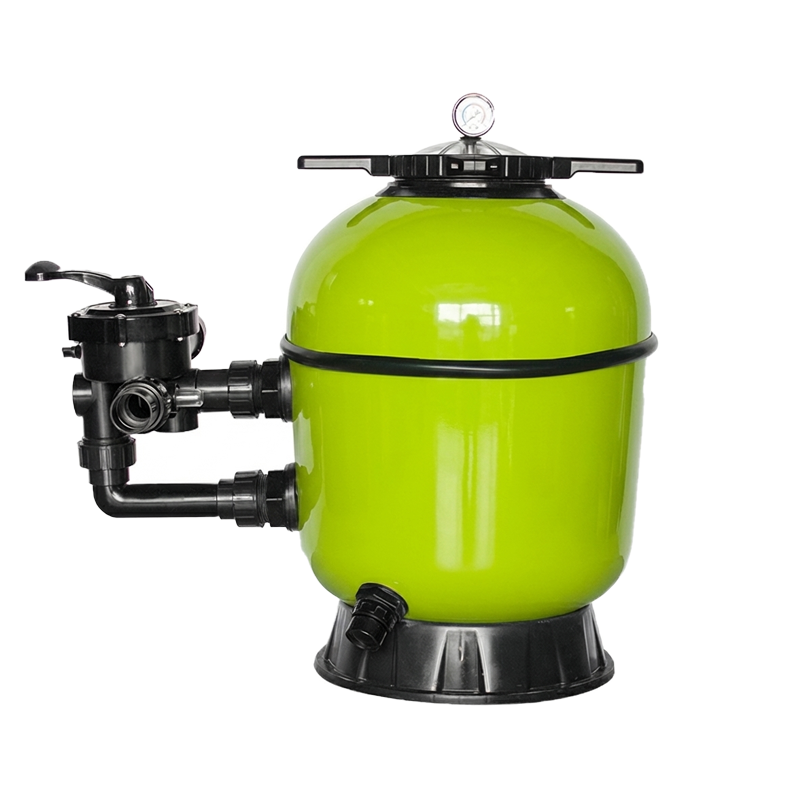

Gelcoat Fiberglass Pool Sand Filter with Easy-open Transparent Lock Lid
The GFS Series provides highly durable filtration solutions engineered for both residential and commercial applications. Built with a non-corrosive gelcoat tank, this gelcoat sand filter offers superior surface quality and robust structural integrity. It is designed to deliver long-term performance stability, making it an optimal choice for demanding outdoor environments where chemical and environmental degradation must be minimized. This product series is available in multiple configurations supporting 1.5-inch and 2-inch valve connections to accommodate different plumbing requirements. The unit functions as an efficient and easy maintenance pool filter, featuring an integrated air release valve. With its smooth finish and refined aesthetic, the system provides enhanced UV resistance and superior protection against harsh operating conditions compared to standard bobbin-wound alternatives. Operational accessibility is maximized through a specialized hardware design that eliminates the need for complex mechanical interventions. Operators can inspect the internal media via a clear visibility cover, establishing the unit as a practical tool free sand filter for facility managers. Furthermore, the tank can be produced in varying colors to match specific architectural preferences without compromising on the standard operating pressure rating of 2.5 bar.
This smooth surface gelcoated sand filter is specifically manufactured for pool equipment global B2B wholesale distributors.
| Features | |
|---|---|
| Main Material: | Gelcoat Glass Fiber |
| Factory Testing Pressure: | 4.0 bar / 58 psi |
| Maximum Working Pressure: | 36 psi / 2.5 bar |
| Highest Temperature Resistance: | 43°C (109°F) |
| Selector Valve Mounting Position: | Side-Mounted |
| Warranty: | 10 years body warranty |
| Suggested Filter Medium Size: | 0.5 - 0.8 mm |
| Model | Valve Model | Valve Connection | Max.Flow Rate | Filter Area | Sand (kg) | |||
|---|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m² | ft² | ||||
| GFS400 | MPV03 | 1.5" / 50mm | 8 | 133 | 35 | 0.13 | 1.40 | 52 |
| GFS500 | MPV03 | 1.5" / 50mm | 12 | 200 | 53 | 0.20 | 2.15 | 88 |
| GFS650 | MPV03 | 1.5" / 50mm | 17 | 283 | 75 | 0.33 | 3.55 | 158 |
| GFS750 | MPV04 | 2" / 63mm | 22 | 367 | 97 | 0.44 | 4.74 | 260 |
| GFS900 | MPV04 | 2" / 63mm | 32 | 533 | 141 | 0.64 | 6.89 | 422 |
| Model | (A) mm | (B) mm | (C) mm | (D) mm | (E) mm | (F) mm | (G) mm | Net.W (kg) | Gross.W (kg) | Packing (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GB(mm) | ANSI | ||||||||||
| GFS400 | 730 | 450 | 385 | 400 | 16" | 425 | 350 | 150 | 11.2 | 13.2 | 450 x 450 x 680 |
| GFS500 | 785 | 490 | 425 | 500 | 21" | 425 | 370 | 150 | 14.6 | 17.2 | 550 x 550 x 720 |
| GFS650 | 900 | 490 | 425 | 650 | 26" | 560 | 400 | 150 | 17.2 | 21.6 | 680 x 680 x 855 |
| GFS750 | 940 | 670 | 595 | 750 | 30" | 560 | 540 | 200 | 26.9 | 32.6 | 780 x 780 x 1050 |
| GFS900 | 1100 | 795 | 720 | 900 | 36" | 700 | 620 | 200 | 32.9 | 41.8 | 920 x 920 x 1050 |
The maximum operational temperature for this unit is rated at 43°C (109°F) to ensure structural integrity and consistent performance.
The non-corrosive finish provides superior surface quality, enhanced UV protection, and greater chemical resistance, establishing it as a highly durable gelcoat pool filter for outdoor environments.

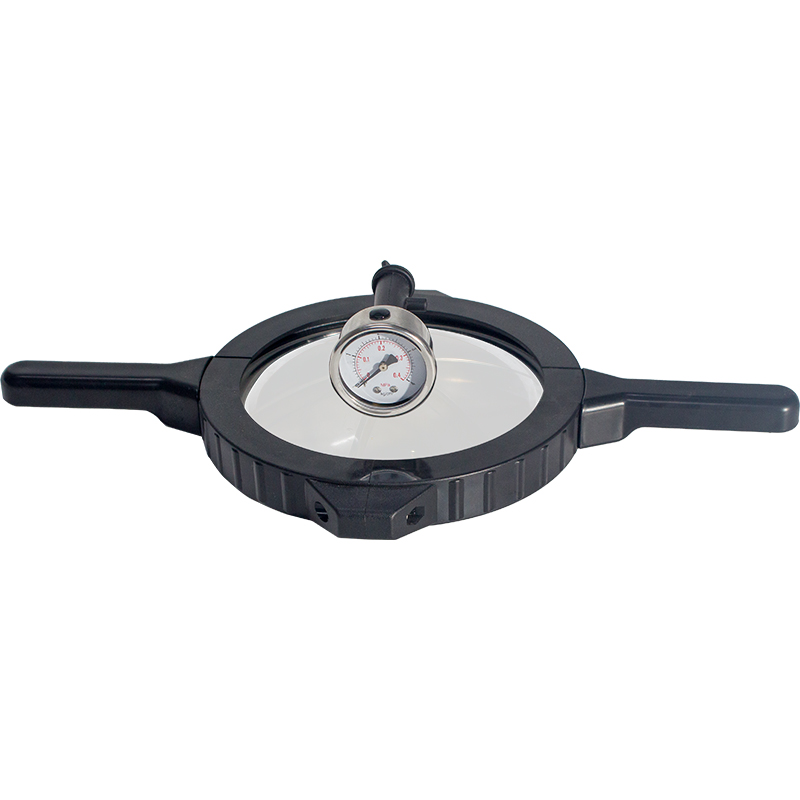

The transparent top cover allows operators to visually inspect the internal media, functioning effectively as a convenient monoblock threaded lock filter that evacuates trapped air via an integrated release valve.
The manufacturer specifies a suggested media size ranging from 0.5 to 0.8mm for optimal operation within the pool sand filter.

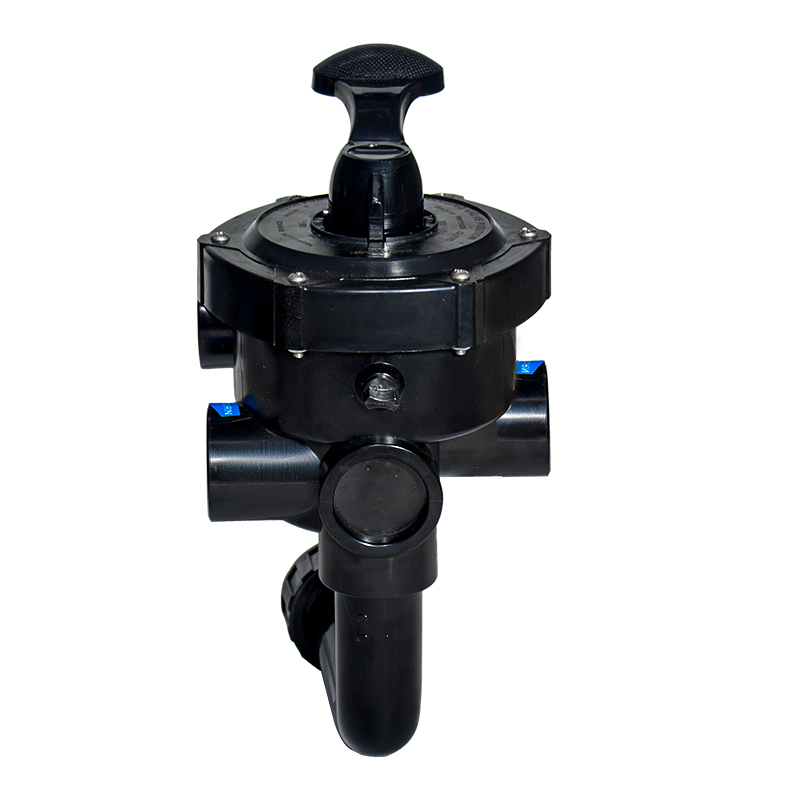

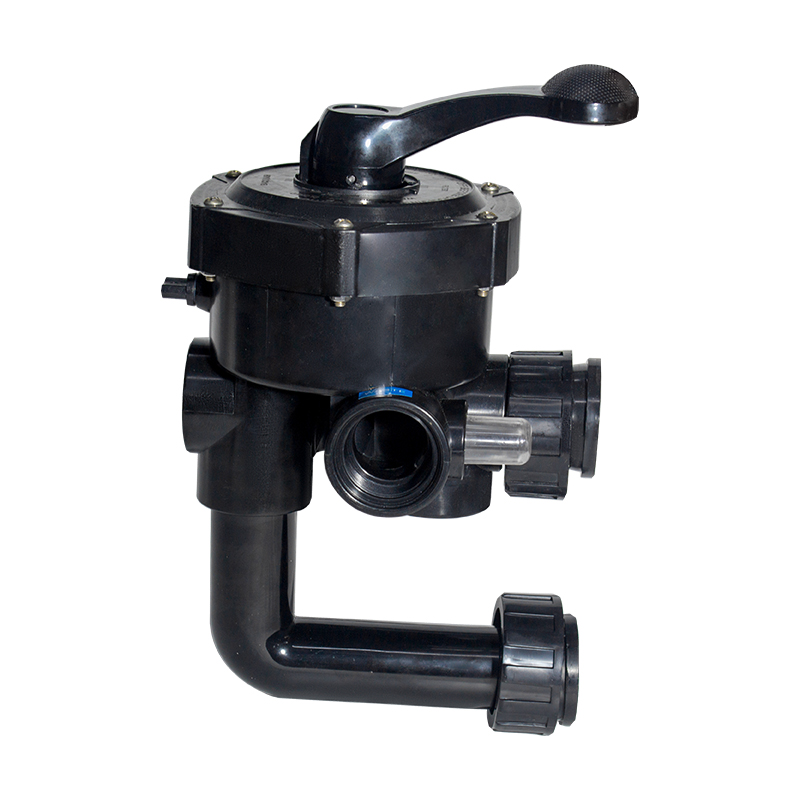

Yes, the series includes varying models featuring MPV03 valves with 1.5-inch connections or MPV04 valves with 2-inch connections to match specific flow rate demands up to 533 LPM.
