GFT Series
Astrowave Pool

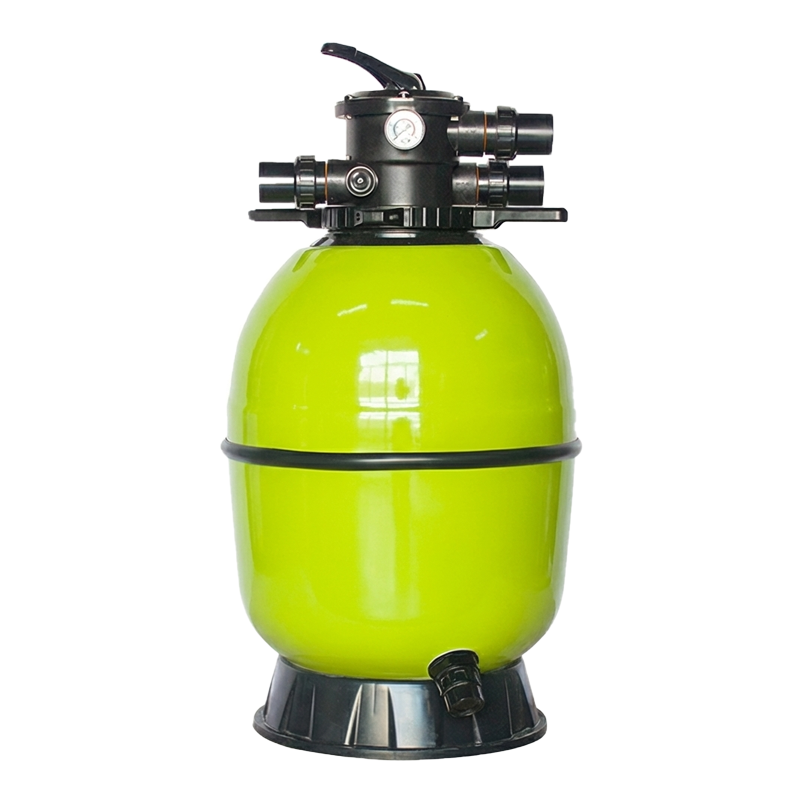

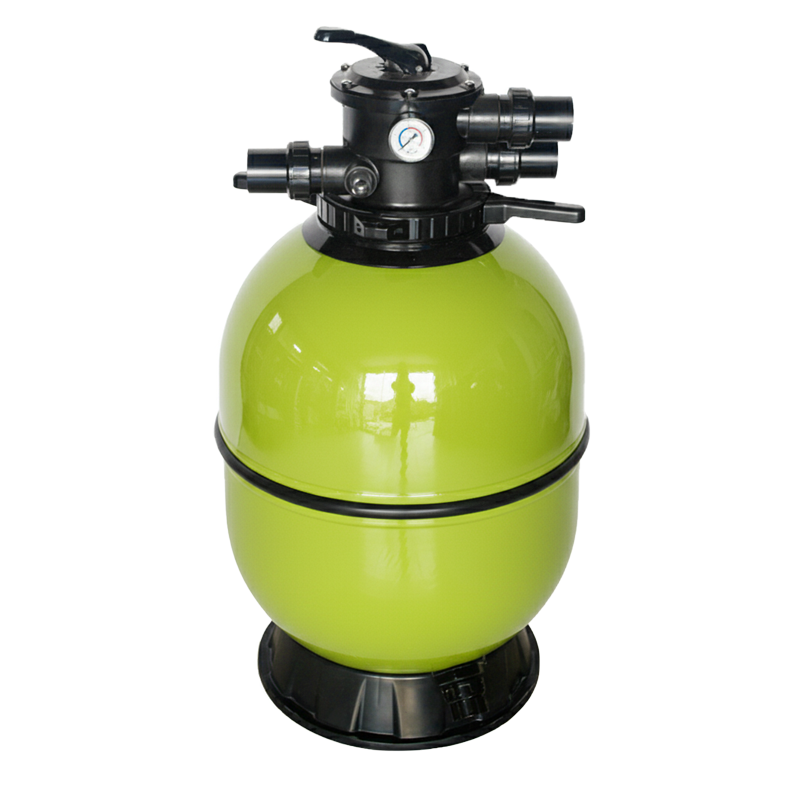

Gelcoat Fiberglass Sand Filter with Easy-open Selector Valve
The GFT Series delivers industrial-grade aquatic filtration through a reinforced tank structure and a premium gelcoat finish. Built to resist harsh UV rays and chemical wear, this gelcoat sand filter ensures long-lasting, stable operation across demanding indoor and outdoor commercial facilities. Because facility managers require equipment that maximizes uptime, the system features a ring-lock selector valve for immediate access to the media bed. This streamlined design drastically reduces service times, making it the ideal easy maintenance pool filter for high-traffic environments. Engineered for continuous heavy-duty use, the unit's non-corrosive construction prevents structural degradation, while the intuitive valve assembly integrates seamlessly with the robust gelcoated sand filter body so technicians can perform rapid inspections without specialized tools.
A trusted water treatment asset for international aquatic integrators requiring pool sand filter solutions.
| Features | |
|---|---|
| Main Material: | Gelcoat Fiberglass |
| Factory Testing Pressure: | 4.0 bar / 58 psi |
| Maximum Working Pressure: | 36 psi / 2.5 bar |
| Highest Temperature Resistance: | 43°C (109°F) |
| Selector Valve Mounting Position: | Top-Mounted |
| Warranty: | 10 years body warranty |
| Suggested Filter Medium Size: | 0.5 - 0.8 mm |
| Model | Valve Model | Valve Connection | Max.Flow Rate | Filter Area | Sand (kg) | |||
|---|---|---|---|---|---|---|---|---|
| m3/h | LPM | GPM | m2 | ft2 | ||||
| GFT400 | MPV05 | 1.5" / 50mm | 8 | 133 | 35 | 0.13 | 1.40 | 52 |
| GFT500 | MPV05 | 1.5" / 50mm | 12 | 200 | 53 | 0.20 | 2.15 | 88 |
| GFT650 | MPV05 | 1.5" / 50mm | 17 | 283 | 75 | 0.33 | 3.55 | 158 |
| Model | (A) mm | (B) mm | (C) mm | (D) mm | (E) mm | (F) mm | (G) mm | Net.W (kg) | Gross.W (kg) | Packing (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GB(mm) | ANSI | ||||||||||
| GFT400 | 950 | 834 | 768 | 400 | 16" | 425 | 300 | --- | 11.2 | 13.2 | 450 x 450 x 680 |
| GFT500 | 950 | 834 | 768 | 500 | 21" | 425 | 300 | --- | 12.9 | 15.6 | 550 x 550 x 720 |
| GFT650 | 1085 | 950 | 885 | 650 | 26" | 560 | 400 | --- | 15.5 | 20.0 | 680 x 680 x 855 |

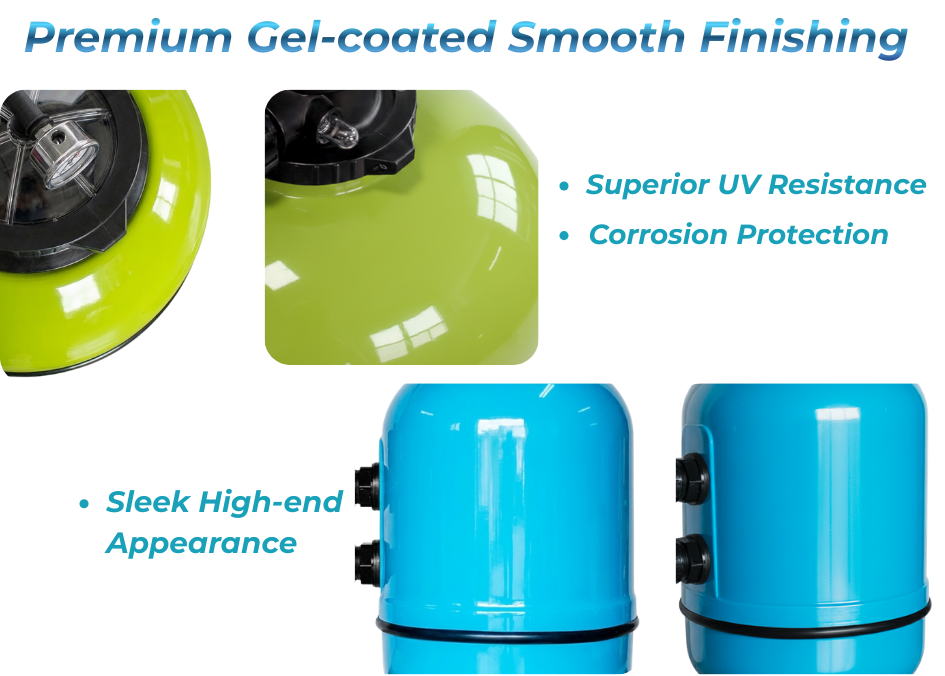

The gelcoat finish provides a much smoother surface and enhanced chemical resistance, making this pool sand filter particularly suitable for high-end outdoor applications where aesthetics and UV protection are critical.
Yes, these top mount sand filter are equipped with universal standards for union connections, allowing for straightforward integration into existing 1.5-inch or 50mm piping infrastructure.
The series scales based on model size, with the GFT650 providing a maximum flow rate of 17 m3/h and a total sand capacity of 158kg for efficient particle removal.
Each tank is engineered for a working pressure of 36psi and undergoes factory testing at 58psi to ensure the fiberglass structure can withstand industrial operational stresses.

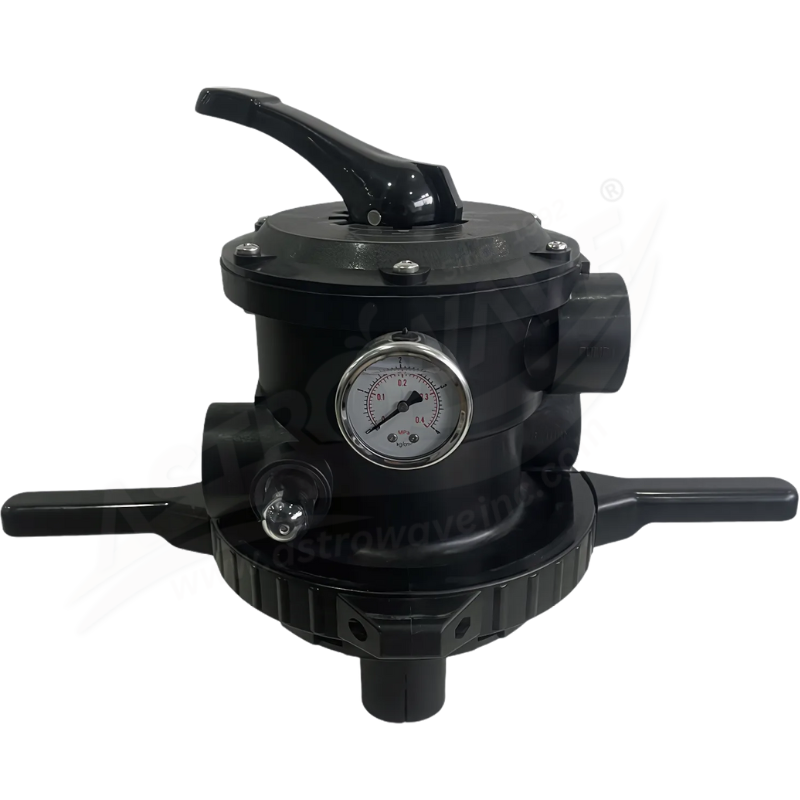

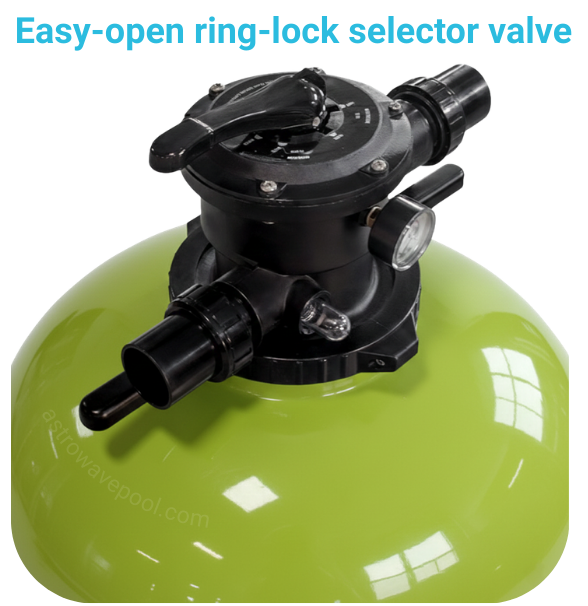

The units are equipped with an 8-way top-mount multiport valve that features an easy-open ring-lock design for simplified operation and maintenance accessibility.
