GFT Series
Astrowave Pool

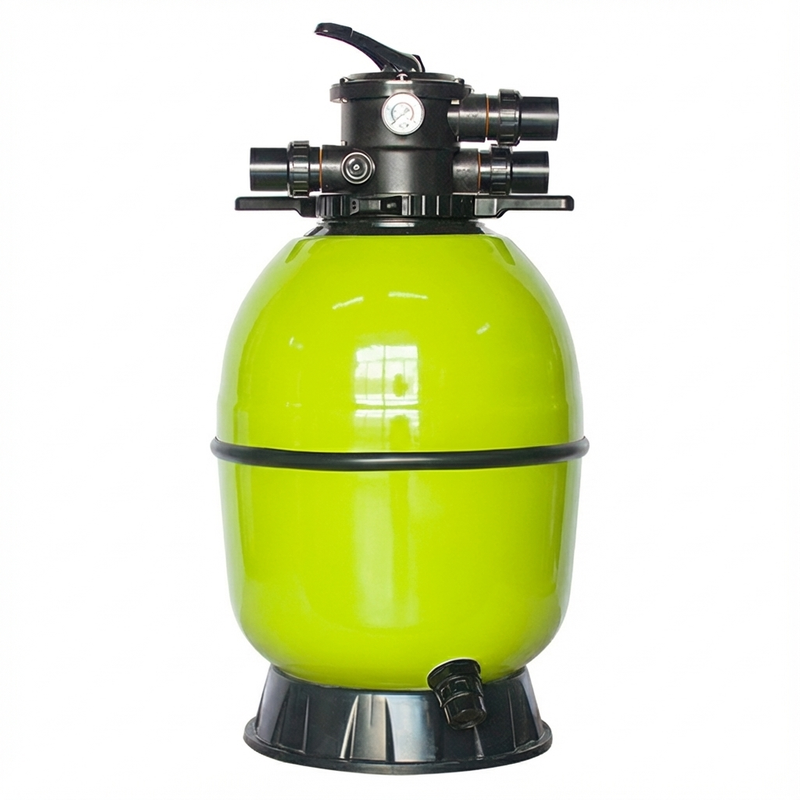

Upgraded from AGF Series Gel-Coated Top Mount Pool Filter ,The GFT Series sand filters represent the next generation of pool filtration technology. Utilizing a premium gel-coated fiberglass process, these filters are engineered for enhanced durability and long-term reliability in various aquatic environments. Whether for a residential pool, a luxury clubhouse, or a professional spa, our fiberglass filters deliver efficient, simple, and reliable performance.
Gel-Coated Fiberglass Body: Superior corrosion resistance and UV protection for an extended lifespan.

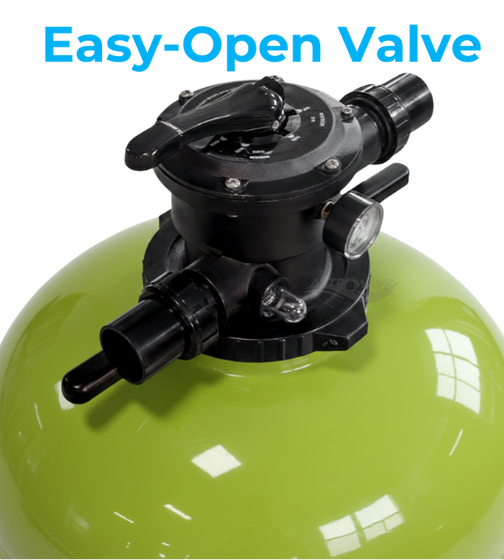

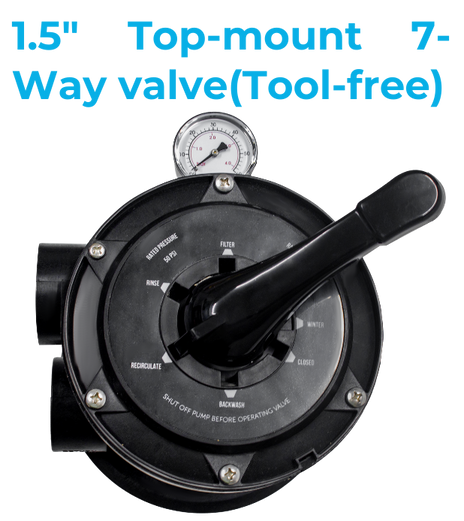

Monoblock Threaded Lock: Features a circular lock (ring lock type) 7-way selector valve , tool-free removal and maintenance.
Advanced Internals: Equipped with an ABS reinforced plastic base pipe system and a lateral multi-function valve for optimal flow.
Safety First: Includes an integrated air safety valve and high-precision pressure gauge set.
Technical Specifications
| Main Material | Gel-coated Glass Fiber |
|---|---|
| Factory Testing Pressure | 4.0 bar / 58 psi |
| Maximum Working Pressure | 36 psi / 2.5 bar |
| Highest Temperature Resistance | 43°C (109°F) |
| Warranty | 10 years body warranty |
| Suggested Filter Medium Size | 0.5 - 0.8 mm |
This versatile filtration system is ideal for:
Residential & Semi Commercial Swimming Pools
Clubhouse & Commercial Pools
Spa Pools and Hot Tubs
Water Features & Aquaculture Systems

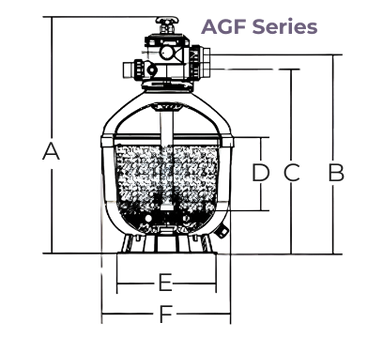

| Model No | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | NW (kg) | GW (kg) | Packing (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| GFT-400 | 850 | 694 | 765 | 380 | 425 | 400 | — | 11.2 | 13.2 | 450x450x680 |
| GFT-500 | 950 | 814 | 785 | 330 | 425 | 500 | — | 12.55 | 15.18 | 550x550x720 |
| GFT-650 | 1085 | 950 | 885 | 480 | 568 | 650 | — | 15.5 | 19.95 | 680x680x815 |
