H Series Durable Chlorine Feeder for Swimming Pool

Share to:

H Series Durable Chlorine Feeder for Swimming Pool

The H Series Pool Doser is a mechanical solution engineered for water sanitation in residential and semi-commercial aquatic environments. This automatic chemical doser is manufactured from high-grade ABS and PVC materials to ensure long-term structural durability and resistance to corrosive pool chemicals.

Equipped with a large-capacity chamber, the system functions as a robust pool chlorine feeder capable of housing both large and small slow-dissolve tablets or sticks. Precise chemical delivery is managed via an adjustable dial, allowing operators to fine-tune the output based on specific water volume requirements.

This product series is available in CL-100 and CL-200 models to support different capacity needs and offers flexible installation configurations. As an integrated automatic chlorine dispenser, the unit supports both Inline and Offline plumbing setups to accommodate diverse filtration equipment layouts and installation footprints.

Availability:

Quantity:



Inquire Add to Basket

Model:
H Series
Brand:
Astrowave Pool

Product Description

Durable Chlorine Tablet Dispenser for Swimming Pool

Product Description

The H Series Pool Doser is a mechanical solution engineered for water sanitation in residential and semi-commercial aquatic environments. This automatic chemical doser is manufactured from high-grade ABS and PVC materials to ensure long-term structural durability and resistance to corrosive pool chemicals. Equipped with a large-capacity chamber, the system functions as a robust pool chlorine feeder capable of housing both large and small slow-dissolve tablets or sticks. Precise chemical delivery is managed via an adjustable dial, allowing operators to fine-tune the output based on specific water volume requirements. This product series is available in CL-100 and CL-200 models to support different capacity needs and offers flexible installation configurations. As an integrated automatic chlorine dispenser, the unit supports both Inline and Offline plumbing setups to accommodate diverse filtration equipment layouts and installation footprints.

Product Features

Corrosion-Proof Construction: Manufactured using high-quality ABS and PVC to provide a durable housing that withstands harsh chemical environments.
Easy-Lock Security: Features a specialized cover design for quick and secure access during tablet refilling while maintaining a pressure-tight seal.
Direct System Integration: Designed to function as a high-performance inline chlorine feeder that connects directly into the existing return line after the heating system.
Versatile Plumbing Support: Configurable as an offline chlorine feeder using bypass piping for installations where equipment pad space or hydraulic flow requires external mounting.
Automatic Air Management: Includes a built-in feeder tube and automatic air relief system to ensure consistent concentrated flow and prevent air binding.
Mechanical Operational Form: Utilizes the natural hydraulic pressure of the filtration system to drive chemical distribution without the need for external power sources.

Product Specifications

Model	Interface	Capacity	Diameter*Height	Maximum pressure	Work form
CL-100	50 mm	4.2LB / 1.9kg	120*355 mm	210kPa / 30psi / 2.1bar	mechanical
CL-200	50 mm	9.0LB / 4.0kg	165*390 mm	210kPa / 30psi / 2.1bar	mechanical

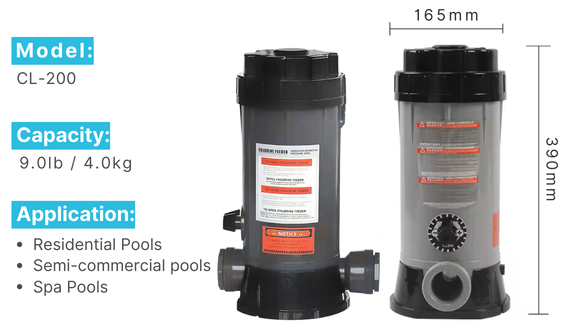

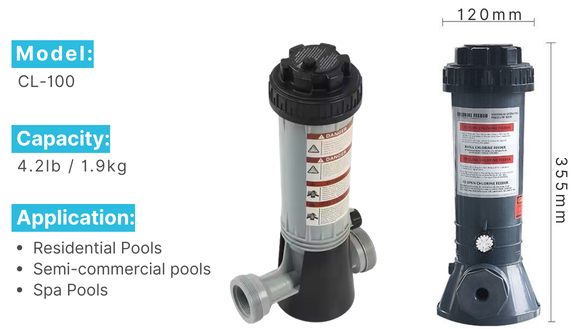

Dimensions

Application Areas

Semi-commercial aquatic centers requiring a pool tablet feeder for reliable sanitation of high-occupancy swimming facilities.
Residential landscape projects utilizing an inground pool chlorine dispenser to automate chemical maintenance for luxury private pools.
Large-scale water features and fountains deploying a heavy duty chlorine feeder to manage consistent water clarity and biological control.
Retrofit installations where mechanical dosing equipment must be integrated into compact equipment rooms with limited accessibility.
Professional pool service fleets seeking standardized dosing solutions for diverse client maintenance contracts.

FAQ

What is the maximum pressure rating for the H Series?

The units are engineered for a maximum operating pressure of 210kPa (30psi / 2.1bar), making them compatible with most standard residential and semi-commercial pump systems.

Which model is best for a larger water volume?

As a specialized chlorine feeder manufacturer, we provide the CL-200 model with a 4kg (9.0LB) capacity for higher demand applications compared to the 2kg (4.2LB) CL-100.

What types of chemicals are compatible with this doser?

The internal chamber is designed for use with both large and small slow-dissolve chlorine tablets or sticks through a pure physical dissolution process.

Does this equipment require an electrical connection?

No, this pool chemical dispenser operates as a mechanical work form, utilizing the existing water flow from the filtration pump to regulate chemical distribution.

How do I control the amount of chlorine being added?

The unit features an external adjustable dial that provides precise control over the chlorine output to meet the specific sanitation demands of the pool.
