AK366
Astrowave Pool

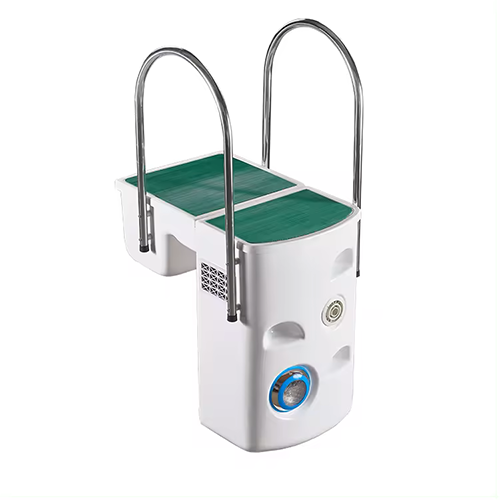

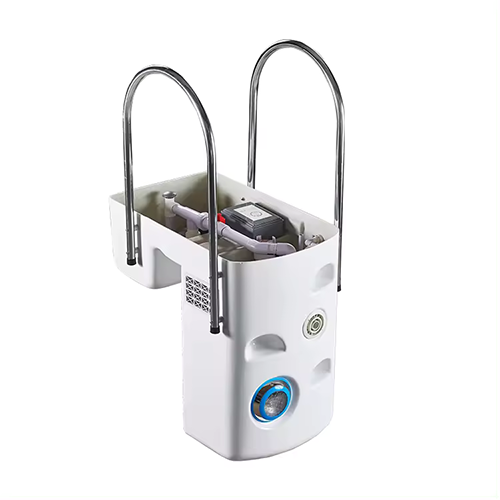

The "AK366" Pipeless filter (Integrative Filter System) represents the latest in pool filtration technology, revolutionizing the traditional sand filter approach by eliminating the need for an engine room or extensive pipeline setup. This cutting-edge system is easy to install, requires minimal maintenance, and offers high filtration precision with low operational costs, making it the ideal choice for office buildings and villas.
Key Features & Advantages:
Water Conservation: No need to worry about water leakage as the system eliminates pipelines and backwashing, conserving water resources.
Space Efficiency: With no need for an engine room, the system saves valuable land space and complies with international environmental protection standards.
High Filtration Accuracy: The system provides superior filtration accuracy, ensuring crystal-clear water with minimal effort.
This innovative solution offers a seamless blend of advanced technology and eco-friendly design, perfect for modern swimming pools.

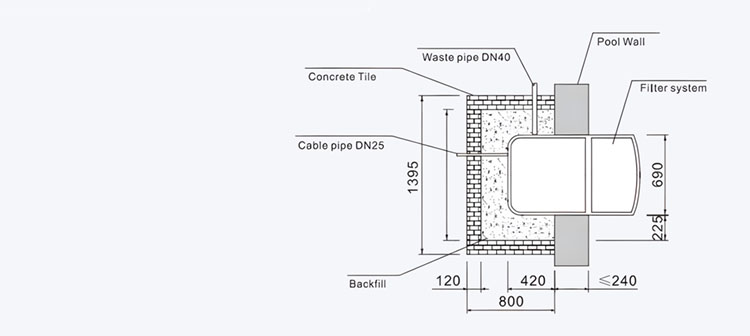

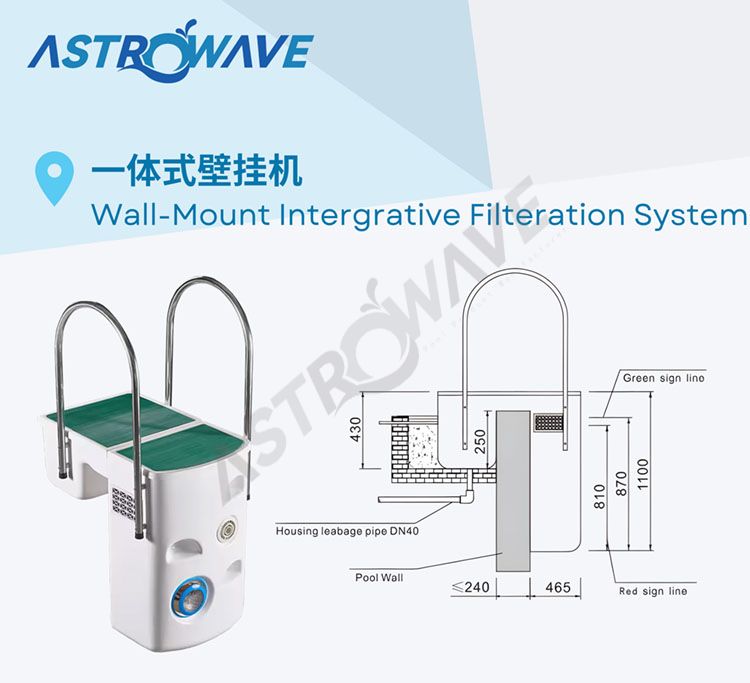

| 1 | Stainless steel handrail |
| 2 | Cable pipe |
| 3 | Transformer and terminal box |
| 4 | Sewage pipe |
| 5 | Cartridge filter |
| 6 | Sterilizer |
| 7 | Injector nozzle |
| 8 | Swimming pool lamp |
| 9 | Water inlet |
| 10 | Water outlet |
| 11 | Hoarding |
| 12 | Concrete |
| 13 | Poolside tile |
| Technical Characteristic | |
| Dimensions | 1120x 690x 1100mm |
| Flow rate | 25m³/h |
| Voltage | 220V/50Hz or 60Hz 5u |
| Precision of filter bag | Not specified |
| Operating noise | <50Db |
| Material | Acrylic |
| Installation | Wall mounted |
| Equipment | |
| Filtration Pump | 1x2HP |
| Filtration basket with bag | 1pc |
| Chlorine feeder | 1pc |
| Light (warm white) | 1x LED 12W/12V |
| Time controller | 1pc |
| Swim jet | 2pcs |
| Handle rail (S.S.) | 2pcs |
| Ozone | 1pc (options) |
| System | |
| Filtration system | 1pc |
| Disinfection system | 1pc |
| Time control system | 1pc |
| Circulation system | 1pc |
| Lighting system | 1pc |
