Water Massage Spa Air Blower – High Pressure Quiet Blower for Hot Tub & Jacuzzi

Name: Water Massage Spa Air Blower – High Pressure Quiet Blower for Hot Tub & Jacuzzi
Brand: Astrowave Pool
Rating: 5.0 (77 reviews)

The TB Series represent a high-performance solution for aquatic bubble generation, designed specifically for pools, spas, and hydro-massage systems. This spa air blower utilizes a high-strength, heat-resistant engineering plastic housing to ensure long-term structural reliability and heat dissipation during continuous duty cycles.

When integrated with massage jets, the system produces a vibrant and invigorated bubble-infused water flow that enhances the hydrotherapy experience. The water massage air blower is engineered to deliver a soft and comfortable airflow, making it an essential component for professional-grade spa and massage pool installations.

The series offers a wide range of power outputs from 200W to 900W, catering to both residential units and large-scale facilities. As a commercial spa air blower, the high-capacity TB900-V2 model provides an air volume of 2.4 m³/min and supports up to 40 jets, meeting the technical requirements of high-traffic aquatic attractions.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Astrowave Pool

Product Description

Water Massage Air Blower for SPA Pool

Product Description

The TB Series represent a high-performance solution for aquatic bubble generation, designed specifically for pools, spas, and hydro-massage systems. This spa air blower utilizes a high-strength, heat-resistant engineering plastic housing to ensure long-term structural reliability and heat dissipation during continuous duty cycles. When integrated with massage jets, the system produces a vibrant and invigorated bubble-infused water flow that enhances the hydrotherapy experience. The water massage air blower is engineered to deliver a soft and comfortable airflow, making it an essential component for professional-grade spa and massage pool installations. The series offers a wide range of power outputs from 200W to 900W, catering to both residential units and large-scale facilities. As a commercial spa air blower, the high-capacity TB900-V2 model provides an air volume of 2.4 m³/min and supports up to 40 jets, meeting the technical requirements of high-traffic aquatic attractions.

Product Features

Dual Impeller Models For Bathtubs, Pools & Spas: Available in single (V1) and dual (V2) impeller options, with the dual impeller version offering improved acoustic performance and a 2-3 dB(A) reduction in high-frequency noise.
Acoustic Optimization: Engineered as a quiet spa blower, the motor and housing design significantly reduce vibration to provide a more pleasant user experience in indoor and outdoor settings.
Advanced Motor Protection: Equipped with a dedicated excitation motor featuring built-in thermal protection (VDE or UL certified), Class F insulation, and an internal fuse for enhanced operational safety.
Durable Brush System: Utilizes enhanced carbon brushes that guarantee a continuous service life of 1000 hours or more, ensuring reliability for the end-user and the spa air blower manufacturer.
Universal Frequency Support: Designed with a 50/60 Hz universal frequency compatibility and various voltage options to meet different regional electrical standards.
Flexible Installation Options: Features multiple outlet connection sizes, including 32mm and 33.5mm, alongside a compact motor version (X-suffix) for installations with limited physical space.

Product Specifications

Model	Power (W)	Current (A)		Max Pressure (kPA)	Air Volume (m³/min)	Noise Level dB(A)	Jets Qty (pc)	Recommended Water Depth (m)
Model	Power (W)	110-120V	220-240V	Max Pressure (kPA)	Air Volume (m³/min)	Noise Level dB(A)	Jets Qty (pc)	Recommended Water Depth (m)
TB200-V2	200	2	1.2	6.0	0.8	<63	6~12	0.3
TB300-V2	300	3	1.7	9.0	1.2	<65	8~16	0.4
TB400X-V2	400	4	2.5	14.0	1.5	<69	12~24	0.6
TB700X-V2	700	7	3.3	22.0	1.85	<71	16~32	0.8
TB400-V2	400	4	2.5	13.0	1.65	<68	12~24	0.6
TB700-V2	700	7	3.3	18.0	2	<70	16~32	0.8
TB900-V2	900	9	4.5	25.0	2.4	<74	20~40	1
TB200-V1	200	2	1.2	8.0	1.1	<64	6~12	0.3
TB300-V1	300	3	1.7	11.0	1.3	<66	8~16	0.4
TB400-V1	400	4	2.5	15.0	1.7	<70	12~24	0.6
TB700-V1	700	7	3.3	20.0	2.2	<72	16~32	0.8
TB900-V1	900	9	4.5	25.0	2.4	<76	20~40	1.0

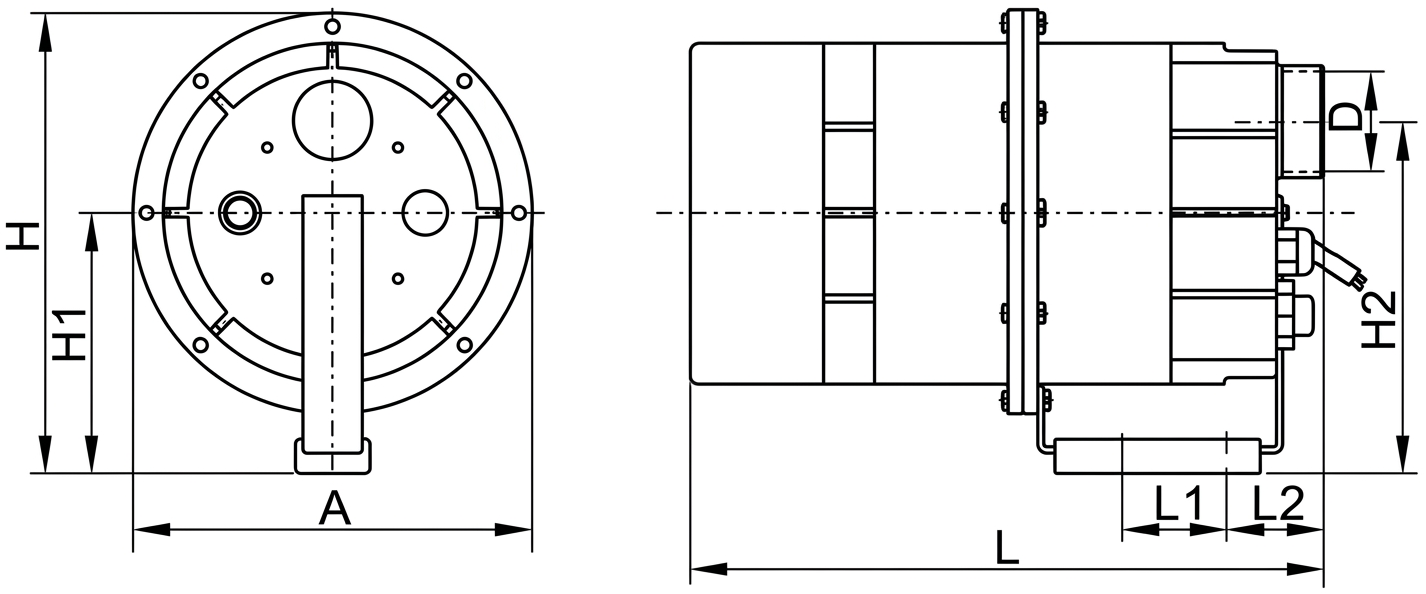

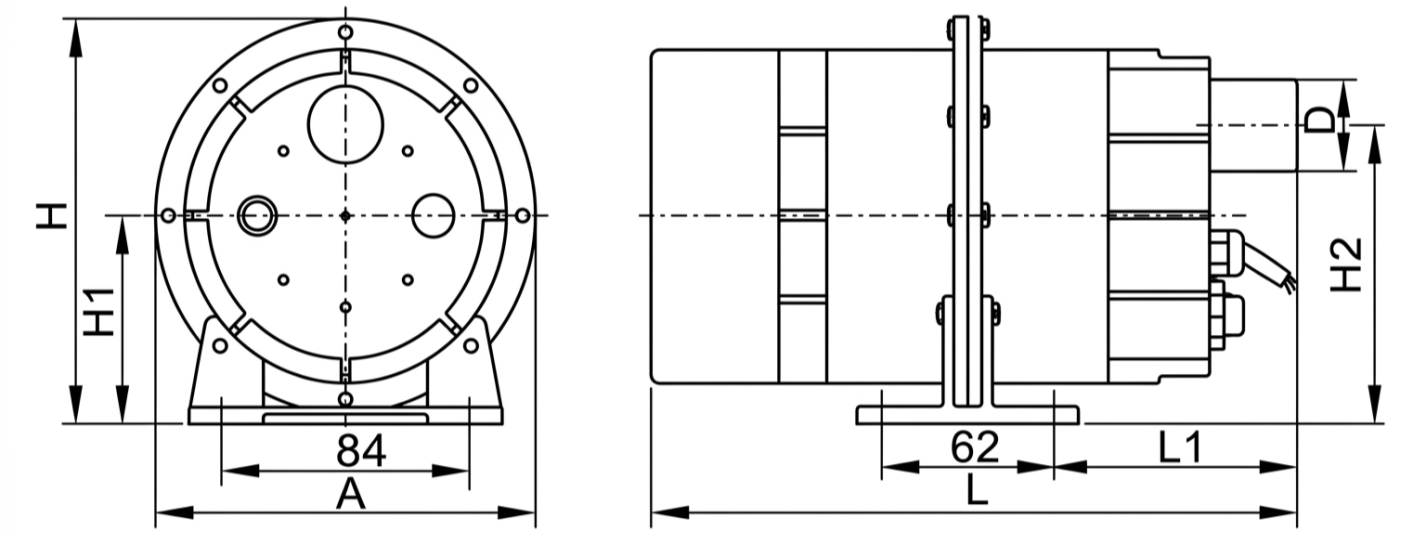

Dimensions

Model	Size(mm)
	smooth outlet			threaded Outlet			L1	A	H	H1	H2
	L	L2	D	L	L2	D	L1	A	H	H1	H2
TB200/300/400X/700X-V2	262	54	Φ32	247	39	G1½	36	Φ138	151	82	114
TB200/300-V1	234	54		219	39		36	Φ138	151	82	114
TB400/700/900-V2	276	50.5		269	43.5		52.5	Φ168	179	95	130
TB400/700/900-V1	249	50.5		242	43.5		52.5	Φ168	179	95	130

Model	Size(mm)
	smooth outlet			threaded Outlet			A	H	H1	H2
	L	L1	D	L	L1	D	A	H	H1	H2
TB200/300/400X/700X-V2	262	89	Φ32	247	74	G1½	Φ138	142	73	105
TB200/300-V1	234	89		219	74		Φ138	142	73	105
TB400/700/900-V2	276	96.5		269	89.5		Φ168	170	87	126
TB400/700/900-V1	249	96.5		242	89.5		Φ168	170	87	126

Application Areas

Luxury residential hydro massage bathtubs utilizing a jacuzzi air blower to generate soft, therapeutic bubble streams.
Outdoor spa systems and relaxation decks requiring a hot tub air blower for consistent and reliable air injection performance.
Large-scale commercial swimming pools and aquatic parks needing a high-volume spa air pump for extensive bubble generation zones.
Health and wellness centers integrating high-pressure air systems to power specialized hydrotherapy massage jets.
Public resort pools requiring durable, heat-resistant blowing equipment for high-occupancy aquatic attractions.

FAQ

How do I select the correct model for my project requirements?

Astrowave Pool provides a wholesale spa air blower selection guide based on motor power (200W-900W), required air volume, and the total number of jets, ranging from 6 to 40 pieces.

What are the performance limits for the most powerful unit?

The TB900-V2 is a high pressure spa air pump capable of reaching a maximum pressure of 25.0 kPA, suitable for water depths up to 1.0 meter in commercial applications.

What is the benefit of the dual impeller (V2) models?

The dual impeller design offers a longer service life and produces significantly less high-frequency noise, making the airflow feel softer and more comfortable for the user.

Does the unit come with standard safety certifications?

Yes, the motor includes built-in thermal protection that is VDE or UL certified, and the entire assembly features Class F insulation with thermal protection (T.I.).

Are there optional control features available?

The units support pneumatic switch control for easy operation and can be optionally equipped with a leakage protection plug (RCD) and a dedicated air switch.
