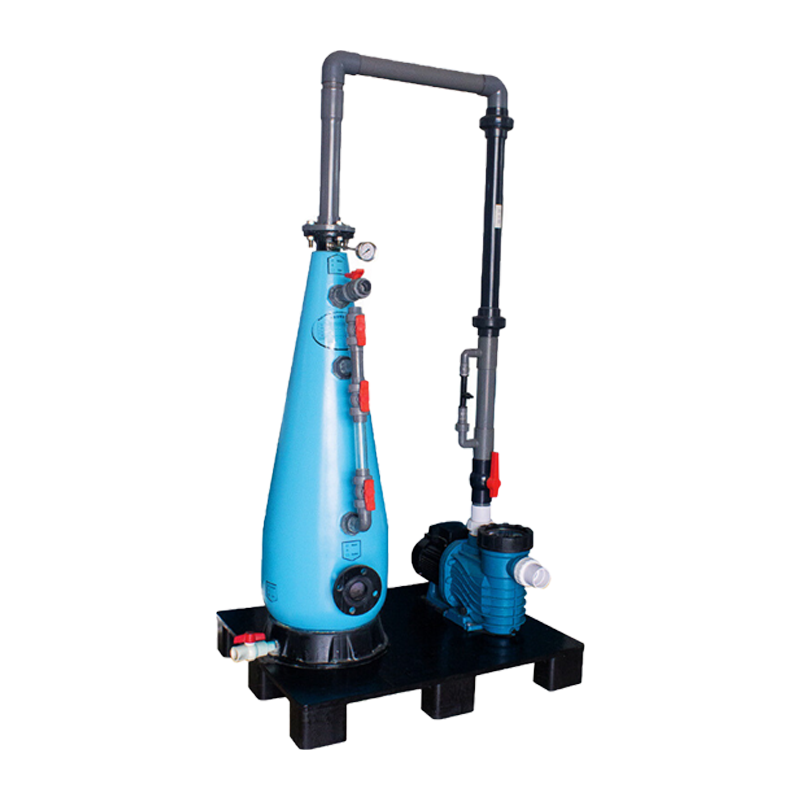

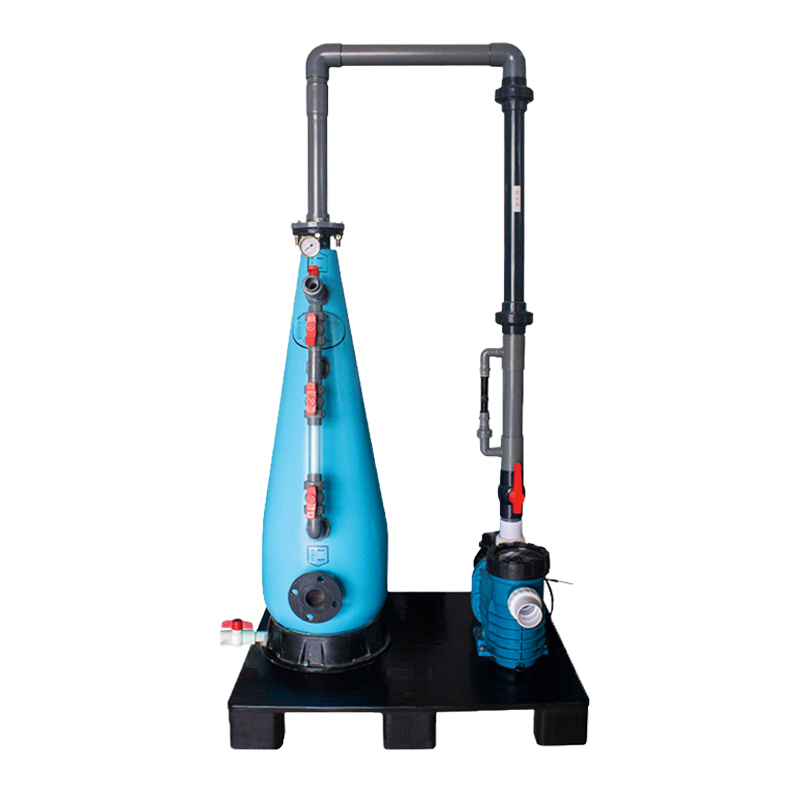

Integrated High-Efficiency Aeration Cone & Pump System for RAS & Hatcheries

Q: How does this unit improve oxygen levels in water?

The system functions as a dissolved oxygen booster by utilizing pressurization and thorough gas-liquid mixing to overcome surface tension and maximize oxygen dissolution efficiency.

The Integrated Aeration Cone–Pump Set provides a compact engineering solution that combines a high-performance aeration cone, a sturdy base, and a matched ASW Series pump. This factory-assembled configuration ensures optimized hydraulic performance and simplifies on-site installation for water treatment operators.

Built specifically for oxygen cone aquaculture, the vessel is constructed from high-quality FRP composite polyester to provide superior chemical and UV resistance. This design ensures safe and durable operation while maintaining the high oxygen dissolution efficiency required for intensive biological loads.

As a comprehensive gas liquid dissolution system, the unit utilizes thorough mixing and pressurization to overcome water surface tension and maximize gas absorption. By regulating internal water flow, the system delivers highly oxygen-saturated water through pure physical processes to support aquatic environments.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Astrowave Pool

Product Description

For maximum gas-liquid mass transfer in aquaculture.

Product Description

The Integrated Aeration Cone–Pump Set provides a compact engineering solution that combines a high-performance aeration cone, a sturdy base, and a matched ASW Series pump. This factory-assembled configuration ensures optimized hydraulic performance and simplifies on-site installation for water treatment operators. Built specifically for oxygen cone aquaculture, the vessel is constructed from high-quality FRP composite polyester to provide superior chemical and UV resistance. This design ensures safe and durable operation while maintaining the high oxygen dissolution efficiency required for intensive biological loads. As a comprehensive gas liquid dissolution system, the unit utilizes thorough mixing and pressurization to overcome water surface tension and maximize gas absorption. By regulating internal water flow, the system delivers highly oxygen-saturated water through pure physical processes to support aquatic environments.

Product Features

Integrated System Design: Combines an aeration cone, base, ASW pump, and matched piping system into a single pre-configured unit.
Plug-and-Play Installation: Factory-assembled configuration minimizes setup time and reduces technical workload during field commissioning.
Material Durability: Constructed with high-quality FRP composite polyester for long-term resistance to UV exposure and chemical degradation.
Hydraulic Optimization: Features ras oxygenation equipment capabilities with matched pump-to-cone dynamics for stable operational performance.
Operational Performance: Utilizes a high efficiency oxygen cone design to ensure oxygen levels reach near-saturation with minimal gas loss.
Maintenance Accessibility: Compact layout allows for streamlined servicing and easy operation within constrained industrial facility footprints.

Product Specifications

Dual-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	Max.Flow Rate			Max. Head
Dual-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	m³/h	LPM	GPM	m	ft
WKP100DS	0.75/1.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	8 16	133 267	35 70	5 13	16 43
WKP150DS	1.1/1.5	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	10 20	167 333	44 88	6 15	20 49
WKP200DS	1.5/2.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	12 24	200 400	53 106	7 16	23 52
WKP300DS	2.2/3.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	12 26	200 433	53 114	8 16	26 52
WKP350DS	2.6/3.5	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	13 28	217 467	57 123	8 17	26 56

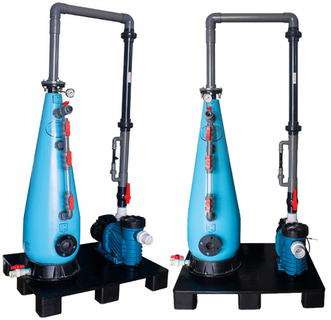

Model	COMPONENT		Applicable Flow Rate			INLET (Union Connection)	OUTLET (Flange)	Base Size (mm)
Model	Cone	Pump	m³/h	LPM	GPM	INLET (Union Connection)	OUTLET (Flange)	Base Size (mm)
AC260410	S400-H1050	ASW150	8	133	35	2" / 63mm	3" / 80mm	1000 x 800 x 140
AC260413	S400-H1300	ASW150	10	167	44	2" / 63mm	3" / 80mm	1000 x 800 x 140
AC260615	S600-H1520	ASW200	15	250	66	2" / 63mm	3" / 80mm	1200 x 800 x 140
AC260717	S700-H1700	ASW200	25	417	110	3" / 80mm	3" / 80mm	1200 x 800 x 140

Dimensions

PICTURE_ONLY

Application Areas

Fish fry cultivation facilities requiring precise oxygen control for fish hatchery aeration during sensitive growth stages.
Industrial wastewater plants utilizing an integrated water oxygenator to manage gas-liquid saturation levels in treatment tanks.
Large-scale public displays using an aquarium gas mixer to maintain healthy dissolved oxygen levels for diverse marine life.
Recirculating aquaculture systems (RAS) needing high-saturation water to support high-density commercial fish farming.
Commercial aquaculture farms implementing oxygenation solutions to maximize gas absorption and stabilize water chemistry.

FAQ

What materials are used in the construction of the aeration cone?

The unit is manufactured from high-quality FRP composite polyester, which offers excellent chemical and UV resistance for long-term durability in outdoor or corrosive environments.

How does this unit improve oxygen levels in water?

The system functions as a dissolved oxygen booster by utilizing pressurization and thorough gas-liquid mixing to overcome surface tension and maximize oxygen dissolution efficiency.

What connection types are supported for the inlet and outlet?

Models feature union connections for the inlet (up to 3"/80mm) and flange connections for the outlet (up to 3"/80mm) to ensure secure integration into existing piping.

Is the unit delivered ready for use?

Yes, this industrial aeration system is factory-assembled as a complete set including the base and piping, allowing for rapid deployment and optimized hydraulic matching.

Does the system require gas injectors or oxygen generators?

The unit is designed for use with booster pumps, jet injectors, and oxygen generators to deliver highly oxygen-saturated water through a physical mixing process.
