A sparkling clean and inviting swimming pool is a testament to diligent care, and at the heart of that clarity lies a robust filtration system. For countless residential and commercial pool operators, the sand filter is the indispensable workhorse that consistently removes impurities from the water. A thorough understanding of your swimming pool filter sand is therefore not just beneficial—it is fundamental to achieving optimal water quality and operational efficiency. This definitive guide from Astrowave Pool will delve into the mechanics of sand filtration, the critical maintenance procedures of backwashing and deep cleaning, and the indicators for when your filter media requires replacement.
The principle behind a sand filter is a masterful blend of simplicity and effectiveness. Your pool's pump is the engine of the system, drawing water from the pool and directing it under pressure into the top of the filter tank. Inside, the water is forced to percolate downward through a precisely graded bed of high-purity filter sand. This process is known as depth filtration. The sharp, angular edges of the individual sand grains act as a microscopic sieve, effectively trapping suspended dirt, organic debris, oils, and other contaminants. Once stripped of these impurities, the purified water passes through collector laterals at the bottom of the tank and is returned to the pool, ensuring a continuous cycle of clean, safe water.

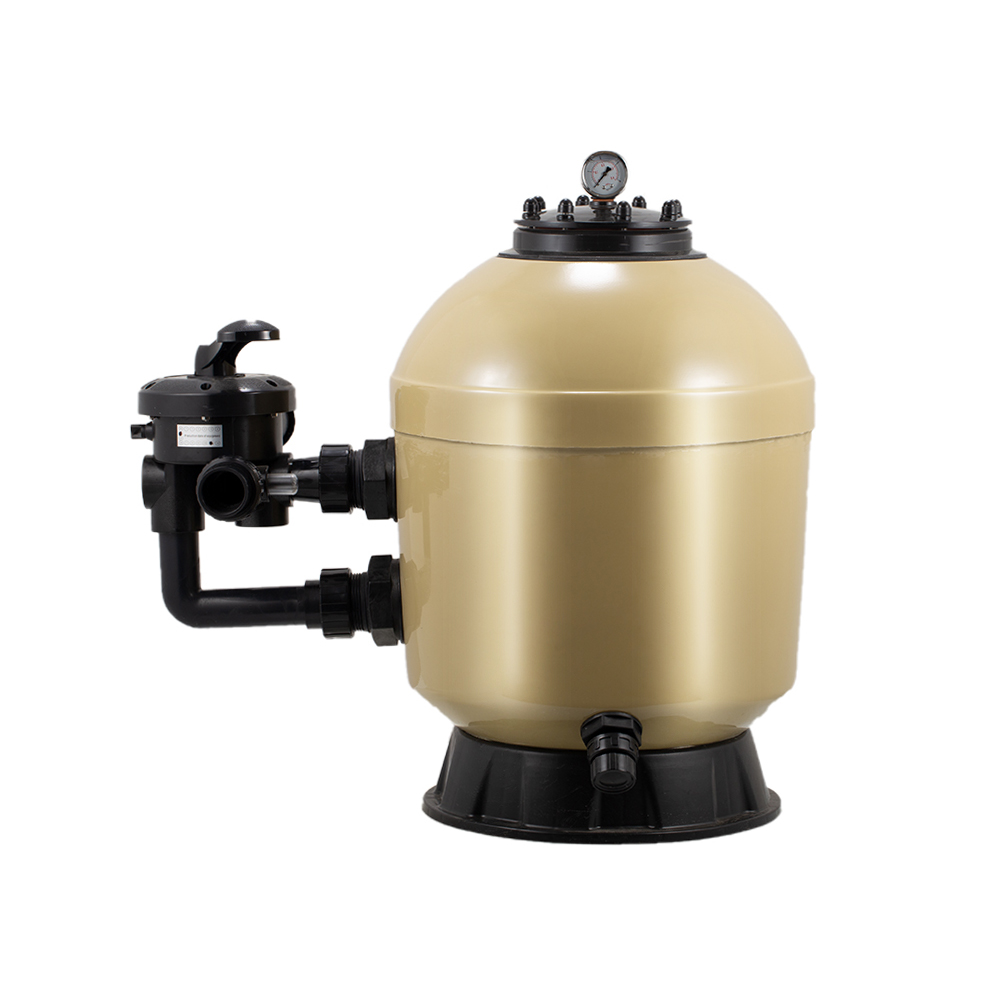

A professional sand filter is an assembly of several critical components engineered to work in unison. Familiarity with these parts is key to effective troubleshooting and maintenance. A high-quality filter system, such as a Astrowave's Fiberglass Side-mount Sand Filter, is constructed with durable, corrosion-proof materials to ensure a long service life.
Part Name | Description |
|---|---|
Filter Tank | The primary vessel, typically made of fiberglass or thermoplastic, designed to hold the filter media and withstand the system's operating pressure. |
Multiport Valve | The control hub that directs water flow for various functions, including FILTER, BACKWASH, RINSE, WASTE, RECIRCULATE, and CLOSED. |
Pressure Gauge | This crucial instrument measures the internal pressure of the filter tank in PSI or bar, indicating when the filter is clogged and requires cleaning. |
Standpipe | The central vertical pipe that ensures even water distribution over the sand bed via the diffuser and collects filtered water from the laterals below. |
Laterals | A set of slotted, finger-like tubes at the base of the standpipe that allow clean water to exit while retaining the sand media within the tank. |
The primary indicator that your sand filter requires cleaning is the pressure gauge. First, establish a baseline pressure reading. Immediately after a thorough backwash or the installation of new sand, run the pump and record the PSI (pounds per square inch) shown on the gauge. This is your 'clean' operating pressure. As the filter traps debris, the flow becomes restricted, causing pressure inside the tank to build. The industry standard is to perform a backwash when the pressure gauge reads 8-10 PSI above your established clean baseline. For instance, if your clean pressure is 15 PSI, you should initiate cleaning when it reaches 23-25 PSI. Regular monitoring of the gauge is a key discipline in proactive pool maintenance.
Backwashing is the standard procedure for cleaning a sand filter. This ingenious process temporarily reverses the water flow, forcing it up through the sand bed to dislodge trapped contaminants and flush them out through a waste line.
CRITICAL SAFETY NOTE: Always switch off the pool pump at the circuit breaker before adjusting the multiport valve. Changing the valve's position while the pump is active can cause severe damage to the internal gasket, leading to leaks and costly repairs.
Power Down: Turn off the pool pump completely.
Connect Hose: Securely attach the backwash hose to the WASTE or BACKWASH port on the multiport valve. Position the discharge end of the hose in a location suitable for draining chlorinated, dirty water, observing any local regulations.
Set to BACKWASH: Firmly depress the multiport valve handle and rotate it to the BACKWASH position.
Power Up: Turn the pump back on. You will see cloudy water being expelled from the backwash hose.
Run the Cycle: Allow the backwash to run for 2-5 minutes, or until the water runs clear. Many multiport valves have a sight glass for easy monitoring.
Power Down Again: Turn off the pump.
Set to RINSE: Depress the valve handle and rotate it to the RINSE position. This crucial step resettles and compacts the sand bed, preventing fine sand particles from being blown back into the pool.
Run Rinse Cycle: Turn the pump on for 30-60 seconds.
Final Power Down: Switch the pump off one last time.
Return to FILTER: Set the valve back to its normal FILTER position.
Restart and Record: Turn the pump on to resume normal operation. Note the new, lower pressure on the gauge—this is your updated 'clean' baseline.
While backwashing removes loose debris, it cannot always eliminate oils, lotions, and mineral scale that can bind sand grains together. This leads to a condition known as 'channeling,' where water carves paths through the sand bed, bypassing the filtration media entirely and resulting in poor water quality. If you find yourself backwashing more frequently or if water clarity declines, a chemical deep clean using a specialized sand filter cleaner may be necessary.
Over years of service, the constant friction of water wears down the sharp edges of the sand particles, making them smooth, rounded, and less effective. For this reason, the swimming pool filter sand should be completely replaced every 3-5 years. This process involves draining the tank, removing all the old sand, inspecting the laterals for damage, and refilling with the correct grade and quantity of new filter sand. When replacing an entire filter system, investing in a modern, efficient unit like the Fiberglass Side-mount Sand Filter with Easy-Opening Transparent Lid can improve performance and simplify future maintenance.
The primary cleaning method is backwashing, performed when the pressure is 8-10 PSI above normal. The process involves turning off the pump, setting the valve to BACKWASH, running the pump until water clears, then setting to RINSE for 60 seconds before returning to FILTER. An annual chemical cleaning is recommended, and the sand itself should be replaced every 3-5 years.
You must use only high-purity #20 silica sand specifically graded for pool filters. It has a grain size of 0.45 to 0.55 mm. Using play sand or builder's sand will clog the system and can cause severe damage to the filter's laterals.
Absolutely. High-performance sand filters are a staple in the commercial pool industry due to their reliability and robust filtration capabilities. Astrowave Pool offers a range of durable sand filters designed to meet the heavy demands of commercial applications.
Effective filtration is the cornerstone of pool safety and enjoyment. Utilizing high-quality swimming pool sand filter parts and the correct filtration media ensures your system operates at peak performance. When it is time to invest in new equipment or source replacement components, partnering with a trusted industry expert is paramount. Astrowave Pool provides a comprehensive portfolio of reliable, professional-grade pool equipment engineered for durability and efficiency. Whether you require a new sand filter, pump, or other vital components, our products deliver the superior performance needed to maintain pristine water quality.
